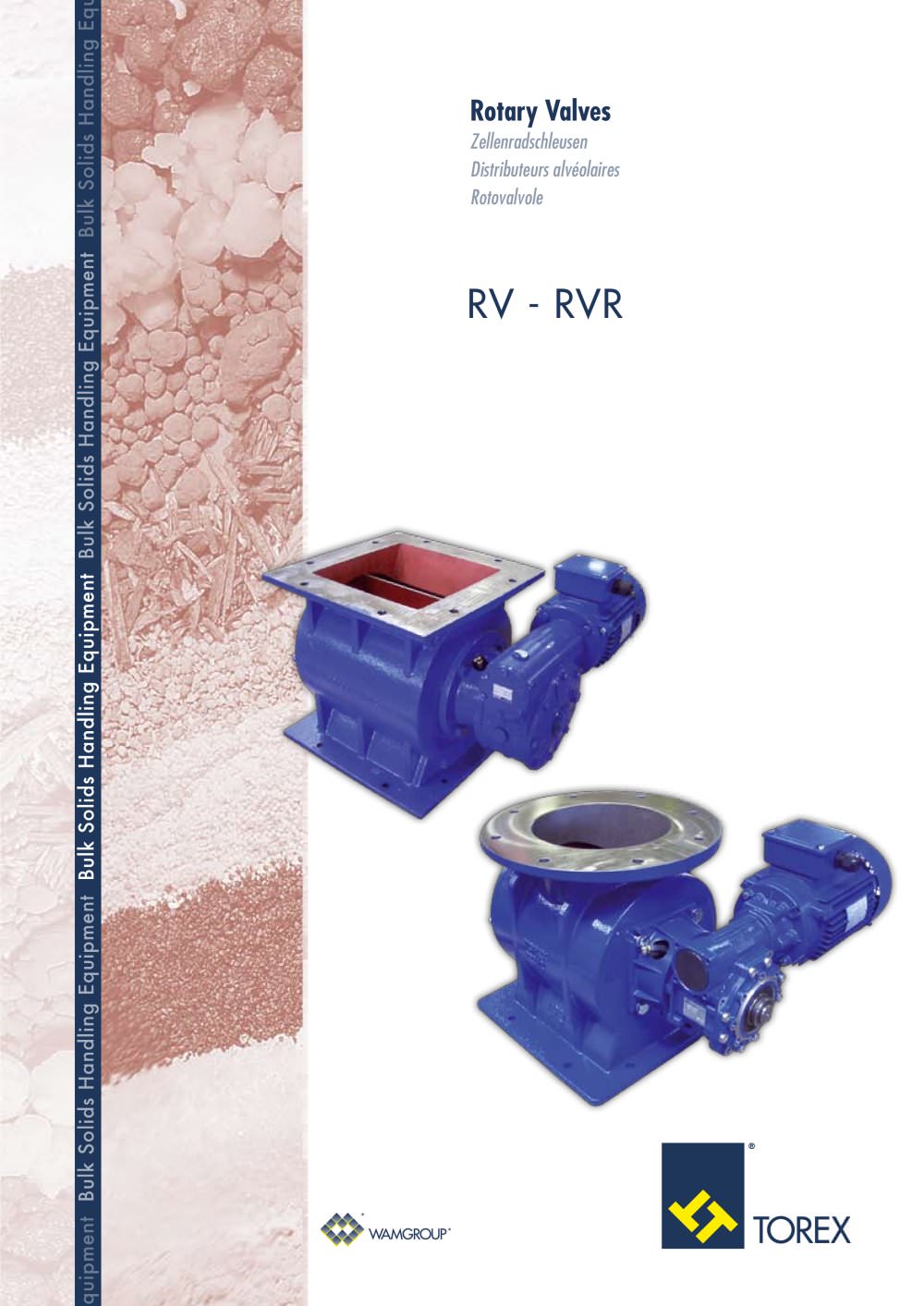

Rotary Valves Zellenradschleusen Distributeurs alvéolaires Rotovalvole RV - RVR

 Open the catalog to page 1

Features and Advantages - Capacity: 2.2 to 19.5 litres per revolution (0.08 to 0.7 cu ft per revolution) - Easy access to internal mechanical parts - Sturdy compact structure - Small footprint - Drive unit mounted directly on shaft without further bearing assembly or coupling - Square or round flanges and inlet spouts - Total compatibility with WAM® standard of flange holing on inlets and outlets - Different materials and treatments available depending on material handled Description RV and RVR gravity Rotary Valves consist of a cast iron or stainless steel tubular body, a horizontal rotor...

 Open the catalog to page 2

Bare Shaft Valves Zellenradschleusen mit freiem Wellenzapfen Distributeurs alvéolaires à arbre nu Valvole ad albero nudo RVR Round Flange Rundflansch Bride ronde Flangia tonda E A D C A G A B S S K b 0.05 A f 0.05 C S A1 A1 B TYPE RV/RVR 02 265 285 220 170 193 40 10 RV/RVR 05 320 340 280 250 RV RVR 330 214 237 32 h7 13 RV/RVR 10 375 406 360 238 308 50 RV/RVR 20 440 445 455 275 335 15 A A1 (RVR only) B C D E 10*8*30 10*8*40 G S K D H F Rotary Valves with Direct Drive Zellenradschleusen mit Direktantrieb Distributeurs alvéolaires avec motorisation directe Valvole motorizzate direttamente con...

 Open the catalog to page 3

F D H Valves With Variable Speed Drive Zellenradschleusen mit mechanischem Regelantrieb Distributeurs alvéolaires avec moteur à vitesse variable Valvole con motovariatore meccanico TYPE RV/RVR 02 VM 323 357 393 421 419 504 0,37 22-4 0,75 RV 320 RVR 345 290 305 408 456 RV/RVR 05 VM RV/RVR 10 VM RV/RVR 20 VM D* F* H* Rating kW Inst. kW Puissance kW Potenza kW RPM min-1 Tours/min Giri/min Valves With Geared Motors Zellenradschleusen mit Getriebemotor Distributeurs alvéolaires avec motoréducteur Valvole ad albero nudo D F H TYPE RV/RVR 02 30 rpm 350 0.5 RV/RVR 02 20 rpm 318 RV/RVR 05 30 rpm 294...

 Open the catalog to page 4

B = = A = = E = = D E B F = = = = = = E F A E = = = = D = = = = RV02 RV05 RV10 RV20 Standard Flange Dimensions of Rotary Valves With Square Inlet/Outlet Standard-Flanschabmessungen von Zellenradschleusen mit quadratischem Ein- und Auslauf Dimensions standard distributeurs alvéolaires à bride d’entrée/sortie carrée Dimensioni standard rotovalvole con flangia di ingresso/uscita quadra B B B B A A E C C D C E C = = = = = = = = = = = = = = = = = = = = = = = = RV02 RV05 RV10 RV20 D Rotary Valves With WAM® Standard Square Inlet/Outlet Flange Zellenradschleusen mit quadratischem Ein- und...

 Open the catalog to page 6

STANDARD RVR 10 RVR 20 A1 K Ø a M Ø A1 K RVR 02-05 A1 Ø K M a a M Standard Flange Dimensions of Rotary Valves With Round Inlet Standard-Flanschabmessungen von Zellenradschleusen mit rundem Einlauf Dimensions standard distributeurs alvéolaires à bride d’entrée ronde Dimensioni standard rotovalvole con flangia di ingresso tonda WAM XKF 321 Drilling WAM XKF 351 Drilling WAM XKF 341 Drilling WAM XFK 371 Drilling XKF A1 K Ø a A1 M K Ø a M A1 K Ø M A1 Ø K M a WAM® Compatible Round Inlet Flanges WAM® kompatible runde Einlaufflansche Dimensions distributeurs alvéolaires à bride d’entrée ronde...

 Open the catalog to page 7

Internally Chrome-Plated Casing Innen verchromtes Gehäuse Corps chromé intérieurement Corpo cromato internamente Teflon®-Coated Rotary Valve Zellenradschleuse mit Teflon®-Auskleidung Distributeur alvéolaire tefloné Rotovalvola teflonata Nickel-Plated Rotary Valve Vernickelte Zellenradschleuse Distributeur alvéolaire nickelé Rotovalvola nichelata Rotor With Bevelled Blades Zellenrad mit abgeschrägten Kanten Rotor à pales arrondies Rotore con pale smussate Air-Purged Seals Wellenabdichtungen mit Sperrspülung Etancheités fluxées à air Tenute flussate ad aria Rotation Indicator...

 Open the catalog to page 8

TOR. 310 TOR. 500 TOR. 800 TOR. 900 TOR. 941 TOR. 600 TOR. 320 TOREX S.p.A. Via Canaletto, 139/a I - 41030 S. Prospero s/S. (MO) - ITALY Tel. : +39 059 80 80 811 Fax : +39 059 90 82 04 torex@torex.it www.torex.it TOR. 310 07/08 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre Production - Altra Produzione UNI EN ISO 9001-2000 Certified Company
