Pressure Relief & Control Valves VHS Brochure

Pressure Relief & Control Valves VHS Brochure

Product catalog summary

Overview: The document provides technical specifications and applications for VHS Pressure Relief & Control Valves, designed to manage pressure within silos, bins, hoppers, or containers. These valves prevent both excess and negative pressure, safeguarding personnel and equipment.

Specifications: The VHS273 model operates within a pressure range of -50 mm H2O to 1000 mm H2O. It is available in carbon steel or stainless steel (304) for parts in contact with the product. The weather protection cover is made of stainless steel, and gaskets are tailored to the application.

Applications: These valves are mounted on top of storage units to prevent dangerous pressure conditions that could harm people or damage structures. They are essential for maintaining operational safety by automatically adjusting to pressure changes during filling and emptying processes.

Technical Advantages: The valves offer rapid restoration of normal conditions, handle flow rates up to 5000 m3/h, and minimize the risk of crust or block formation inside the valve. They are designed for easy maintenance and are ideal for enclosed environments with limited dust emissions, contributing to reduced environmental pollution.

Operational Details: The valves function by opening to release pressure or vacuum when air input and output are not balanced, thus preventing potential damage to the silo. Dust emissions can be managed through a duct connected to the outlet pipe.

Certifications: The product is manufactured by WAM S.p.A., a company certified under UNI EN ISO 9001-2000 standards.

Catalog excerpts

Pressure Relief & Control Valves VHS Brochure-1

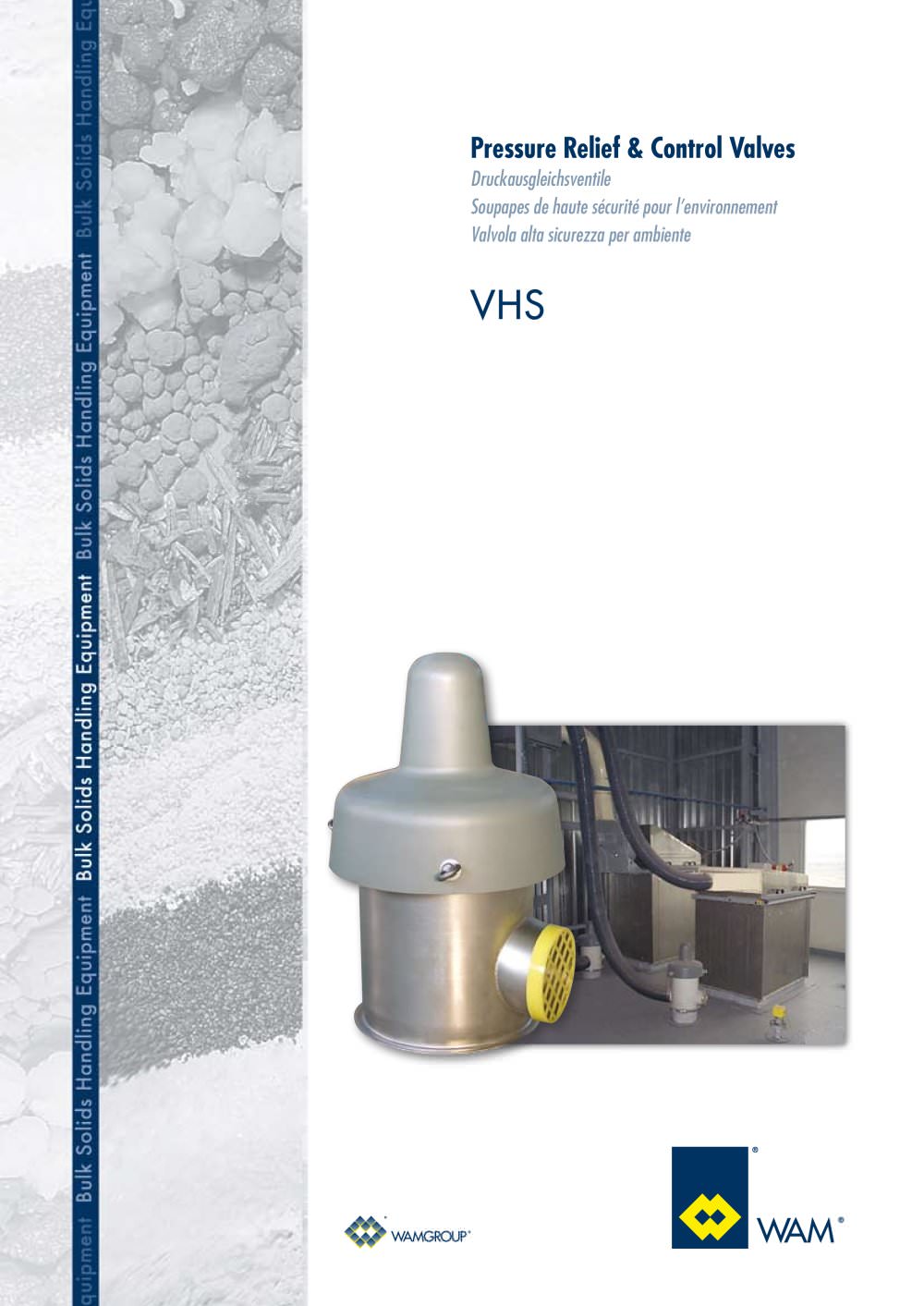

Pressure Relief & Control Valves Druckausgleichsventile Soupapes de haute sécurité pour l’environnement Valvola alta sicurezza per ambiente VHS

Open the catalog to page 1

Pressure Relief & Control Valves VHS Brochure-2

-50 mm H2O* Negative Pressure Unterdruck Dépression Depressione TYPE VHS273 Excess Pressure Überdruck Surpression Sovrapressione 300 ~ 1000 mm H2O* 22 kg Dimensions in mm 1 Carbon Steel Normalstahlausführung Acier normal Acciaio al carbonio 2 304 st.st. Edelstahl 1.4301 INOX 304 AISI 304 * Calibration by Manufacturer: Werksseitig tariert auf: Calibrée par le costructeur à: Tarata dal costruttore a: -50 mm H20 500 mm H20 Application Mounted on top of silos, bins, hoppers or containers, VHS Pressure Relief & Control Valves avoid both excess and negative pressure inside the container, thus preventing...

Open the catalog to page 2

Pressure Relief & Control Valves VHS Brochure-3

Pressure Relief Valve For a correct operation the application of a pressure relief valve is necessary in order to discharge possible pressure inside the silo, as well as negative pressure. In fact, there is pressure once you fill the silo and negative pressure when you empty it. lf air input and output are not correct the valve opens (one way or the other) and avoids possible silo damage. The dust emission can be channeled through a duct which is connected with the outlet pipe. Druckausgleichsventil Für einen problemfreien Anlagenbetrieb ist der Einsatz eines Sicherheitsventils unbedingt erforderlich,...

Open the catalog to page 3

Pressure Relief & Control Valves VHS Brochure-4

WAM. 02536 07/08 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre production - Altra produzione UNI EN ISO 9001-2000 Certified Company WAM. 00515 WAM. 03021-25-31 WAM. 03041 WAM. 03510 WAM. 03010 WAM. 02531 WAM S.p.A. Via Cavour, 338 I - 41030 Ponte Motta Cavezzo (MO) - ITALY Tel: +39 0535 61 81 11 Fax: +39 0535 61 82 26 [email protected] www.wamgroup.com WAM. 02515
