Pipe Couplings GT Brochure

Catalog excerpts

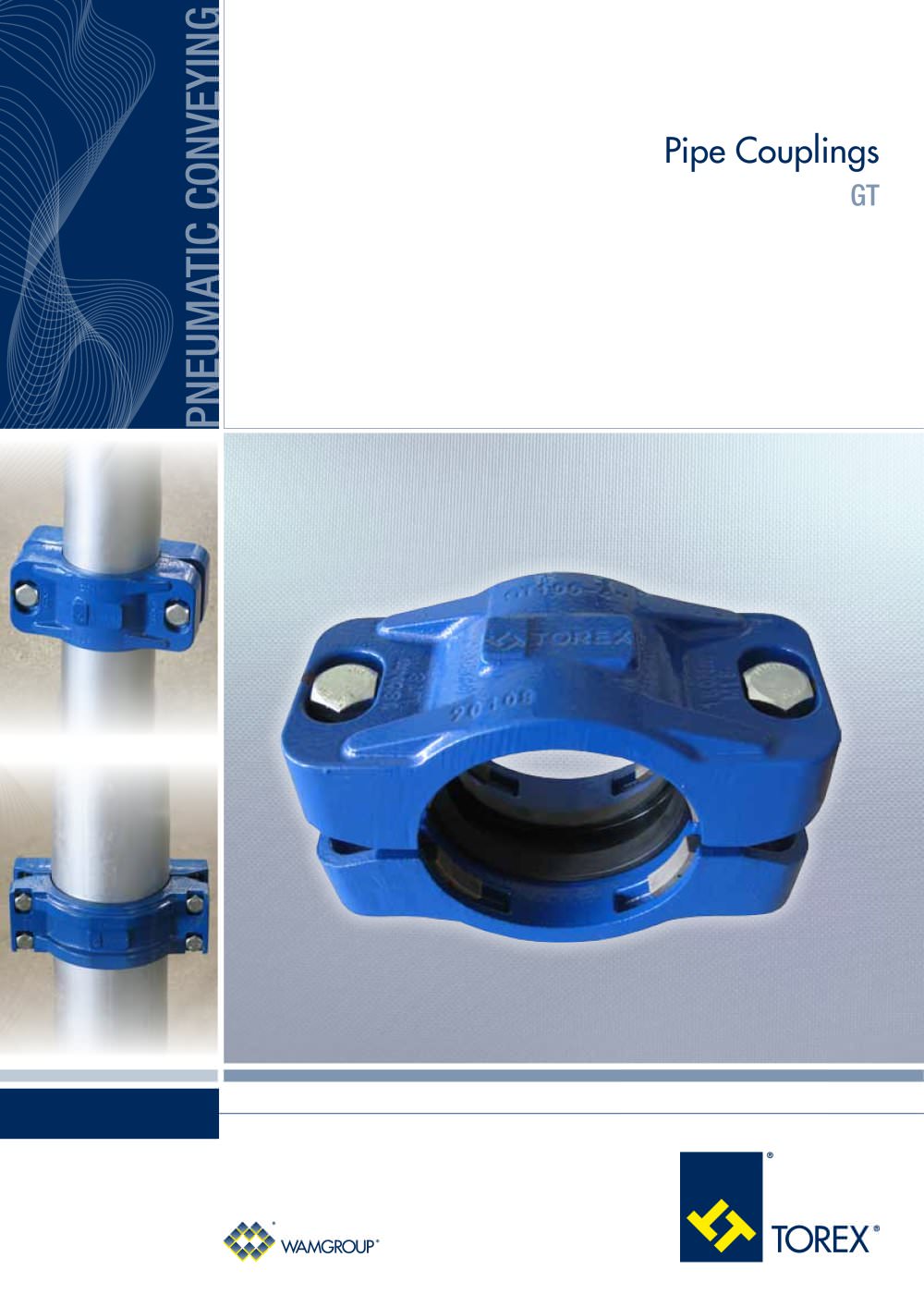

PNEUMATIC CONVEYING Pipe Couplings GT

 Open the catalog to page 1

GT Couplings join up two plain pipe ends on the same horizontal axis in a safe, quick and rigid way. The jaws integrated in the casing assure a solid grip and prevent the pipes from being pulled out. GT Couplings are suitable for both mild steel and stainless steel pipes. Perfect sealing is assured by gaskets made from EPDM or food-grade SILICONE. THE QUICKEST, EASIEST AND MOST ECONOMIC WAY TO JOIN UP PIPES Features - Semi-casing design made from cast iron in conformity with EN GJS 500-7 EN 1563; - Jaws made from hardened carbon steel; - Gaskets available in EPDM or food-grade SILICONE; -...

 Open the catalog to page 2

Benefits 1 2 3 4 5 6 6 Quick and simple to install, reduces installation costs versus welded junctions; Safer fitting operation than welding since the GT Coupling can be assembled without usage of any special heavy-duty tools (only a torque wrench required); More flexible than welding as GT Couplings are detachable and re-usable enabling easy and quick modifications of the duct line (can be re-used in other pneumatic lines); No costly pipe end preparation (simple plain pipe ends); No pressure drop along the pneumatic conveying line; GT Couplings can be rotated to provide easy access to nuts...

 Open the catalog to page 3

GT Pipe Couplings are utilised to join plain pipe ends of mild steel or stainless steel ducts of pneumatic conveying systems. Application TOR.03510.70.EN 04/10 Rights reserved to modify technical specifications. www.wamgroup.com UNI EN ISO 9001 - 2000 Cet i f ied Companies

 Open the catalog to page 4
