Micro-Feed Screws SPL- SPS Brochure

Micro-Feed Screws SPL- SPS Brochure

Product catalog summary

Overview: The document provides technical specifications and operational details for SPL and SPS-type Micro-Feed Screws, which are auxiliary screws used in conjunction with larger main screw feeders. These systems are designed to achieve high accuracy in material feeding by stopping the main screw feeder before the desired feed rate is reached, allowing the micro-feed screw to deliver the remaining material precisely.

Specifications:

Low rotation speed for SPS models.
Constructed with anti-wear materials and heavy-duty flighting.
No outlet end bearing for SPS models.
Includes an inlet hopper and offers a wide range of applications.

Functionality: The micro-feed screws can handle various materials, including highly abrasive products, ensuring high feeding accuracy and easy maintenance.

Benefits:

High precision in dosing.
Easy maintenance and inspection.

Technical Features:

Reduced speed direct drives.
Screws with reduced diameter for full bore through outlet.
Easy inspection and maintenance access.

Accessories: Options include butterfly valves for material interception and protective baffle plates, with anti-wear coatings available for flight edges.

Dimensions and Models: The document includes detailed dimensions and specifications for various models, such as SPL090193 and SPS075168, with specific measurements and power requirements listed.

Contact Information: WAM S.p.A., located in Ponte Motta, Cavezzo, Italy, provides further product information and support.

Catalog excerpts

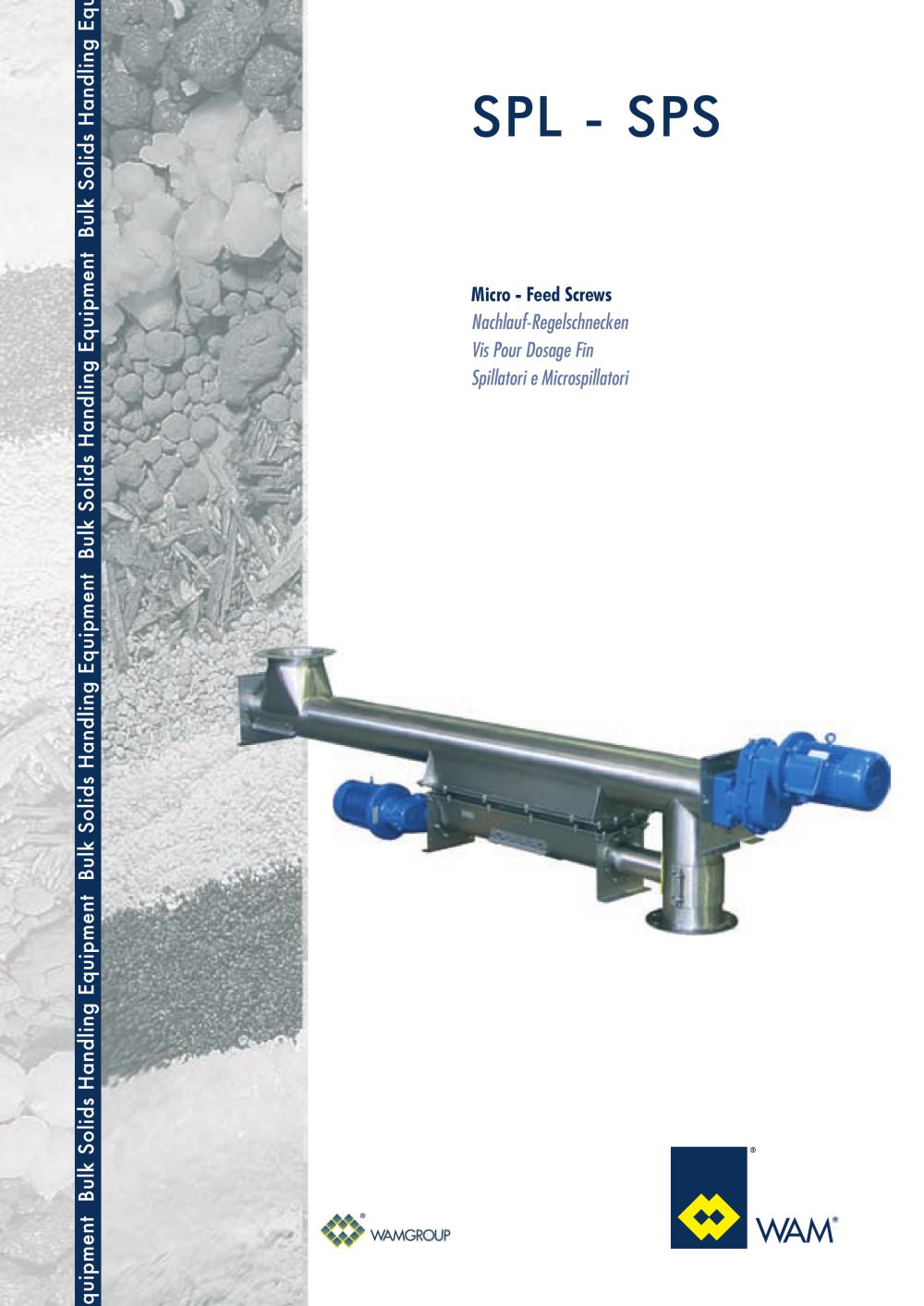

Micro - Feed Screws Nachlauf-Regelschnecken Vis Pour Dosage Fin Spillatori e Microspillatori SPL - SPS

Open the catalog to page 1

SPL and SPS-type Micro-Feed Screws are auxiliary screws combined with a larger main screw feeder. Before reaching the set feed rate the main screw feeder is stopped by a proximity switch to allow the Micro-Feed Screw, which is flanged beneath an opening in the pre-outlet section of the main screw feeder pipe, to feed the missing quantity of material with high accuracy through the outlet of the main screw feederinto the weigh hopper. SPL und SPS Nachlaufregelschnecken werden als Zusatzgeräte in Verbindung mit einer Hauptdosierschnecke eingesetzt. Vor Erreichen der gewünschten Dosiermenge wird...

Open the catalog to page 2

Accessories - Zubehör - Accessoires - Accessori SPS Ø COCLEA PRINCIPALE R M U G H F N T A C A X ØQ ØOUTLET=ØSCREW L J D X E N T G M U L J H Ø MAIN SCREW Ø HAUPTSCHNECKE Ø VIS PRINCIPALE B X - X VIEW 230 388.5 265 75 42 200 75 175 158 230 410 265 75 89 291 140 175 / 230 440 265 75 89 291 140 175 / 260 545 361 90 114 306 154 175 / 260 545 361 90 114 306 154 175 285 260 545 361 90 114 240 154 175 285 L M N P Q R S T U (*) 500 4 500 4 500 4 500 4 500 4 500 4 A B 237 491 140 450 334 588 140 450 334 588 160 500 396 650 180 550 396 650 220 550 396 650 290 550 C D E F G 158 295 273.5 130 325 165 400...

Open the catalog to page 3

WAM. 02525 06/05 Rights reserved to modify technical specifications WAM S.p.A. Via Cavour, 338 I - 41030 Ponte Motta Cavezzo (MO) - ITALY Tel.: +39 0535 61 81 11 Fax: +39 0535 61 82 26 [email protected] www.wamgroup.com WAM. 00505 WAM. 01550 WAM. 02515 MAP. 04 Further Products - Weitere Produkte - Autre production - Altra produzione WAM. 03010 WAM. 03021-25-31 WAM. 03505.02

Open the catalog to page 4
