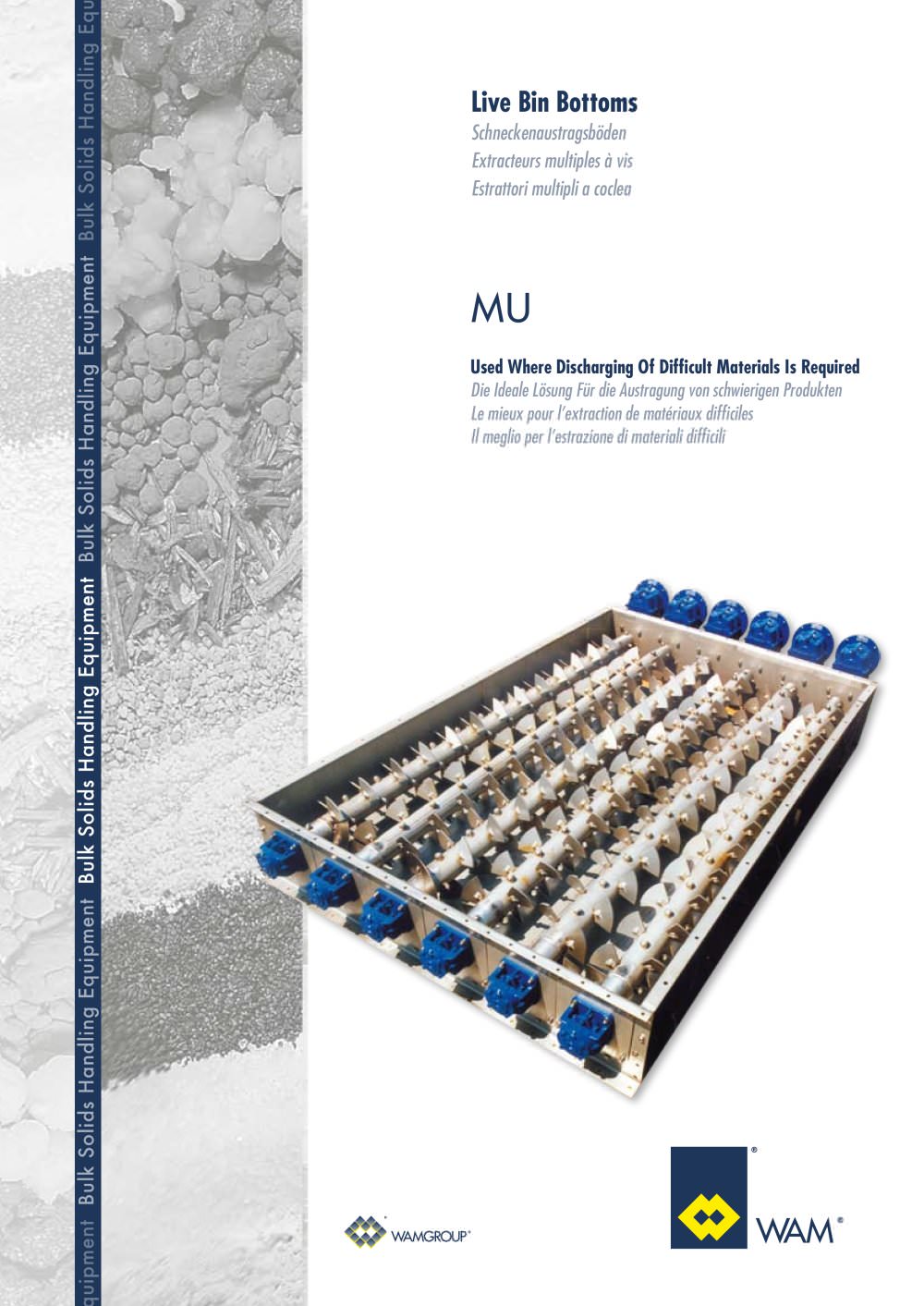

Live Bin Bottoms MU Brochure

Live Bin Bottoms MU Brochure

Product catalog summary

Overview: This document outlines the technical details and advantages of the MU Live Bin Bottoms system, which is engineered for discharging challenging materials from silos, hoppers, and other containers. It is suitable for a variety of materials, including milling products, non-homogeneous products, bridging materials, pasty materials, and pharmaceutical products.

Technical Specifications: The system features a fabricated trough with a top flange designed to fit bin outlets. It includes 2 to 6 screws with variable pitch flights, ensuring a constant feed rate and a large extraction area. The design prevents bridging and segregation, allowing efficient handling of difficult products.

Benefits: The MU Live Bin Bottoms offer several key benefits, such as consistent product discharge, a large extraction area, prevention of bridging and segregation, robust construction, high operational safety, and a self-cleaning effect, making it ideal for handling difficult materials.

Construction Details: The system is built with heavy-duty mild steel troughs of modular length. It includes end bearings available in flange or foot-mounted types, with high-resistance cast-iron casing, roller bearings, rotary shaft seals, and grease nipples. The flights are made of mild steel and come in helicoid or paddle types with various diameters and pitches.

Optional Features: The system can be customized with additional inlets and outlets, safety flaps with micro-limit switches, and stainless steel versions (304 and 316) upon request.

Applications: The MU Live Bin Bottoms are particularly effective for milling products (e.g., flour, bran, chalk), non-homogeneous products (e.g., wood chippings, paper scrap), bridging materials (e.g., sawdust, soy meal), pasty materials (e.g., biological sludge, process waste), and pharmaceutical products (e.g., mold residues).

Contact Information: For more information, contact WAM S.p.A., Via Cavour, 338, I - 41030 Ponte Motta, Cavezzo (MO) - ITALY. Tel: +39 0535 61 81 11, Fax: +39 0535 61 82 26, Email: [email protected], Website: www.wamgroup.com

Catalog excerpts

MU Live Bin Bottoms are the result of decades of experience in rugged working conditions. In many cases they represent the only solution to discharge poorly flowing materials from silos, hoppers or other containers. MU Live Bin Bottoms are particularly suitable for the following materials: - Milling products (flour, bran, chalk etc.); - Non homogeneous products (wood chippings, paper scrap etc.); - Bridging materials (sawdust, soy meal, by-products etc.); - Pasty materials (biological sludge, process waste, etc.); - Pharmaceutical products (mold rsidues). Tecnical details: Fabricated trough with...

Open the catalog to page 2
