WAMGROUP S.p.A

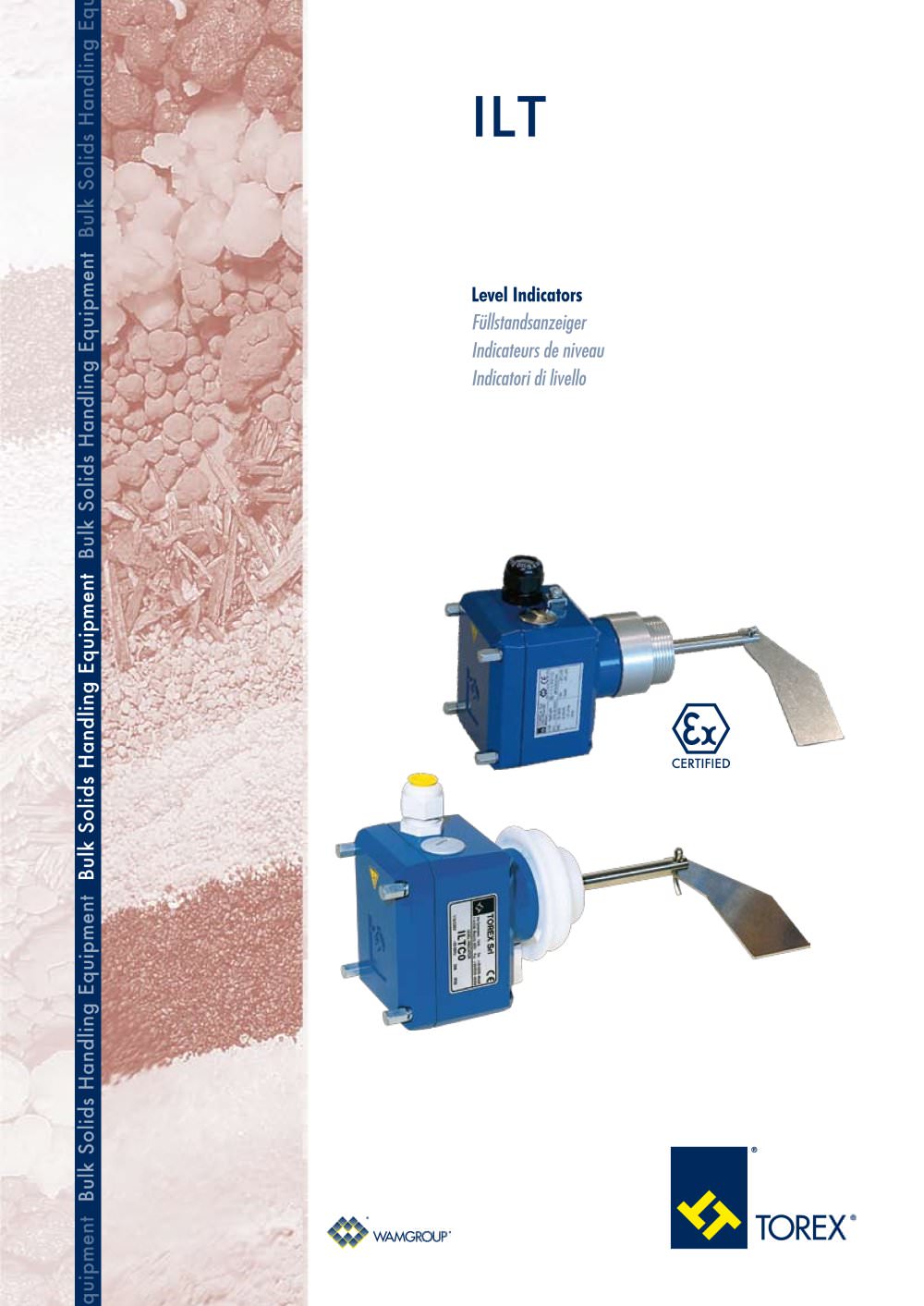

Level Indicators ILT Brochure

Level Indicators ILT Brochure

Product catalog summary

Overview: The ILT Bin Level Indicators are designed for electric signaling through rotary action to indicate minimum or maximum material levels in bins, hoppers, or silos. They are used for materials with a bulk density ranging from 0.5 t/m³ to 2 t/m³.

Functionality: The paddle of the ILT indicator remains stationary when material is present. Once the material level drops below the paddle radius, the paddle rotates, activating other system components. These indicators can be mounted on the top or side of the container.

Specifications:

Mechanical Data: The enclosure is rated IP 65. The process connection threads are G1 1/4”, G1 1/2”, and G2 1/2”, made of plastic. The vane shaft and measuring vane are made of stainless steel. The system includes a friction clutch to protect the gearing from the measuring vane's impact. The pickup delay is approximately 1.3 seconds, and the sensitivity is adjustable in three positions. The vane speed is 1 r.p.m.
Electrical Data: The mains voltage options are 115V/230V, 50-80 Hz, or 24V/48V, 50-60 Hz, or 24V DC, with a tolerance of +10%/-15%. The installed load is 3 VA (3 W). The connection terminal supports up to 1.5 mm². The screwed cable gland is PG 13.5” plastic. The signal output is a floating microswitch with AC max. 250 V, 2 A, 500 W (Cos j=1) and DC max. 300 V, 2 A, 60 W. The connection diagram for AC is on a printed circuit, and for DC, it is inside the lid. The protection class is I.
Operating Conditions: The maximum container excess pressure is 0.8 bar. The temperature inside the vessel ranges from -20°C to 80°C, and the ambient temperature inside the casing ranges from -20°C to 70°C.

Installation and Accessories: The correct mounting requires the screwed cable gland to point downward. Accessories include a spring paddle and a lamp.

Additional Information: Two types of indicators are commonly used, one for maximum level and one for minimum level, screwed into pipe sockets with different threads (standard 1”) welded on the silo wall. They are available in voltages of 24/48 V, 110/230 V, 50/60 Hz, and 24 V DC.

Catalog excerpts

ILT L=133 ±5 250.5 1 40 149 80 98 90.5 93 72 39.5 Ø 10 G 2“ 1/2’ G 1“ 1/2’ 80 15.15 2 3 1: L = 500 /1000 ILT Bin Level Indicators have been designed for electric signalling by rotary action of minimum or maximum material level inside bins, hoppers or silos. Function As long as material is present, the paddle of the ILT Bin Level Indicator does not rotate. As soon as the material level sinks below the paddle radius, rotation restarts activating other system components. The top or side-mounted indicators are commonly used for materials having a bulk density ranging from 0.5 t/m3 (0.02 lbs per cu...

Open the catalog to page 2

Données techniques Dati tecnici Technische Daten Technical Data Dati meccanici Involucro: IP 65 Mozzo di collegamento: filettatura G1 1/4”, G1 1/2”, G2 1/2” Materiale del mozzo di collegamento: plastica Materiale dell’albero e della paletta: acciaio inossidabile Innesto a frizione: protezione degli ingranaggi dall’impianto della paletta Ritardo di segnale: 1,3 sec circa Sensibilità: regolabile mediante il richiamo della molla in tre posizioni Velocità della paletta: 1 giro/min. Dati elettrici Tensione di rete: 115 V / 230V, 50-80 Hz o 24 V / 48 V, 50-60 Hz o 24 V CC tutte le tensioni + 10% /...

Open the catalog to page 3

TOR. 310 TOR. 500 TOR. 800 TOR. 900 TOR. 941 TOR. 600 TOR. 320 TOREX S.p.A. Via Canaletto, 139/a I - 41030 S. Prospero s/S. (MO) - ITALY Tel. : +39 059 80 80 811 Fax : +39 059 90 82 04 [email protected] www.torex.it TOR. 900 03/08 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre Production - Altra Produzione
