WAMGROUP S.p.A
FIBC Dischargers SBB Brochure

FIBC Dischargers SBB Brochure

Product catalog summary

Overview: The document discusses the challenges and solutions associated with discharging Flexible Intermediate Bulk Containers (FIBC), commonly known as Big-Bags. It highlights common problems encountered during the discharging process and introduces a modular FIBC Discharging System designed to address these issues efficiently.

Common Problems:

Dust generation when opening the bag.
Difficulties in removing compressed substances due to transportation or storage.
Residual substances trapped in the corners of the bag, requiring manual intervention.

Proposed Solution: The document suggests using a modular and expandable FIBC Discharging System. This system is designed to be efficient, simple, and cost-effective, with a range of accessories available to meet specific customer needs.

Material Specifications:

Standard material: Carbon steel.
Optional materials: Stainless steel (304 or 316).

System Types and Dimensions: The document lists various system types (Type C, Type S, Type M) with specific dimensions provided in millimeters for each type.

Accessories: A variety of accessories are available to enhance the discharging system, including:

Cutting System
Rotary Valve
Pneumatic Conveying System
Micro-Batch Feeder
Tubular Screw Feeder
Flexible Helix Conveyor
Pneumatic Shaking System

Additional Information: The document notes that technical specifications are subject to change and provides references to further products and contact information for the manufacturer, WAMGROUP.

Catalog excerpts

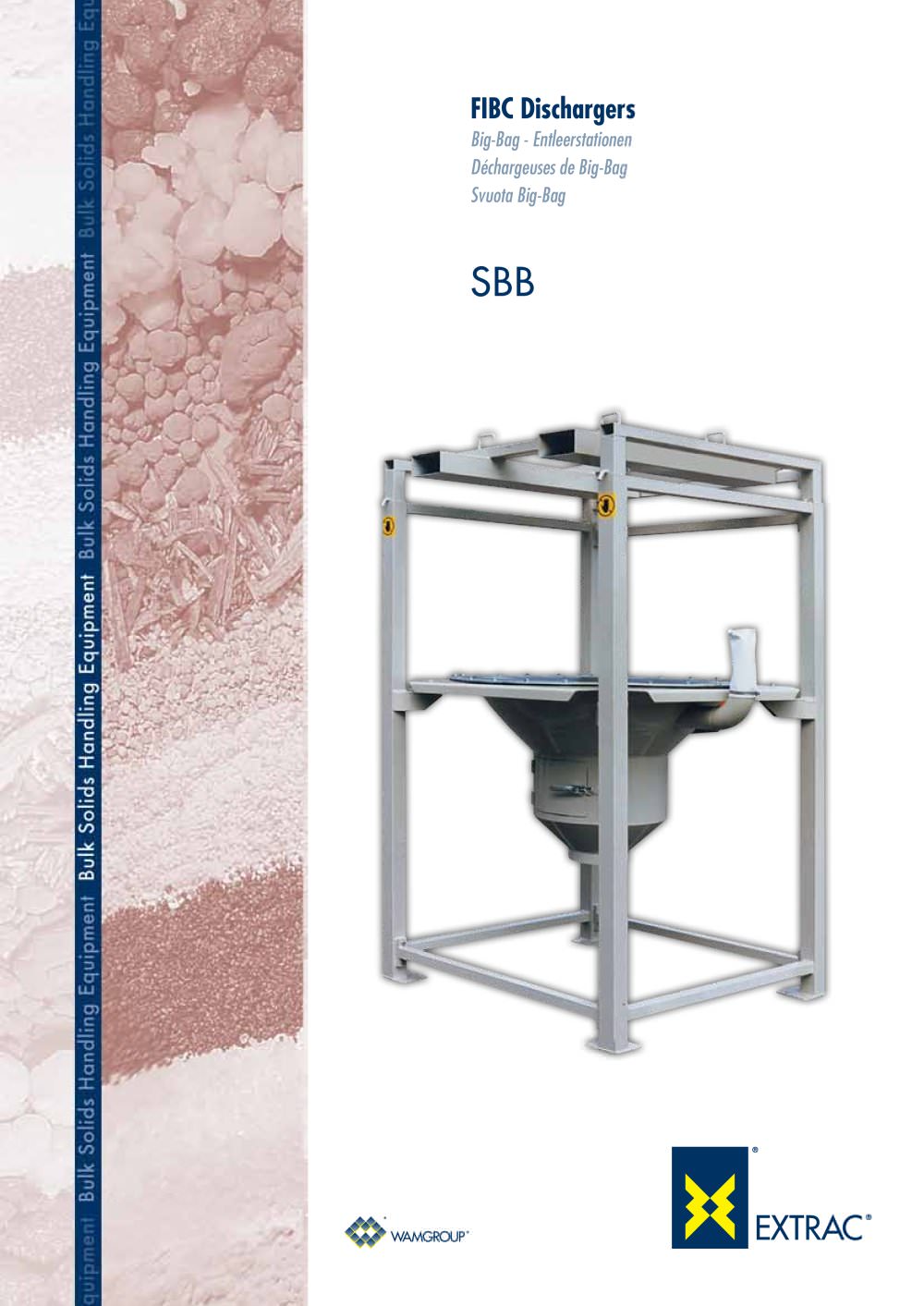

FIBC Dischargers Big-Bag - Entleerstationen Déchargeuses de Big-Bag Svuota Big-Bag SBB

Open the catalog to page 1

When discharging an FIBC the following problems can be encountered: - Dust is produced when the bag is opened; - Difficulties occur when trying to remove substances from the bag which have been compressed during transportation or storage; - Substances remain trapped in the corners of the bag, making it necessary for the subsequent discharging to be carried out by hand. In order to avoid such problems we suggest you use our modular FIBC Discharging System. Our systems can be extended and a range of accessories is available to satisfy every individual requirement with unrivalled efficiency, simplicity...

Open the catalog to page 2

F 1.734 G 2.150 H 750 L 3.765 C E 832 160 A B SBB. 125. M 4.810 1.400 Type Dimensions in mm E 100 160 F 1.734 1.800 C D 832 130 1.047 180 A max. B 3.960 1.400 4.307 1.800 SBB. 125. S SBB. 150. S F Type 1.734 1.880 C E 832 100 1.047 160 A B 1.914 1.400 2.490 1.800 SBB. 125. C SBB. 150. C Type Dimensions in mm Dimensions in mm Accessories Zubehör Accessoires Accessori Type M Typ M Type M Tipo M Cutting System Schnittvorrichtung Système de coupe Sistema di taglio With Rotary Valve Mit Zellenradschleuse Avec sas alvéolaire Con rotovalvola With Pneumatic Conveying System Mit pneumatischem Fördersystem...

Open the catalog to page 3

063001479 11/10 Rights reserved to modify technical specifications Further Products - Outra produção - Otros Productos - Altra produzione www.wamgroup.com WAM. 00515 WAM. 03021-25-31 WAM. 03041 WAM. 03510 WAM. 03010 WAM. 13 TOR. 300

Open the catalog to page 4
