External Pneumatic Piston Vibrator F-TYPE Brochure
1 / 2 PagesView full catalog
External Pneumatic Piston Vibrator F-TYPE Brochure
Product catalog summary
Overview: The F-series Linear Piston Vibrators by OLI® are designed for conveying, compacting, and detaching bulk solids through perfectly linear vibrations. They are particularly effective for emptying bins and driving vibrating conveyors or feeders.
Specifications: The vibrators operate at different pressures (2 bar, 4 bar, 6 bar) with varying vibration forces, working moments, and air consumption rates. For example, the F8 model at 6 bar produces a vibration force of 3.5 kg and consumes 28 l/min of air.
Technical Data: The vibrators are suitable for temperatures ranging from -10°C to 150°C, with the F15P model operating from 0°C to 100°C. They are explosion-proof, maintenance-free, and feature adjustable frequency and amplitude. The design ensures minimal sound emission and low air consumption.
Features & Benefits: Key features include wide oscillations, excellent start/stop characteristics, and the ability to start from any position. These vibrators are ideal for applications requiring efficient material transport and compaction.
Dimensions: The document provides detailed dimensions for each model, including measurements for installation and operation.
Manufacturer Information: OLI S.p.A., located in Medolla, Italy, is the manufacturer of these vibrators. Contact details and further information can be found on their website.
See more
Catalog excerpts

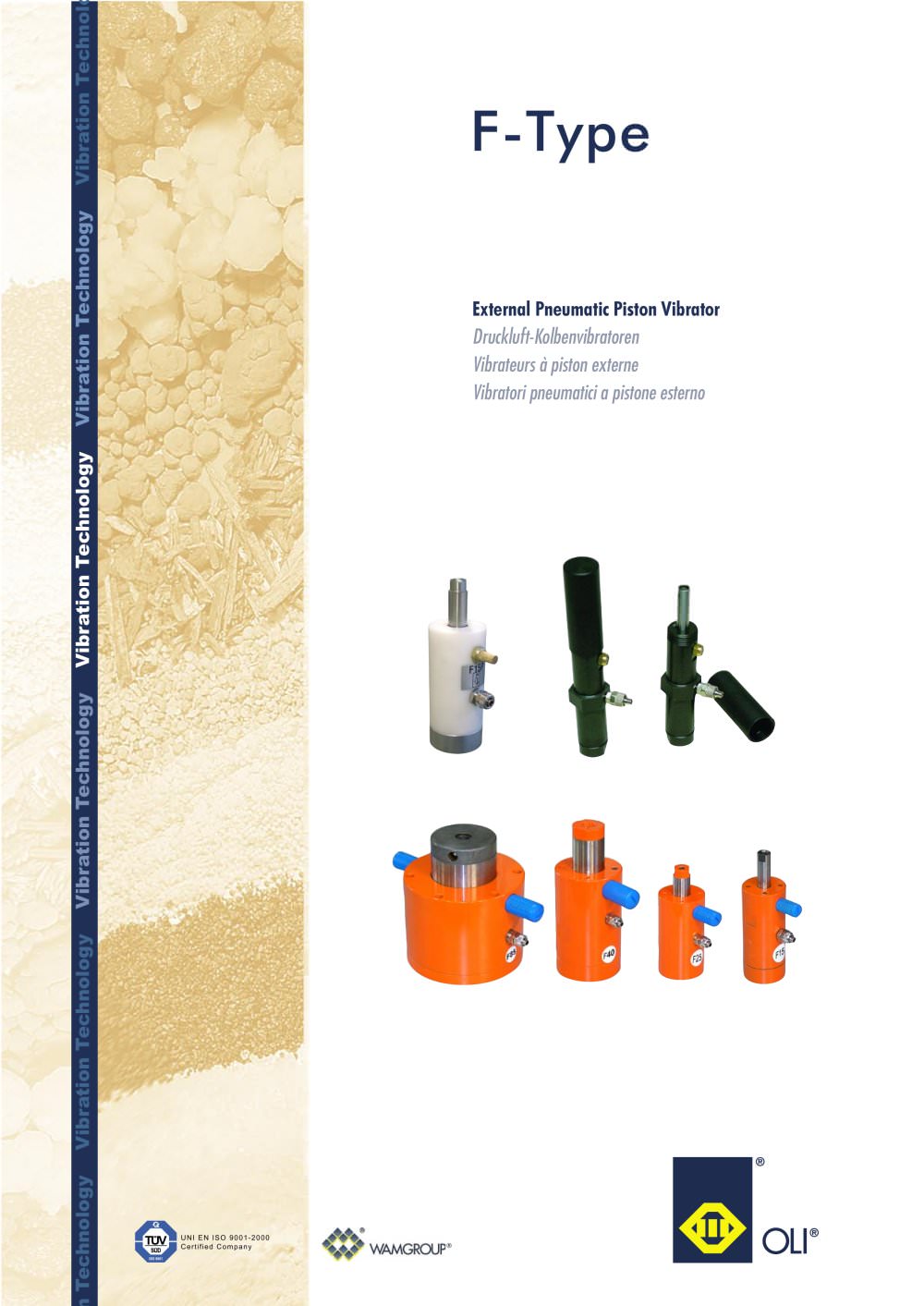

External Pneumatic Piston Vibrator Druckluft-Kolbenvibratoren Vibrateurs à piston externe Vibratori pneumatici a pistone esterno ® F-Type Vibration Technology Vibration Technology Vibration Technology Vibration Technology Vibration Technology Vibration TechnologyUNI EN ISO 9001-2000Certified Company
