WAMGROUP S.p.A
Dust Collectors WAMAIR® Vacuum Brochure

Dust Collectors WAMAIR® Vacuum Brochure

Product catalog summary

Overview
WAMAIR® Vacuum filters are designed for use in pneumatic conveying systems under negative pressure, up to -0.6 bar. These polygonal filters are equipped with a compressed air cleaning system, allowing for continuous operation.

Technical Specifications
The filters are available in both horizontal and vertical configurations. Vertical filters feature a pneumatically locked access cover with a self-locking mechanism for safety. Horizontal filters include an air outlet flange PN 10. The construction material is RAL 7001 powder-coated carbon steel, with stainless steel options (304 or 316) available.

Design Features
The filters include a door fastener with four locking clamps made of 304 stainless steel. The body and access cover are made from RAL 7001 powder-coated carbon steel, with stainless steel options. The design allows for easy maintenance with compact dimensions and an integrated air jet cleaning system.

Dimensions and Models
The document details dimensions and specifications for various models, categorized under codes such as FPN D T and FPN G T, with different surface areas and dimensions to suit various applications.

Product Variants
Models include TOR. 500, TOR. 1100, TOR. 900, TOR. 310, TOR. 600, and TOR. 320, each differing in size or capacity.

Manufacturer Information
Produced by WAM S.p.A., located in Ponte Motta, Cavezzo, Italy. Contact information is provided for further inquiries.

Additional Notes
The document notes that technical specifications are subject to change.

Catalog excerpts

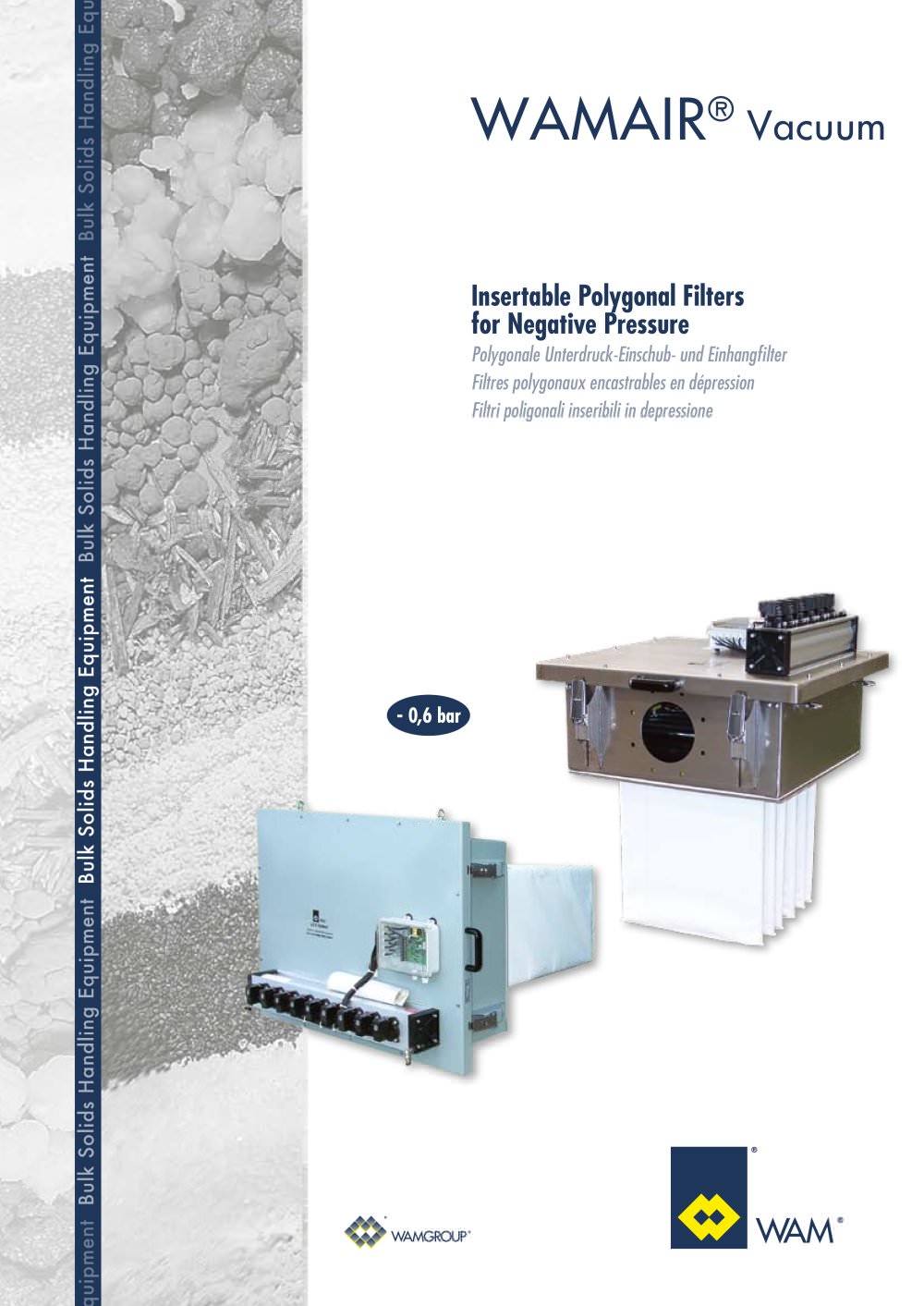

Dust Collectors WAMAIR® Vacuum Brochure-1

Polygonale Unterdruck-Einschub- und EinhangfilterFiltres polygonaux encastrables en dΩpression Filtri poligonali inseribili in depressione - 0,6 bar >

Open the catalog to page 1

Dust Collectors WAMAIR® Vacuum Brochure-2

WAMAIR > Vacuum is a range of insertable polygonal filters designed for use under negative pressure (up to - 0.6 bar), especially for pneu ma tic conveying systems.Its technical features and the compressed air cleaning system make it suitable for use in continuous mode. WAMAIR > ή Vacuum ist eine Bau reihe polygonaler Ein schu b -fil ter, die fr Einstze bei bis zu - 0,6 bar Unterdruck en twic kelt wur de.Als Haupteinsatzgebiet bieten sich daher pneumatische F줶r der systeme an. Die druckluftabgereinigten Filter gerte sind fr Dauerbetrieb geeignet.WAMAIR > 伮 Vacuum est une gamme de filtres polygonaux...

Open the catalog to page 2

Dust Collectors WAMAIR® Vacuum Brochure-4

Self-locking access cover in open position for operator safety Betriebssichere TrarretierungSystme de blocage pour la s쨩curit de lop钩rateurSistema di blocco per la sicurezza delloperatore Body and access cover in RAL 7001 powder- coated carbon steel (304 or 316 stainless steel on request) GehҤuse und Tr aus RAL 7001 pulverbeschichtetem Stahl (auf Wunsch aus Edelstahl 1.4301 bzw. 1.4401)Corps / Couvercle en acier au carbone peint par poudrage poxy en RAL 7001 (inox 304, 316 sur demande)Corpo / Coperchio in Fe verniciato a polvere RAL 7001 (AISI 304, 316 su richiesta) Easy door opening with one...

Open the catalog to page 4

Dust Collectors WAMAIR® Vacuum Brochure-5

WAMAIRvacuum > Filter Sur-face CODE ABCHkgFPN D T 1 03 m > 2 WAMAIRvacuum > Filter Sur-face CODE ABCHkgFPN G T 1 03 m > 2 0380076582850091 FPN G T 2 05 05800765107875095 FPN G T 3 06 068007651328100098 FPN G T 4 08 0880076515781250104 > B A FPN G T 5 09 0980076518281500108 FPN G T 6 05 058001040828500121 FPN G T 7 07 0780010401078750127 FPN G T 8 09 09800104013281000132 FPN G T 9 12 12800104015781250141 FPN G T A 14 14800104018281500147 > C FPN G T B 06 061296765828500136 > H FPN G T C 09 0912967651078750145 FPN G T D 12 12129676513281000151 FPN G T E 15 15129676515781250164 FPN G T F 18 18129676518281500172...

Open the catalog to page 5

Dust Collectors WAMAIR® Vacuum Brochure-6

TOR. 1100 07/08 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre production - Altra produzione >

Open the catalog to page 6
