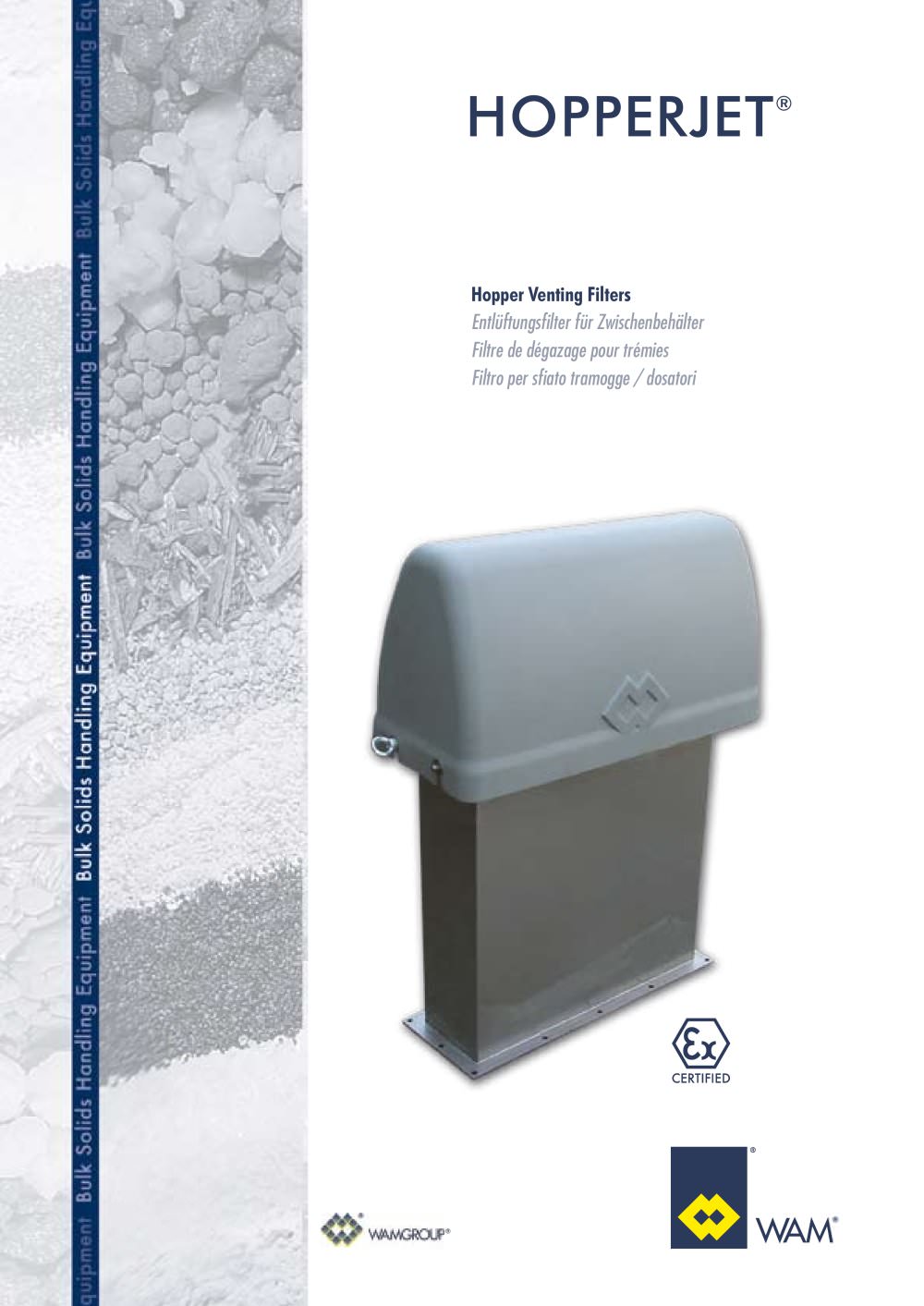

Dust Collectors HOPPERJET® Brochure

Product catalog summary

Overview: The HOPPERJET® is a compact venting filter designed for mechanically filled intermediate hoppers. It features an integrated automatic reverse air jet cleaning system that removes dust particles from the filter, allowing them to fall back into the hopper.

Performance & Technical Features:

Low emission levels due to B.I.A.-certified filter media.
Maintenance-free air jet cleaning unit integrated within the weather protection cover.
Quick maintenance facilitated by easy access for filter element removal.
High cleaning efficiency with 'Full-Immersion' solenoid valves in a corrosion-resistant aluminum air tank.
Requires minimal maintenance and space.
Easy to install and retrofit.

Options & Accessories:

Spigot for centralized suction system.

Technical Specifications:

Filtering Surface: 2 m²
Power Supply: 24 V, 110 V, 230 V AC
Filter Media: BIA-certified non-woven polyester (class U, S, G, and C)
Cleaning: Reverse air jet
Electronic Board: Included with adjustable pause and blow time settings
Maintenance: Conducted from the clean air part
Materials: Plastic cover (optional 304 or 316 stainless steel); body in 304 stainless steel (optional 316 stainless steel)
Design: Single welded piece to prevent product stagnation
Weight: 21 kg

Applications: Suitable for hopper volumes larger or smaller than 0.15 m³ (5.3 cu.ft.).

Additional Information: The document includes options for flat or pleated filter elements and covers for centralized suction in stainless steel.
