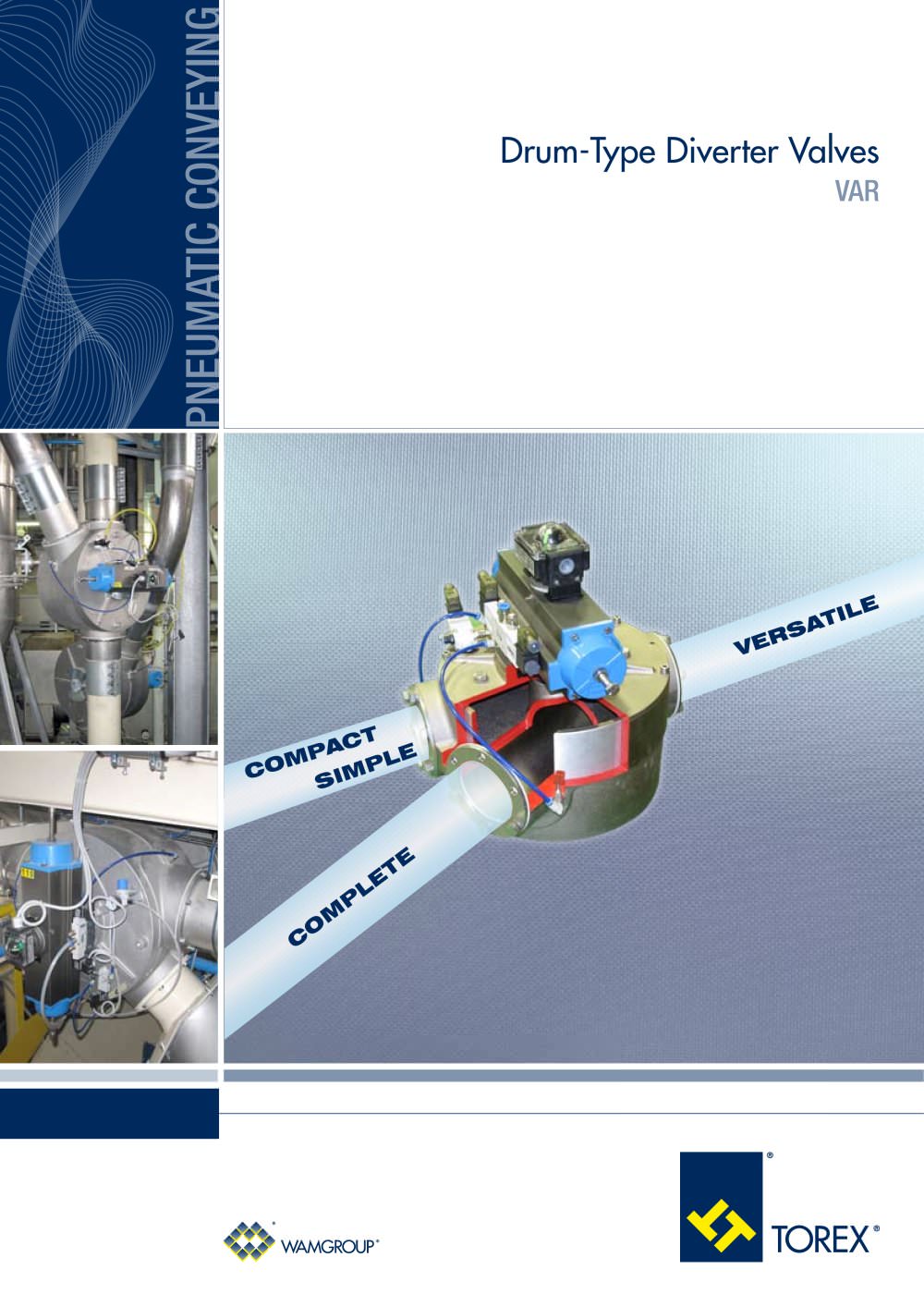

PNEUMATIC CONVEYING Drum-Type Diverter Valves VAR COMPACT SIMPLE COMPLETE VERSATILE
Open the catalog to page 1Type B C D E F T Q R S VAR 080 142 314 169 260 174 103 82 6 9 VAR 100 148 320 209 266 160 127 102 11 VAR 125 181 386 242 299 191 158 127 VAR 150 197 402 273 305 184 185 158 VAR 175 216 453 313 432 197 217 177 10 VAR 200 233 469 338 436 186 245 208 E F B C R S TQ 30° 30° D D D E F B C R S TQ 30° 30° D D D VAR Diverter Valves are suitable for handling any type of powdery or granular material in pneumatic conveying systems. By means of a electro-pneumatic actuator, which activates the rotating inner drum, the commutation of the tubular exit and, consequently, deviation of the material flow...
Open the catalog to page 22 1 3 1 4 • Inflated while material is conveyed - perfect sealing; • Deflated during rotation (i.e. material flow diversion), free drum movement and increased seal life; • Minimised pressure drop inside conveying duct. Inflatable Seals = Standard Adjustable and Easy to Use as Diverter or Converter • Compact overall dimensions and lightweight design; • Easy to install; • Maintenance-friendly; • Actuator assemblyon both sides of the casing. Pneumatic Actuator with Material Flow Direction Indicator • Visual arrow and mechanically through 2 limit switches. Stainless Steel Version • Prevent...
Open the catalog to page 3VAR Drum-Type Diverter Valves are essential components of all kinds of pneumatic conveying systems in those points where the material flow has to be diverted from one duct to another. Application TOR.03510.70.EN 03/10 Rights reserved to modify technical specifications. www.wamgroup.com
