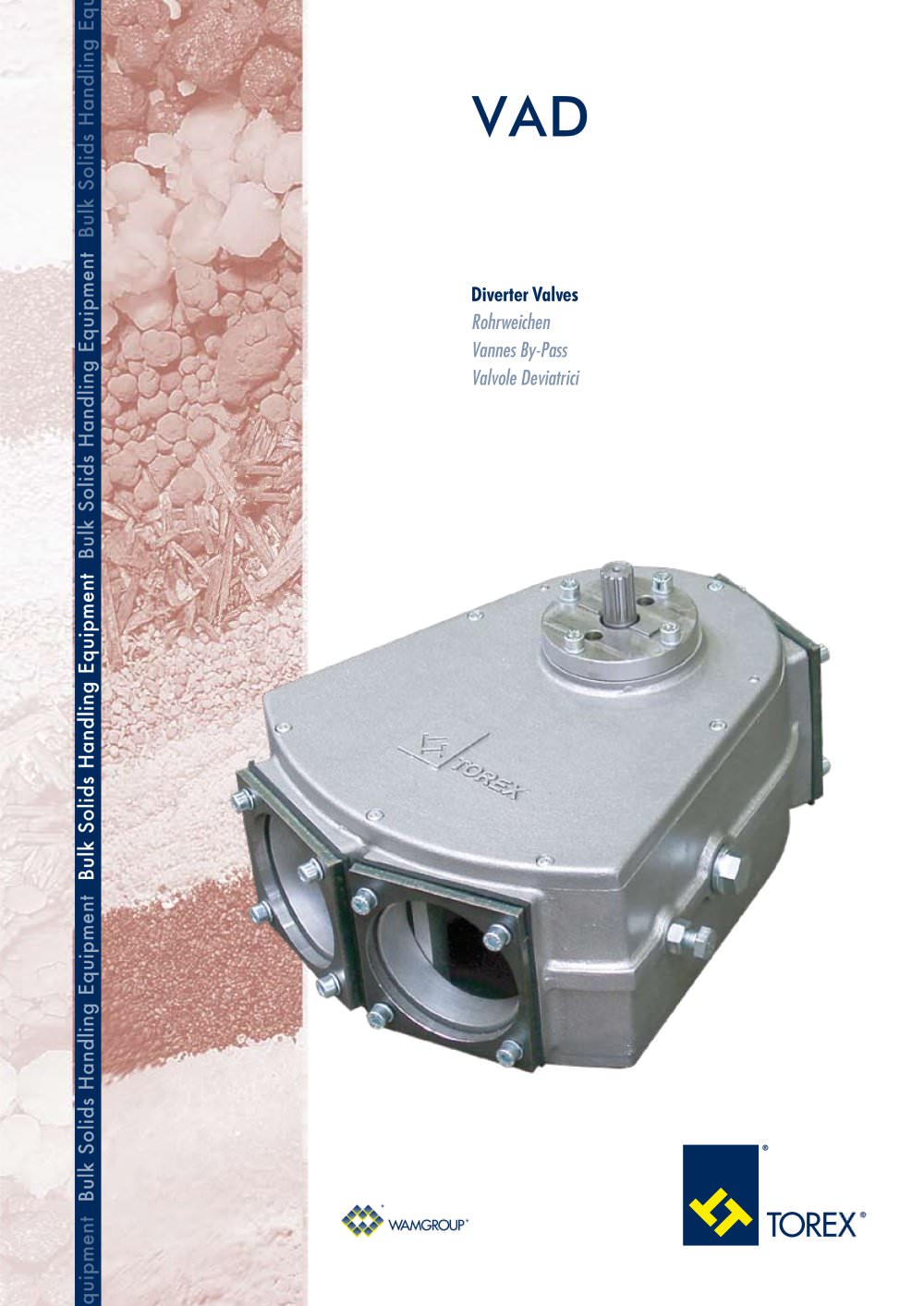

Diverter Valves Rohrweichen Vannes By-Pass Valvole Deviatrici VAD

Open the catalog to page 1

Features and Benefits - Low weight - Compact overall dimensions Technical Features - Operating Temperature: -20° C . 80° C - Operating Pressure: max. 2.5 bar (36 psi) For any further technical specs refer to Technical Catalogue. Technische Merkmale und Benutzervorteile - Geringes Eigengewicht - Kompakte Einbaumaße Technische Daten - Betriebstemperatur: -20° C . 80° C - Betriebsdruck: max. 2,5 bar Weitere technische Details siehe Technischer Katalog. Description and Working Principle VAD-type Diverter Valves are suitable for use in pneumatic conveying lines for handling any type of product...

Open the catalog to page 2

Coupling Actuators - Antriebskompatibilität - Accouplements d’Actionneurs - Abbinamenti Attuatori Design notes: Manufactured entirely in aluminium with the option of nickel-plating, the valve is activated either manually or by means of a pneumatic or an electric motor-operated actuator. A series of anti-friction gaskets ensures perfect sealing. Stub pipes are used for connecting the valve to the line. Anmerkungen: Komplett aus Aluminium hergestellt mit der Option der Vernickelung; wird entweder manuell oder über elektropneumatischen bzw. elektromotorischen Stellantrieb betätigt. Der dichte...

Open the catalog to page 3

TOR. 310 TOR. 500 TOR. 800 TOR. 900 TOR. 941 TOR. 600 TOR. 320 TOREX S.p.A. Via Canaletto, 139/a I - 41030 S. Prospero s/S. (MO) - ITALY Tel. : +39 059 80 80 811 Fax : +39 059 90 82 04 torex@torex.it www.torex.it TOR. 330 05/05 Rights reserved to modify technical specifications Further Products - Weitere Produkte - Autre Production - Altra Produzione
