WAMGROUP S.p.A
Diverter Valves DVA Brochure

Diverter Valves DVA Brochure

Product catalog summary

Overview: The DVA Diverter Valves are designed for directing the flow of powdery or granular materials in gravity applications. They feature a stainless steel casing lined with SINT™ engineering polymer and a flap with a steel core, also made from SINT™ polymer. The flap can be operated manually, pneumatically, or electrically.

Specifications: The valves have one inlet and two outlets, allowing for the diversion of material flow. The materials used in construction ensure quick cleaning, easy maintenance, and high resistance to abrasion.

Technical Features and Benefits:

Constructed with a robust 304 stainless steel body lined with non-stick, wear-resistant SINT™ polymer.
Available actuators include manual, pneumatic, or gear motor options.
The casing features a replaceable SINT™ polymer liner suitable for standard and food-grade applications.
The contact between the diverter flap and body liner ensures a dustproof seal.
Design allows for easy access and minimal maintenance.
Highly resistant to wear.

Dimensions and Types: The document provides detailed dimensions for various models, including bottom flange types and actuator coupling options. Dimensions are given in millimeters, and specific models are listed with their respective measurements.

Actuator Coupling: The document outlines the coupling options for pneumatic, manual, and gear motor actuators, emphasizing the importance of careful adjustment during installation.

Standards and Certifications: The product is manufactured by a UNI EN ISO 9001-2000 certified company, ensuring quality and reliability.

Catalog excerpts

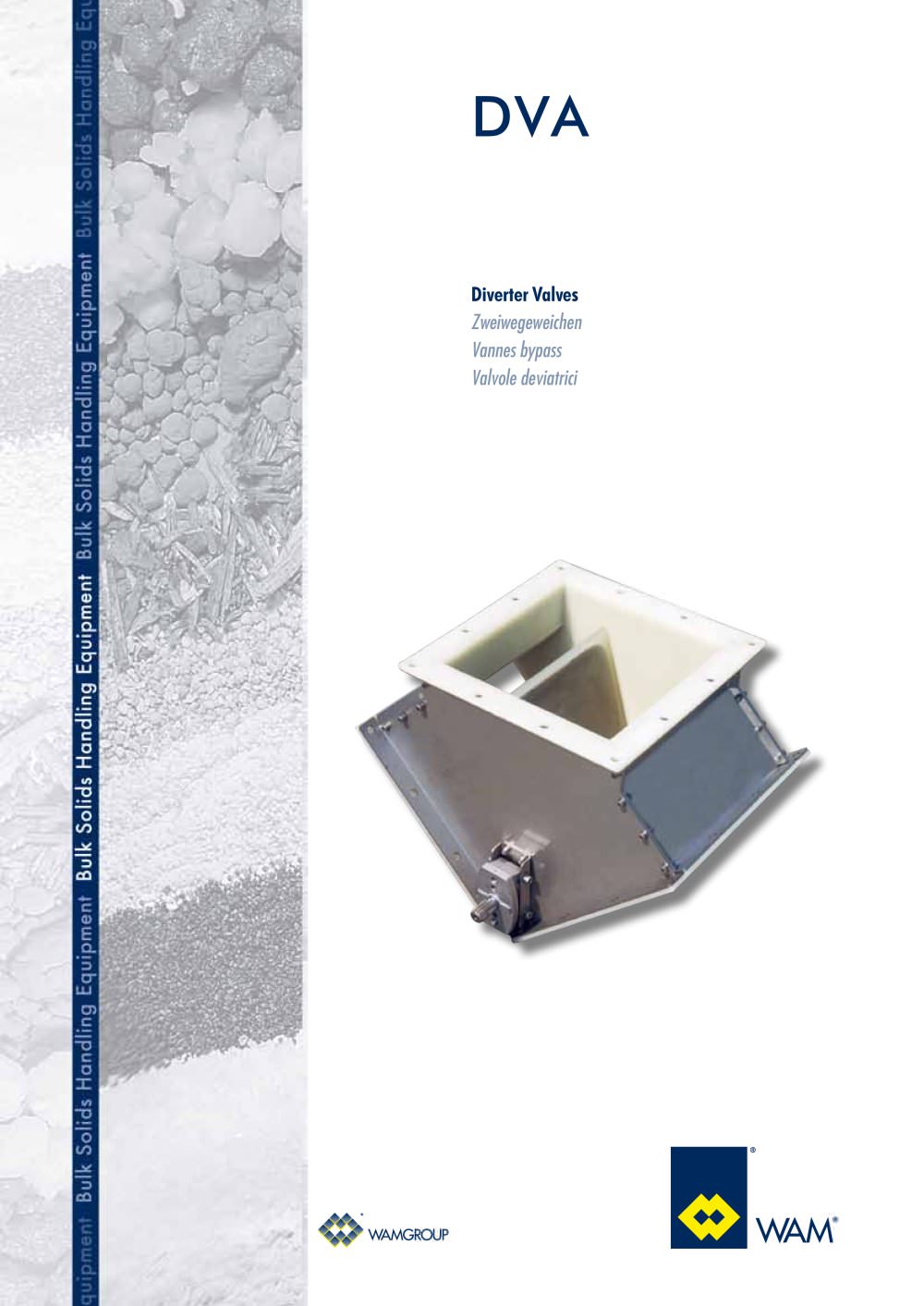

Diverter Valves Zweiwegeweichen Vannes bypass Valvole deviatrici DVA

Open the catalog to page 1

DVA Diverter Valves consist of a stainless steel casing lined with SINT™ engineering polymer and a flap in SINT™ engineering polymer too with a steel core. The flap is activated either by a manual lever, a pneumatic or an electric actuator. Function DVA is a Diverter Valve with one inlet and two outlets for the diversion of the flow of powdery or granular materials for gravity application. The engineering materials used enable quick cleaning and maintenance apart from offering great resistance to abrasion. DVA Zweiwegeweichen bestehen aus einem mit SINT™ Polymer ausgekleideten Edelstahlgehäuse...

Open the catalog to page 2

BOB 02450 • BOB 04850 • BOB 11050 • BOB 22050 • BOB 024CC Ä BOB 048CC Ä BOB 110CC Ä BOB 220CC Ä MIC 23 LSMO V5V80 V5V40 150 - CP063 200 - CP101 250 - CP101 300 - CP101 * Recommended Standard: * Empfohlener Standard: * Standard conseillé: * Standard consigliato: • Alternating Current • Wechselstrom • Courant alternatif • Corrente alternata Ä Direct Current Ä Gleichstrom Ä Courant continu Ä Corrente continua Coupling of Pneumatic Actuator Kombination mit Pneumatikantrieb Accouplement commande électropneumatique Abbinamenti di attuatore elettropneumatico Prestazioni e caratteristiche tecniche -...

Open the catalog to page 3

063001432 November 2010 Rights reserved to modify technical specifications 063001436 063001487 063001513 063001410 063001519 Further Products - Weitere Produkte - Autre production - Altra produzione 063001591 063001505 www.wamgroup.com UNI EN ISO 9001-2000 Certified Company

Open the catalog to page 4
