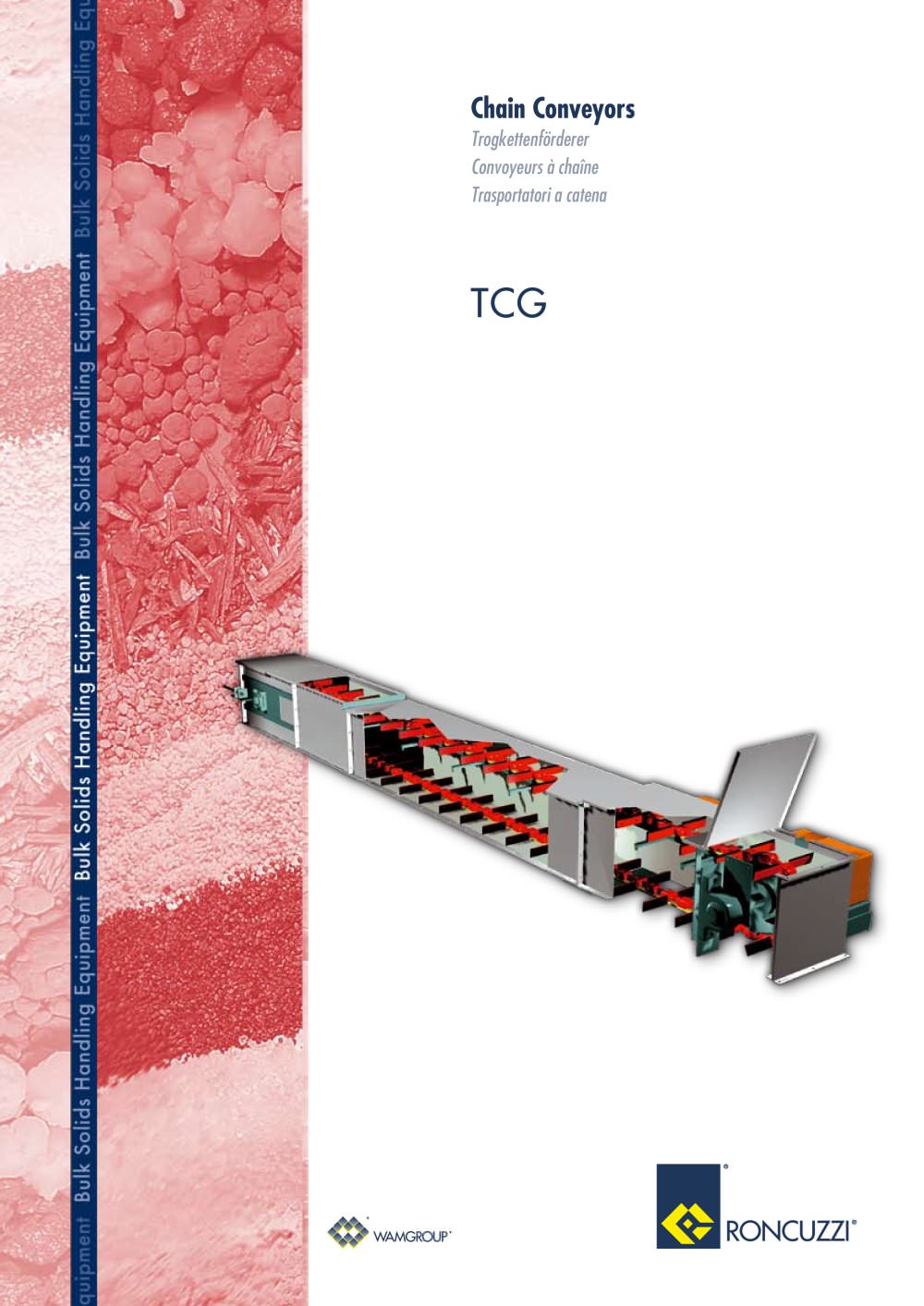

Chain Conveyors TCG Brochure

Product catalog summary

Overview
RONCUZZI® TCG Chain or Drag Conveyors are engineered for the efficient transport of dry solids such as powders, granules, pellets, and flakes. Known for their robust and durable design, these conveyors are ideal for various industrial applications, especially in storage facilities for cereals and similar products.

Specifications
The TCG Chain Conveyors feature a hot-galvanised flanged casing with modular sections for easy assembly and maintenance. They offer drive options via a direct geared motor or chain transmission. The conveyor chain is available in blank and bent links or forged with pressed links, with chain guides made from Polyzene® or manganese steel. Throughput rates range from 80 to 1,000 m³/h, and the maximum conveying length is up to 100 meters.

Functionality
These conveyors are specifically designed for conveying cereals, flour, and similar materials. They allow for multiple discharge points through electrically operated slide gates, making them versatile for horizontal and inclined transport, as well as material extraction from pits or hoppers.

Applications

Horizontal conveying with multiple discharge points
Inclined conveying with multiple discharge points
Material extraction from pits or hoppers
Conveying with variable angles of inclination

Performance & Technical Features

Throughput rates: 80 ~ 1,000 m³/h
Conveying length up to 100 m
Surface treatment: hot-galvanised
Direct or chain transmission drive
Chain guide in Polyzene® or manganese steel
Equipped with rotation sensors and safety devices

Benefits

Solid and robust design
Easy installation due to modular components
Suitable for explosive environments
Reliable and durable with minimal maintenance required

Contact Information
R&S S.r.l, Via del campo sportivo, 40, I - 48100 MEZZANO Ravenna - ITALY. Tel: +39 / 0544 / 46 63 11, Fax: +39 / 0544 / 46 35 91, Email: [email protected], Website: www.roncuzzi.com

Catalog excerpts

I trasportatori a catena TCG rappresentano una parte essenziale dell’esperienza sviluppata da RONCUZZI® negli oltre 100 anni di attività nel campo del bulk handling. Infatti, all’interno dei numerosi impianti realizzati da RONCUZZI®, i trasportatori a catena costituiscono il sistema maggiormente utilizzato per il trasporto di materiali solidi, granulari e in polvere. Di costruzione solida e robusta, e continuamente sviluppati nel corso degli anni, i trasportatori a catena RONCUZZI® sono oggi la perfetta risposta alle esigenze dei clienti alla ricerca di una soluzione sicura e affidabile nel tempo....

Open the catalog to page 2

Funcfion Funkton fmom d'ttso CGOigii Conveyas hove becn especkJly dwgnett for cwwymg tcreak, Fletr or snilir nhitak Ihe product is drogpjd and conwyed by rtctangular &hoptd Righlt olong the ktfon of ihe tasing, The ftglrts are iixed beneath a guidcd (haiiL KG Chain (onvcyon trahie malcrial dru barge ri diffrent points tfragh interrnediole ouHei tpouli equ'pped with eJcdrktly optrated slide gtes especialry designad fer this pirjoe. Apori from nrious industriel professes, KG thein Convcyon are widely used in *rogc plant; (or cereab and slmilar produch. KG Kettemmrm egnen sxn Dfonflw; wt fotdenmg...
