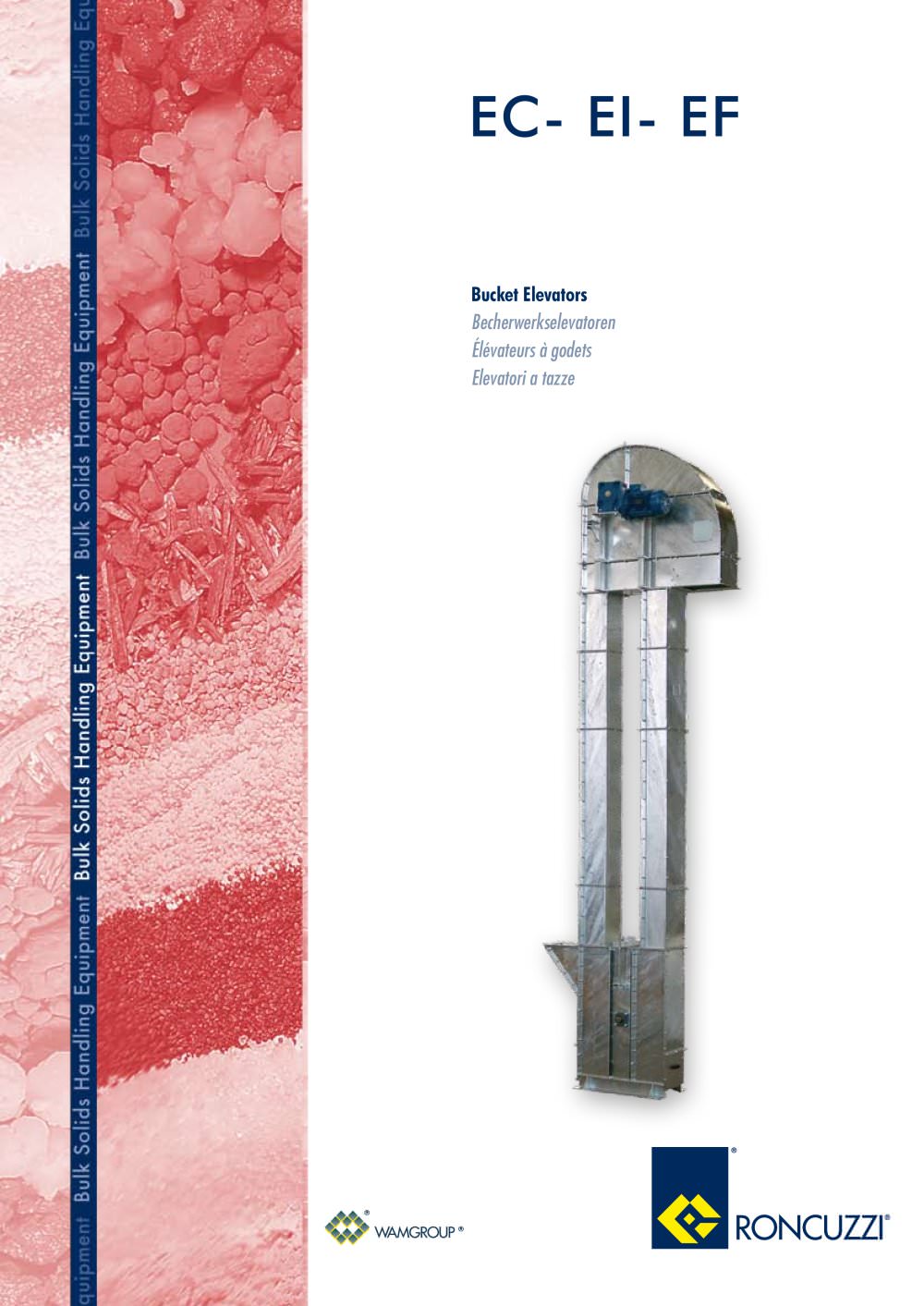

Bucket Elevators EC EI EF Brochure

Bucket Elevators EC EI EF Brochure

Product catalog summary

Overview: This document outlines the specifications and features of the EC, EI, and EF series bucket elevators, which are designed for the vertical transport of materials such as cereals, fine aggregates, and flour. Each series is optimized for specific materials and operational conditions.

EC Series: These elevators are tailored for cereals with grain sizes between 1 and 3mm. They feature high elevation speeds (2.4 – 3.1m/s), ATEX II3D T4 certification, and bolted sections for easy maintenance. Additional features include anti-skid sensors, rotation sensors, and explosion relief panels. Optional features include stainless steel construction, inspection platforms, and various bucket materials.

EI Series: Designed for fine aggregates like calcium carbonate and sand with particle sizes under 5mm, these elevators operate at lower speeds (1.6 – 1.9m/s). They include bolted sections, optimal outlet geometry, and plexiglass viewers. Options include ATEX certification, high-temperature resistance, and anti-wear shields.

EF Series: These are intended for flour and similar powdery materials, operating at moderate speeds (2.4 – 2.5m/s) with ATEX certification and a calendered head casing. Options include various materials for buckets and belts, and hydraulic coupling on the drive unit.

Applications: The elevators are suitable for industries dealing with cereals, animal feed, petrochemicals, minerals, building materials, and chemicals, with each series optimized for specific material characteristics and operational needs.

Technical Specifications: Detailed tables provide information on throughput rates, drum diameters, and casing cross-sections for each series, demonstrating the elevators' adaptability to different operational heights and material densities.

Specifications: EF bucket elevators are designed for materials like flour, characterized by low abrasiveness and fluidity, operating at moderate speeds with high bucket density. Standard features include ATEX II3D T4 certification, bolted sections for easy maintenance, anti-slip sensors, rotation sensors, explosion relief panels, and plexiglass viewers.

Options & Accessories: Available options include stainless steel construction, inspection platforms, de-dusting system connections, anti-wear shields, hydraulic coupling, and various bucket materials.

Applications: The EF series is ideal for transporting dry, fine-grained, non-abrasive, free-flowing materials like animal feed and flour.

Technical Data: A table details various EF models, including throughput rates up to 1,060 m3/h, drum diameters, casing cross-sections, and dimensions based on height.
