Batch-Type Ploughshare Mixers WBHV Brochure

Batch-Type Ploughshare Mixers WBHV Brochure

Product catalog summary

Overview: The document provides technical specifications and options for various types of mixing tools and ploughshare mixers manufactured by WAM S.p.A. It includes details on the design, functionality, and optional features of these mixers, which are used for the mechanical fluidization of products.

Mixing Tools: The document describes different types of mixing tools, including toothed edge, toothed blade, standard, and blade-type mixing tools. An anti-wear coating is available as an option for all mixing tools to enhance durability.

Ploughshare Mixers: The horizontal single shaft ploughshare mixers are designed for efficient mixing through mechanical fluidization. The unique shape, position, and rotation speed of the mixing tools create a centrifugal vortex motion, ensuring high precision blending of components with varying particle sizes and densities.

Specifications: The mixers are available in various models (e.g., WBHV 150, WBHV 3000) with different capacities and dimensions. They are constructed from materials such as carbon steel, anti-wear steel, or stainless steel (304L - 316L) for heavy-duty applications.

Features: Key features include maximum mixing homogeneity, short mixing times (1-4 minutes), excellent batch reproducibility, minimal wear, low maintenance, and easy access for cleaning and tool adjustment.

Optional Accessories: The document lists optional accessories such as decompression control, liquid injection wands, chopper bearing assemblies, PT 100 temperature probes, pneumatic sampling devices, and various types of shaft seals with air or nitrogen purging options.

Applications: The mixers are suitable for mixing solids, treating solids with liquids, and handling highly viscous materials.

Certification: The laboratory is registered and approved by the Italian Ministry of Science, as published in the "Gazzetta Ufficiale" No. 120 dated 24th May 1996.

Catalog excerpts

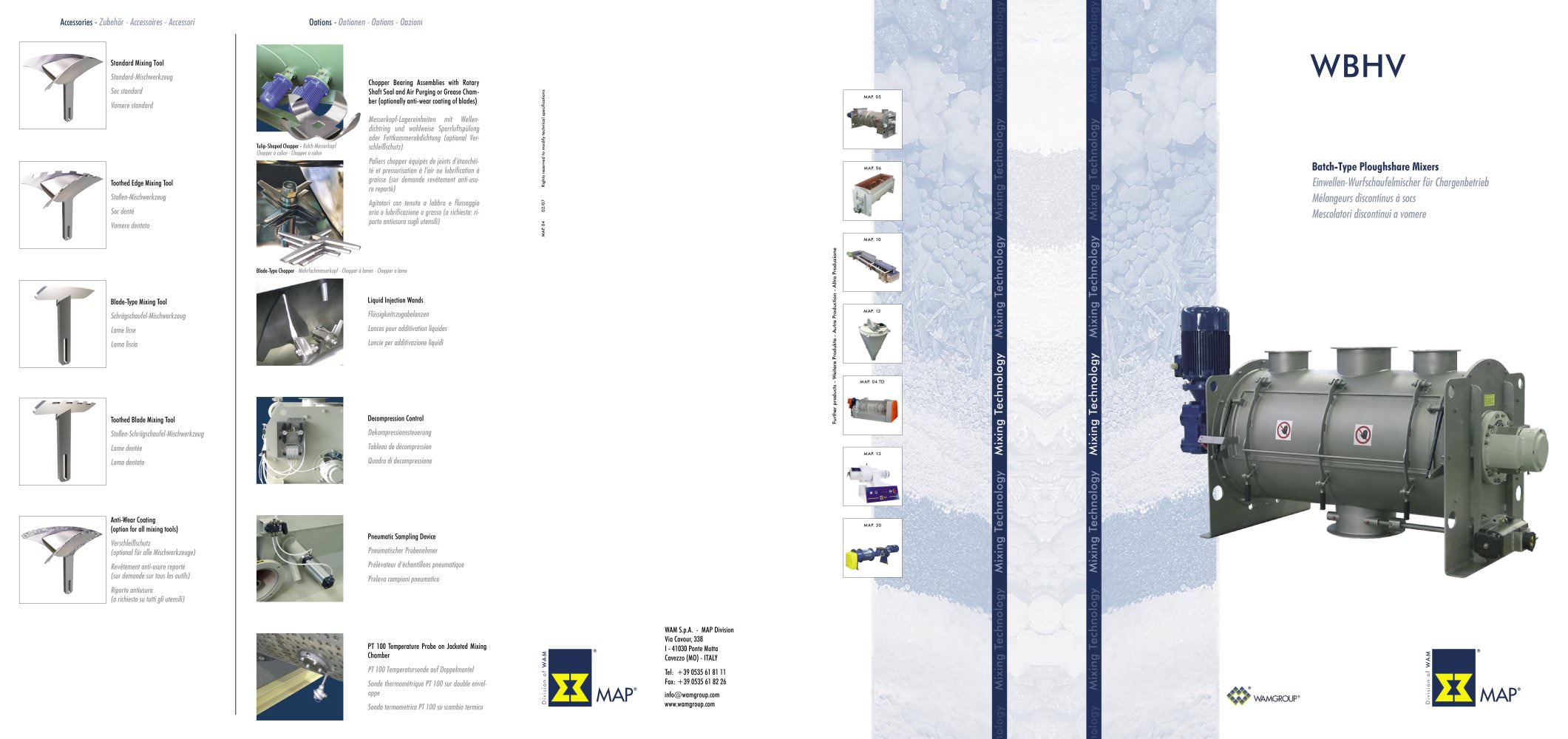

Batch-Type Ploughshare Mixers WBHV Brochure-1

Toothed Edge Mixing Tool Stollen-Mischwerkzeug Soc denté Vomere dentato Toothed Blade Mixing Tool Stollen-Schrägschaufel-Mischwerkzeug Lame dentée Lama dentata Standard Mixing Tool Standard-Mischwerkzeug Soc standard Vomere standard Anti-Wear Coating (option for all mixing tools) Verschleißschutz (optional für alle Mischwerkzeuge) Revêtement anti-usure reporté (sur demande sur tous les outils) Riporto antiusura (a richiesta su tutti gli utensili) Blade-Type Mixing Tool Schrägschaufel-Mischwerkzeug Lame lisse Lama liscia Options - Optionen - Options - Opzioni MAP. 05 MAP. 10 MAP. 12 MAP. 13 MAP. 30 Batch-Type Ploughshare Mixers Einwellen-Wurfschaufelmischer für Chargenbetrieb Mélangeurs discontinus à socs Mescolatori discontinui a vomere ® WBHV WAM S.p.A. - MAP Division Via Cavour, 338 I - 41030 Ponte Motta Cavezzo (MO) - ITALY Tel: +39 0535 61 81 11 Fax: +39 0535 61 82 26 [email protected] www.wamgroup.com MAP. 04 02/07 Rights reserved to modify technical specifications Further products - Weitere Produkte - Autre Production - Altra Produzione Accessories - Zubehör - Accessoires - Accessori Decompression Control Dekompressionssteuerung Tableau de décompression Quadro di decompressione Liquid Injection Wands Flüssigkeitszugabelanzen Lances pour additivation liquides Lancie per additivazione liquidi Chopper Bearing Assemblies with Rotary Shaft Seal and Air Purging or Grease Chamber (optionally anti-wear coating of blades) Messerkopf-Lagereinheiten mit Wellendichtring und wahlweise Sperrluftspülung oder Fettkammerabdichtung (optional Verschleißschutz) Paliers chopper équipés de joints d’étanchéité et pressurisation à l’air ou lubrification à graisse (sur demande revêtement anti-usure reporté) Agitatori con tenuta a labbro e flussaggio aria o lubrificazione a grasso (a richiesta: riporto antiusura sugli utensili) PT 100 Temperature Probe on Jacketed Mixing Chamber PT 100 Temperatursonde auf Doppelmantel Sonde thermométrique PT 100 sur double enveloppe Sonda termometrica PT 100 su scambio termico Pneumatic Sampling Device Pneumatischer Probenehmer Prélévateur d’échantillons pneumatique Preleva campioni pneumatico Blade-Type Chopper - Mehrfachmesserkopf - Chopper à lames - Chopper a lame Tulip-Shaped Chopper - Kelch-Messerkopf Chopper à calice - Chopper a calice MAP. 04.TD MAP. 06

Open the catalog to page 1

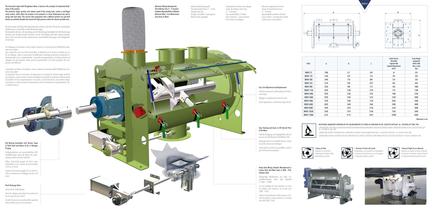

Batch-Type Ploughshare Mixers WBHV Brochure-2

Ces mélangeurs horizontaux à arbre simple se basent sur le principe de la fluidification mécanique des produits. Leur construction sous une forme particulière, la disposition et la vitesse de rotation des ou-tils de mélange, créent un mouvement tourbillonnaire centrifuge qui permet la projection tridimensionnelle et leur interpénétration. La parfaite homogénéisation et la haute précision de mélange sont ainsi garantis, même quand la granulométrie et le poids spécifique des composants sont différents. I mescolatori ad albero orizzontale a vomere si basano sul principio della fluidificazione meccanica...

Open the catalog to page 2
