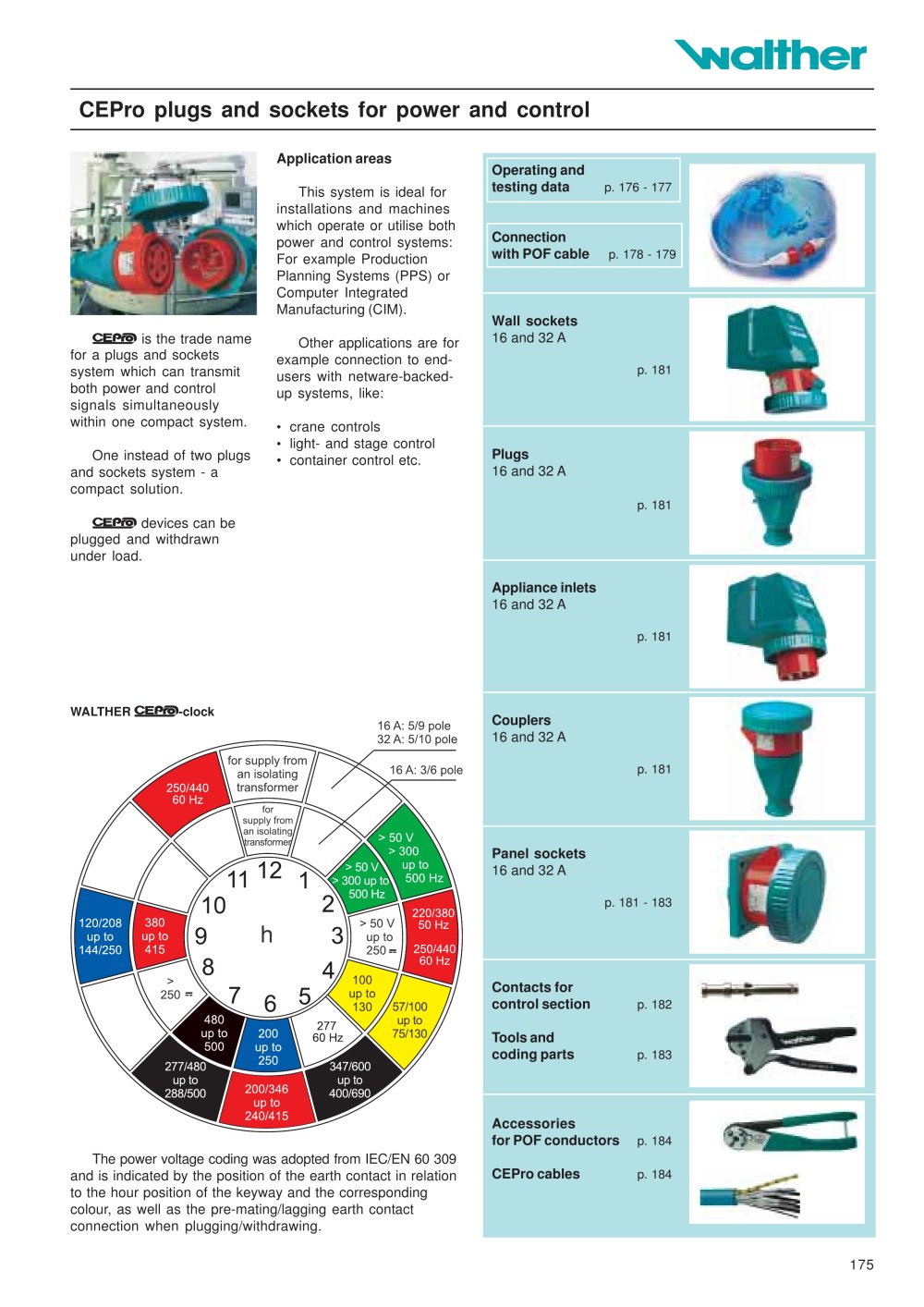

Application areas This system is ideal forinstallations and machineswhich operate or utilise bothpower and control systems:For example ProductionPlanning Systems (PPS) or Computer Integrated Manufacturing (CIM).Other applications are forexample connection to end- users with netware-backed-up systems, like: Operating andtesting data > p. 176 - 177 Connection with POF cable > p.178 - 179 16 and 32 A Wall sockets > is the trade namefor a plugs and socketssystem which can transmit both power and control signals simultaneouslywithin one compact system.One instead of two plugsand sockets system - a compact solution. p. 181 crane controls ? light- and stage control?container control etc. 16 and 32 A Plugs > p. 181 devices can beplugged and withdrawnunder load. The power voltage coding was adopted from IEC/EN 60 309and is indicated by the position of the earth contact in relationto the hour position of the keyway and the corresponding colour, as well as the pre-mating/lagging earth contact connection when plugging/withdrawing. 16 and 32 A Appliance inlets > p. 181 WALTHER -clock 16 and 32 A Couplers > p. 181 16 and 32 A Panel sockets > p. 181 - 183 Contacts for control section > p. 182 Tools and coding parts > p. 183 Accessories for POF conductors > p. 184 CEPro cables > p. 184 175 >
Open the catalog to page 1Stripping of copper conductors for CEPro cable without POF: Plug connection2 P + > 40710 plug 3/5x16A 3 P + N + > shieldingPowercontrolcoating Coupler connection2 P + > 6545107 plug 5 x 32A 8050107 Coupler connection > 3 P + N + coupler5 x 32A Instructions for connection with POF-cable (POF = Polymer-Optical Fibre) > 2)Stripping POF-cable 1 mmon min. 14 mm for glass fibre cable sleeves and min. 19 mm for glass fibre cable pins 3)Insert stripped POF-cable insleeve or pin until stop. The fibre should then stick about 1 mm out of the contact. 4)Fibre crimping:Adjust the positioning sleeve into...
Open the catalog to page 53pole5pole4h4h 3pole5pole6h9h 3pole5pole9h6h 5pole11h 3pole5pole7h7h 2 P + E 3 P + N + E PolesAmpre Control contacts maximum
Open the catalog to page 73pole5pole4h4h 3pole5pole6h9h 3pole5pole9h6h 5pole11h 3pole5pole7h7h 2 P + E 3 P + N + E PolesAmpre Control contact maximum
Open the catalog to page 9Buchanan crimping tool720 610 4 indent1542 > photo 710610photo 720701 Positioning sleeve POF*720 701 17 Stripper 1.0 mm720 700 128 > photo 720700 photo 720702 photo 720703 Polishing tool720 702 150 Polishing sheet720 703 graining 100019 Li 12 Y 5 x 2.5 mm + Li 12 Y1 x 0.5 + Li 12 Y 4 x (2 x 0.5 D) - 11 Y 0.6/1 KVTest voltage 3500 VFlexing radius 7.5 x D at frequent flexing.D = outside diameter 16.5 mm.Temperature range -30 up to +80 ҰC with flexing cable.Control contact section twisted and shielded in pairs,thus high damping of interference from the outside.The PUR-coating is microbe and...
