Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets

Product catalog summary

Overview: The document outlines specifications for combination units used in electrical distribution, detailing configurations, standards compliance, and dimensions. These units are available in various enclosures and materials, including chemical-resistant options.

Specifications: The units feature CEEtyp and Schuko sockets, compliant with IEC/EN 60 309-1,2 and DIN 49 440 standards. They are available in configurations that adhere to French, Belgian, Danish, British, Swiss, and other national standards. The units are fully wired, enclosed in plastic, and have an IP 44 rating.

Enclosure Types: Different enclosures are described, such as:

Enclosures 657/658/659: Include cable entry options, CEEtyp and Schuko sockets, MCBs, and RCDs.
Enclosures 691/692: Feature multiple socket configurations, available with or without handles.
Enclosures 698: Larger units with more sockets and MCBs for higher power needs.
Enclosures 682/689/685: Offer extensive socket and MCB configurations for complex setups.

Materials and Options: Units are available in standard plastic or chemical-resistant PBT plastic, with options for solid rubber and stainless steel for specific applications.

Key Features: The units include combinations of CEEtyp and Schuko sockets, MCBs, and RCDs for safety, designed for easy installation with knock-out cable entries and terminal block sets.

Customization: Custom versions can be requested to meet specific requirements, including different national standards and material preferences.

Applications: Suitable for environments requiring electrical distribution, including areas exposed to chemicals and aggressive media.

Stainless Steel Units: Specifications for stainless steel combination units and distribution cabinets include various socket types, circuit breakers, and customization options.

Procedures: To order a custom stainless steel unit, add "ES" after the part number. Units are fully wired and enclosed in plastic with an IP 44 rating.

Standards and Compliance: CEEtyp sockets comply with IEC/EN 60 309-1,2 standards, and Schuko sockets comply with DIN 49 440 standards. Units can be made to comply with various national standards.

Recommendations: For price flexibility, components can be freely chosen and configured in various mounting options, including wall-mounted, post-mounted, or with canopies. Suspension-type units are available with features like transparent covers and cable glands.

Key Data from Tables: Part numbers and EAN numbers are provided for each configuration, aiding in identification and ordering. Dimensions and weights are specified for installation planning.

Catalog excerpts

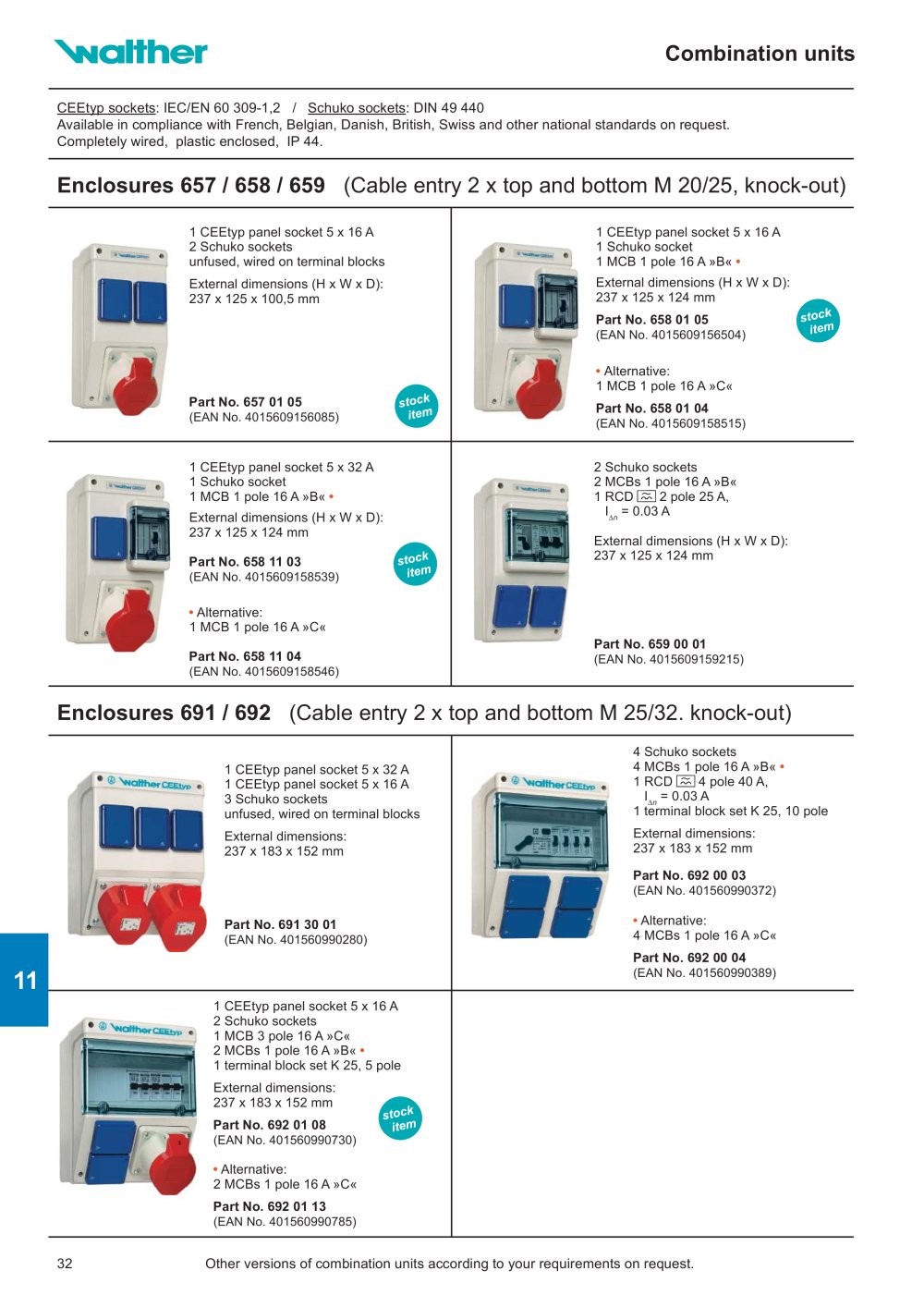

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-1

1 CEEtyp panel socket 5 x 16 A2 Schuko socketsunfused, wired on terminal blocksExternal dimensions (H x W x D):237 x 125 x 100,5 mm 1 CEEtyp panel socket 5 x 16 A1 Schuko socket1 MCB 1 pole 16 A B۫ ? External dimensions (H x W x D):237 x 125 x 124 mm Part No. 658 01 05 > (EAN No. 4015609156504) ? Alternative:1 MCB 1 pole 16 A C۫ Part No. 657 01 05 > (EAN No. 4015609156085) Part No. 658 01 04 > (EAN No. 4015609158515) 1 CEEtyp panel socket 5 x 32 A1 Schuko socket1 MCB 1 pole 16 A B۫ 2 Schuko sockets2 MCBs 1 pole 16 A B۫1 RCD ? 2 pole 25 A, I External dimensions (H x W x D):237 x 125 x 124 mm > ∆ n = 0.03 AExternal dimensions (H x W x D):237 x 125 x 124 mm Part No. 658 11 03 > (EAN No. 4015609158539) ? Alternative:1 MCB 1 pole 16 A C۫ Part No. 659 00 01 Part No. 658 11 04 > (EAN No. 4015609159215) (EAN No. 4015609158546) 1 CEEtyp panel socket 5 x 32 A1 CEEtyp panel socket 5 x 16 A3 Schuko socketsunfused, wired on terminal blocksExternal dimensions:237 x 183 x 152 mm 4 Schuko sockets4 MCBs 1 pole 16 A B۫ 1 RCD 4 pole 40 A, I > բȆ n = 0.03 A1 terminal block set K 25, 10 poleExternal dimensions:237 x 183 x 152 mm Part No. 692 00 03 > (EAN No. 401560990372) Part No. 691 30 01 ? Alternative:4 MCBs 1 pole 16 A C۫ > (EAN No. 401560990280) Part No. 692 00 04 > (EAN No. 401560990389) 1 CEEtyp panel socket 5 x 16 A2 Schuko sockets1 MCB 3 pole 16 A C۫2 MCBs 1 pole 16 A B۫ ? 1 terminal block set K 25, 5 poleExternal dimensions:237 x 183 x 152 mm Part No. 692 01 08 > (EAN No. 401560990730) ? Alternative:2 MCBs 1 pole 16 A C۫ Part No. 692 01 13 > (EAN No. 401560990785)

Open the catalog to page 1

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-2

2 CEEtyp panel sockets 5 x 16 A3 Schuko sockets2 MCBs 3 pole 16 A C۫3 MCBs 1 pole 16 A B۫ ? 1 terminal block set K 25, 5 poleExternal dimensions (H x W x D):370 x 183 x 152 mm Part No. 698 02 02 > (EAN No. 401560993922) ? Alternative:3 MCBs 1 pole 16 A C۫ Part No. 698 02 03 > (EAN No. 4015609156993) 1 CEEtyp panel socket 5 x 32 A1 CEEtyp panel socket 5 x 16 A4 Schuko sockets1 MCB 3 pole 32 A C۫1 MCB 3 pole 16 A C۫4 MCBs 1 pole 16 A B۫ 1 RCD 1 CEEtyp panel socket 5 x 32 A1 CEEtyp panel socket 5 x 16 A2 Schuko sockets1 MCB 3 pole 32 A C۫1 MCB 3 pole 16 A C۫2 MCBs 1 pole 16 A B۫ 1 RCD 4 pole 40...

Open the catalog to page 2

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-3

Chemical resistant enclosure1 CEEtyp panel socket 5 x 16 A2 Schuko socketsunfused, wired on terminal blocksExternal dimensions (H x W x D):237 x 125 x 100,5 mm > Part No. 657 01 05 CB > (EAN No. 4015609291991) Chemical resistant enclosure1 CEEtyp panel socket 5 x 32 A1 CEEtyp panel socket 5 x 16 A3 Schuko socketsunfused, wired on terminal blocksExternal dimensions (H x W x D):237 x 183 x 152 mm Chemical resistant enclosure2 CEEtyp panel sockets 5 x 16 A3 Schuko sockets2 MCBs 3 pole 16 A C۫3 MCBs 1 pole 16 A B۫ 1 terminal block set K 25, 5 poleExternal dimensions (H x W x D):370 x 183 x 152 mm...

Open the catalog to page 3

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-4

1 CEEtyp panel socket 5 x 32 A1 CEEtyp panel socket 5 x 16 A3 Schuko sockets1 MCB 3 pole 16 A C۫3 MCBs 1 pole 16 A B۫1 RCD 1 CEEtyp panel socket 5 x 32 A1 CEEtyp panel socket 5 x 16 A3 Schuko sockets1 MCB 3 pole 16 A C۫3 MCBs 1 pole 16 A B۫1 RCD 4 pole 40A, I 4 pole 40A, I > ∆ n = 0.03 A1 CEEtyp appliance inlet 5 x 32 A External dimensions (H x W x D): 310 x 270 x 270 mm > ∆ n = 0.03 A 2 m supply cable H07RN-F5G6 with CEEtyp plug 5 x 32 A External dimensions (H x W x D): 310 x 270 x 270 mm Part No. 649 30 16 Part No. 649 30 19 > (EAN No. 401560944634) (EAN No. 4015609128662) 1 CEEtyp panel socket...

Open the catalog to page 4

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-5

2 CEEtyp panel sockets 5 x 16 A6 Schuko socketsunfused, wired on terminal blocks1 M 32 cable gland on top1 M 32 blanking plug on bottom External dimensions (H x W x D): 370 x 280 x 130 mm 2 CEEtyp panel sockets 5 x 16 A3 Schuko sockets2 MCBs 3 pole 16 A C۫3 MCBs 1 pole 16 A B۫1 RCD 4 pole 40 A, I > ∆ n = 0.03 A1 terminal block set K 25, 5 pole1 M 32 cable gland on top1 M 32 blanking plug on bottom External dimensions (H x W x D): 370 x 248 x 190 mm Part No. 646 02 01 > (EAN No. 4015609247783) Part No. 647 02 01 > (EAN No. 4015609122608) 1 CEEtyp panel sockets 5 x 32 A1 CEEtyp panel sockets 5...

Open the catalog to page 5

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-6

3 CEEtyp panel sockets 3 x 16 A/4h2 m supply cable H07RN-F3G2,5 with CEEtyp plug 3 x 16 A/4hExternal dimensions (H x W x D):323 x 95 x 72 mm 1 transparent cover (with space for 2.5 MCB below) 2 CEEtyp panel sockets 3 x 16 A/4h1 RCD 2 pole 25 A, I > ∆ n = 0.03 A2 m supply cable H07RN-F3G2,5 with CEEtyp plug 3 x 16 A/4hExternal dimensions (H x W x D):323 x 95 x 72 mm Part No. 640 07 01 Part No. 640 07 02 > (EAN No. 4015609185016) (EAN No. 4015609185023) 1 CEEtyp panel socket 5 x 16 A2 Schuko sockets2 m supply cable H07RN-F5G2,5 with CEEtyp plug 5 x 16 A External dimensions (H x W x D): 323 x 95...

Open the catalog to page 6

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-8

External dimensions (H x W x D):590 x 315 x 210 mm 1 CEEtyp panel socket 5 x 16 A2 Schuko sockets1 MCB 3 pole 16 A C۫2 MCB 1 pole 16 A B۫1 RCD 4 pole 40 A, I > ∆ n = 0.03 A Part No. 6UP 01 30 (EAN No. 4015609351985) > 1 CEEtyp panel socket 5 x 16 A4 Schuko sockets 1 MCB 3 pole 16 A C۫4 MCB 1 pole 16 A B۫1 RCD 4 pole 2 Schuko sockets 2 MCB 1 pole 16 A B۫1 RCD 2 pole 40 A, I > ∆ n = 0.03 AExternal dimensions (H x W x D):590 x 420 x 210 mm 25 A, I > ∆ n = 0.03 A Part No. 6UP 01 01 (EAN No. 4015609351992) Part No. 6A2 00 01 (EAN No. 4015609389919)1 CEEtyp panel socket 5 x 16 A1 Schuko socket 1 MCB...

Open the catalog to page 8

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-9

Wall mounted, only with canopyՕ Mounted on a post, with canopy and back plate Back plate with or without side panelsՕ Complete with stand, back plate or canopy Turquoise, signal orange or mixed coloursՕ Standard steel, stainless steel or mixed With or without mounting bracket with pressure air valve > Wall mount combination unit with canopy Stand 60 x 40 > with mounted threaded plate 1000 x 300 x 150 620WL01ET 5320 287666Stand 60 x 60 > with mounted threaded plate 900 x 300 x 170 620WL02ET 7300 292578 > for combination: series 657 - 659170 x 221 x 170 620WL31ET 720 297887 series 680190 x 385...

Open the catalog to page 9

Socket outlet combinations, free standing units, suspension-type combinations, stainless steel distribution cabinets-10

1 Suspension combination unit with suspension eye hook and 2 M25 cable glands (with multiple gland) and yellow handle at the bottom2 Schuko sockets 2 Schuko sockets 1 Partition wall 1 TMCB junction box NF1 UMCB junction box CAT. 5 8 UP OK Protection degree IP 00 Weight: 1.6 kg 1 Suspension combination unit with transparent cover 4.5 MCB with suspension eye hook and with M25 cable gland and yellow handle at the bottom1 CEE panel socket 5 x 16 A6 Schuko sockets1 RCD 4 pole 40 A, I > ∆ n = 0.03 A Weight: 2.3 kg > Front Back Front Back Part No. 6H0 88 01 (EAN No. 4015609 347735) Part No. 6H1 01 01...

Open the catalog to page 10
