Spray Booths - 1

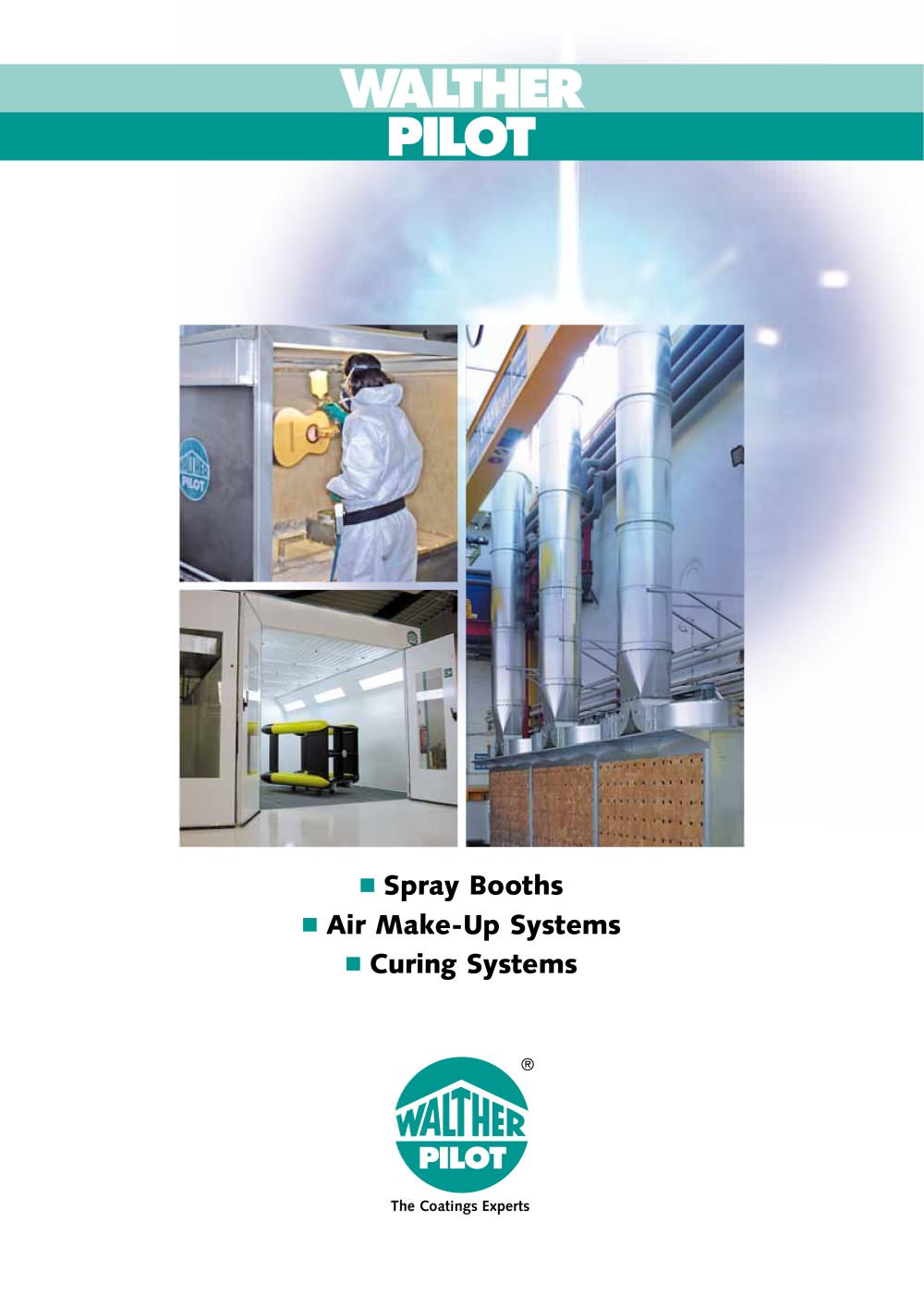

PI ILOT ■ Spray Booths ■ Air Make-Up Systems ■ Curing Systems The Coatings Experts

Open the catalog to page 1
Spray Booths - 2

lave energy A few helpful hints Summary of the business and environmental advantages The spray booth itself is generally the largest energy user, since great volumes of pre-heated fresh air will have to be supplied to make up for contaminated exhaust air. These air volumes cannot be reduced at will, since health and safety standards set down by law have to be observed. A paint spray booth must provide adequate air exchange in order to control the concentration of flammable vapors. Reducing air volumes and energy needs Direct firing with gas line burners (installed directly in the booth's...

Open the catalog to page 2
Spray Booths - 3

Extra large booth for finishing busses Enclosures for Paintin WALTHER PILOT engineers booths using a modular system to match the application exactly. The effort is worth-while particularly when maximum pro-cess reliability and climate control are of major interest. What's more, energy savings may also be achieved. ijj -1 r Model 90 K booth - Enclosed special-purpose Enclosure for dip coating system Other enclosures WALTHER PILOT offers tailor-made systems to meet your business needs. In addition to standard booths, we can engineer custom solutions on request. Special-purpose booths for...

Open the catalog to page 3
Spray Booths - 4

Energy-efficient equipment for mass production High process reliability in coating WALTHER PILOT delivers not only the water-wash exhaust system, but the matching enclosure and air distributor ceiling, too. This ensures that only filtered air enters the painting space, making dust-induced blemishes vir-tually impossible. A further advantage: The spray pattern is not disturbed or deflected by drafts. The painting system used at the Braun und Schirm GmbH & Co. KG mechanical engineering company, located in Nalbach-Krprich, Germany, comprises two spray booths and a drying booth. The system...

Open the catalog to page 4
Spray Booths - 5

Energy-efficient equipment for mass productio Painting system for finishing machine components The parts are first brought into the cleaning section on the overhead conveyor. This unit works with an energy-efficient gas burner. Ventilation power is coordinated with the use of the spray gun. Electric motors under fre-quency inverter control enable regulation of the make-up and exhaust air volumes to meet momentary needs. The conveyor system with multiple tracks makes for high part density in the drying zone. The service units involved are located above the plant to save space. Multi-track...

Open the catalog to page 5
Spray Booths - 6

pace-saving combined booths There are three sries to choose from: PILOT Smartline ■ PILOT Smartline Highly affordable standardized booths with just a few variations PILOT Trendline Economical booths with a large num-ber of variations and options PILOT Profiline Paint booths for industrial use, with virtually no restrictions in terms of dimensions and options Maximum process reliability ■ No intrusion of dust into the booth ■ Fresh air filters - filter class EU 5 ■ Fast filter changes - multilayer filters made of paper ■ Indicators for filter change ■ Draft-free airflow for spraying and...

Open the catalog to page 6
Spray Booths - 7

Customized industrial Dooths Space-saving combine* PILOT Trendline PILOT Profiline The dimensions for length, width and height are graduated so that all sizes can be combined as desired. Exact booth dimensioning makes it possible to account for all the major planning parameters, such as the nature of the parts to be finished, the building's structural design, and optimizing manufacturing sequences. Excellent value for money: Extras that often have to be purchased separately are already included in our price. The booths in the PILOT Profiline series are engineered for heavy use. This is why...

Open the catalog to page 7
Spray Booths - 8

General Catalog 2011/12 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:15.00pt "Arial", sans-serif; } .font4 { font:19.00pt "Arial", sans-serif; } en-face industrial Model 90 W or 90 WS Model 90 K Model 90 W The modern modular system makes it possible to combine the basic elements, 1.0 and 1.5 m wide, to form any desired working width. Model 90 WS Model 90 WS features two lateral deflector panels that can be adjusted to optimize...

Open the catalog to page 8
Spray Booths - 9

Model 900 Cost-effective exhaust chambers for installation by the owner The modular concept makes the Sries 900 exhaust chambers highly affordable. There are four basic models that can be combined at will to produce any desired working width. These units can accept modern multilayer paint arrestors made of recycled paper. High particle absorption capacity cuts downtime. Space-saving transportation: the costs are remarkably low. ^^^^^^^^^^^^^^ Small, cost-effective bench booths ■ Convenient working situation ■ Top-quality finish, attractive price ■ The exhaust duct can be mounted on the...

Open the catalog to page 9
Spray Booths - 10

Bench booths Portable exhaust chambers The base lments in the 2000 S驩ries, 1.11 m and 1.50 m wide, can be combined to form spray tables of any desired working width. The frame swings downward for especially quick filter changing. It also ensures that the mat is held firmly in place. Basic model: ■ Booth without stand or workbench Optional: ■ Stands or workbenches in the dimensions required Mobile exhaust box Overspray arrestors: multilayer filter mats made of recycled paper Advantages: Space-saving, high-performance design Exhaust can be mounted on the left- or right-hand side Hinged air...

Open the catalog to page 10
Spray Booths - 11

rater-wash spray booths Booth technology based on the water injection principle Paint overspray separation with fan nozzles The water injection filtration concept developed by WALTHER PILOT guarantees both clean, high-quality production and pure air. With less than 3 mg of solids content per cubic meter of air, your operations comply with pollution control and occupational health requirements. Triple filtration is standard in these water-wash spray booths. ■ First stage: Water curtain for rear and side panels ■ Second stage: Water injection system ■ Third stage: Boxes with filter material...

Open the catalog to page 11
