PILOT Premium- Quality without compromises

Product catalog summary

Overview
The document provides detailed information about the PILOT Premium spray gun system by WALTHER Spritz- und Lackiersysteme GmbH, highlighting its features, technical specifications, and advantages. The system includes manual and automatic spray guns, material pressure tanks, paint mix tanks, agitators, spray booths, and drying equipment.

Specifications
The PILOT Premium system is designed with a dynamic and ergonomic structure, offering high-quality surface finishes using HVLPPlus technology. The system includes a newly developed gravity-feed cup with a full-surface, easily removable sieve insert. The Green Gun variant is made from top-quality plastic, featuring a high-gloss polished version for easy cleaning, a large material outlet, and excellent flow characteristics.

Technical Data

Capacity: 600 ml for the gravity-feed cup, 750 ml for the Mix'n-Spray-Cup.
Nozzle/air cap systems range from 0.3 mm to 3.5 mm in diameter.
Net weight: 470 g for the gravity feed gun, 490 g for the material connection gun.
Material pressure and atomiser pressure: max. 8 bar.

Performance and Efficiency
The PILOT Premium offers high transfer efficiency, reducing material usage by up to 30%. The HVLPPlus technology combines the benefits of HVLP and conventional atomisation, ensuring fine results and material savings. The system is compatible with the EU VOC Directive due to its high transfer efficiency.

Advantages

Innovative nozzle/air cap system for fine atomisation.
Ergonomic design with stainless steel wetted parts.
Solvent-resistant packing elements and adjustable needle packing.
Suitable for both left-handed and right-handed users.
Includes ring spanner, open-ended spanner, and special gun grease.

Test Results
According to EN 13966-1 standard test procedures, the Fraunhofer IPA measured transfer efficiencies significantly higher than the 65% specified for HVLP. The system is effective for spraying paints, lacquers, adhesives, sealants, foodstuffs, and separating agents, including waterborne materials.

Conclusion
The PILOT Premium spray gun system is a cost-effective solution that offers high efficiency and quality, making it suitable for various industrial applications. Its innovative design and technology ensure reduced material usage and compliance with environmental standards.

Catalog excerpts

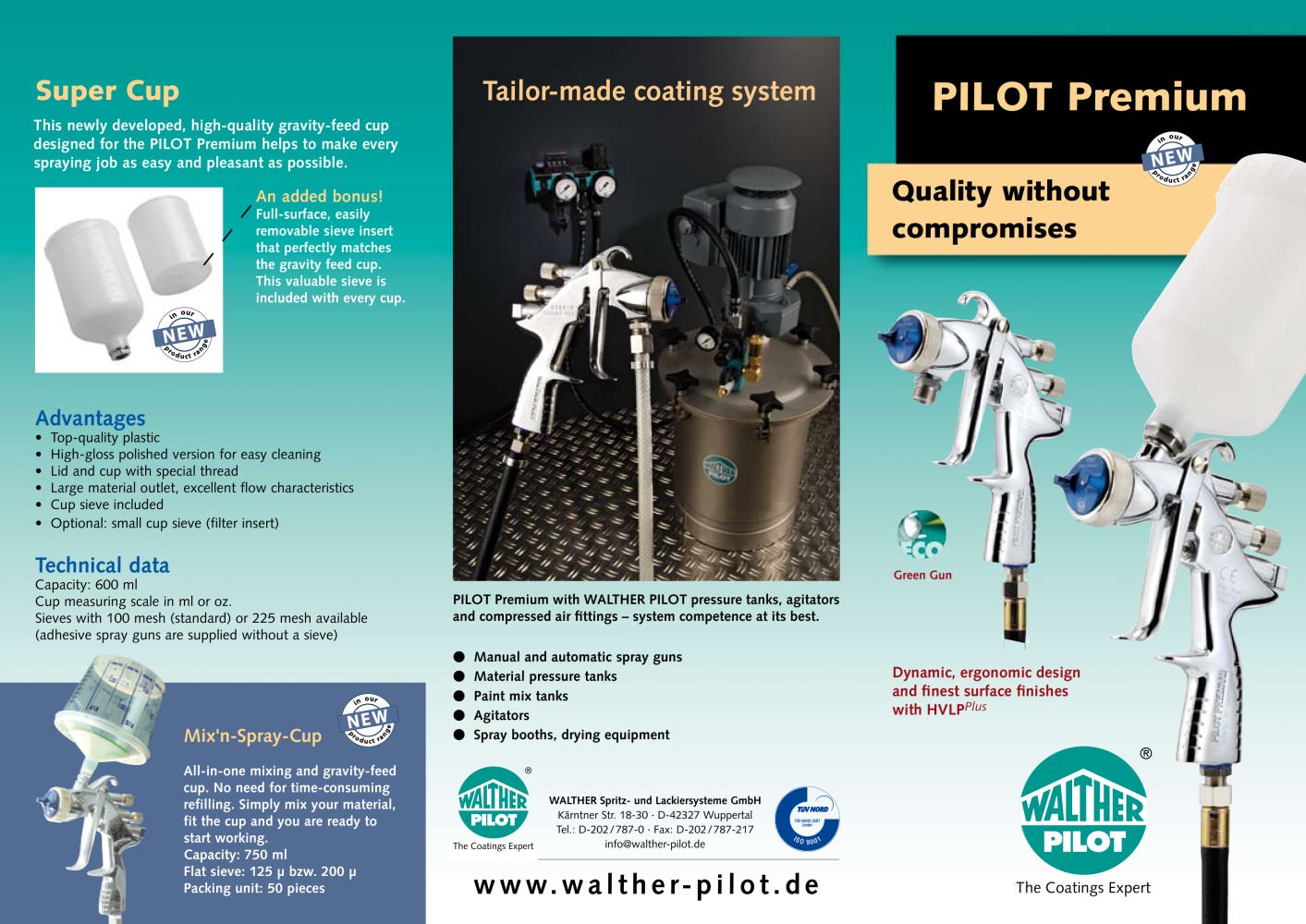

PILOT Premium- Quality without compromises-1

WALTHER Spritz- und Lackiersysteme GmbH Kärntner Str. 18-30 · D-42327 Wuppertal Tel.: D-202/787-0 · Fax: D-202/787-217 [email protected] www.wa l t h e r- p i l o t . d e ð· Manual and automatic spray guns ð· Material pressure tanks ð· Paint mix tanks ð· Agitators ð· Spray booths, drying equipment PILOT Premium Quality without compromises PILOT Premium with WALTHER PILOT pressure tanks, agitators and compressed air fittings – system competence at its best. Dynamic, ergonomic design and finest surface finishes with HVLPPlus Super Cup This newly developed, high-quality gravity-feed cup designed for the PILOT Premium helps to make every spraying job as easy and pleasant as possible. An added bonus! Full-surface, easily removable sieve insert that perfectly matches the gravity feed cup. This valuable sieve is included with every cup. Green Gun Tailor-made coating system Advantages • Top-quality plastic • High-gloss polished version for easy cleaning • Lid and cup with special thread • Large material outlet, excellent flow characteristics • Cup sieve included • Optional: small cup sieve (filter insert) Technical data Capacity: 600 ml Cup measuring scale in ml or oz. Sieves with 100 mesh (standard) or 225 mesh available (adhesive spray guns are supplied without a sieve) Mix'n-Spray-Cup All-in-one mixing and gravity-feed cup. No need for time-consuming refilling. Simply mix your material, fit the cup and you are ready to start working. Capacity: 750 ml Flat sieve: 125 ì bzw. 200 ì Packing unit: 50 pieces The Coatings Expert The Coatings Expert

Open the catalog to page 1

PILOT Premium- Quality without compromises-2

Super Models Test results to be proud of You have a choice of three versions – perfectly matched to your requirements: PILOT Premium-HVLP: green air cap PILOT Premium-HVLPPlus: blue air cap PILOT Premium (conventional spraying): silver air cap According to the standard test procedure EN 13966-1, the following transfer efficiencies were measured by the Fraunhofer IPA (29.07.2009): Spraying materials Paints and lacquers, adhesives, sealants, foodstuffs, separating agents. Waterborne materials can be sprayed without problems. Advantages • New nozzle/air cap system for the finest atomisation and...

Open the catalog to page 2

PILOT Premium- Quality without compromises

PILOT Premium- Quality without compromises
