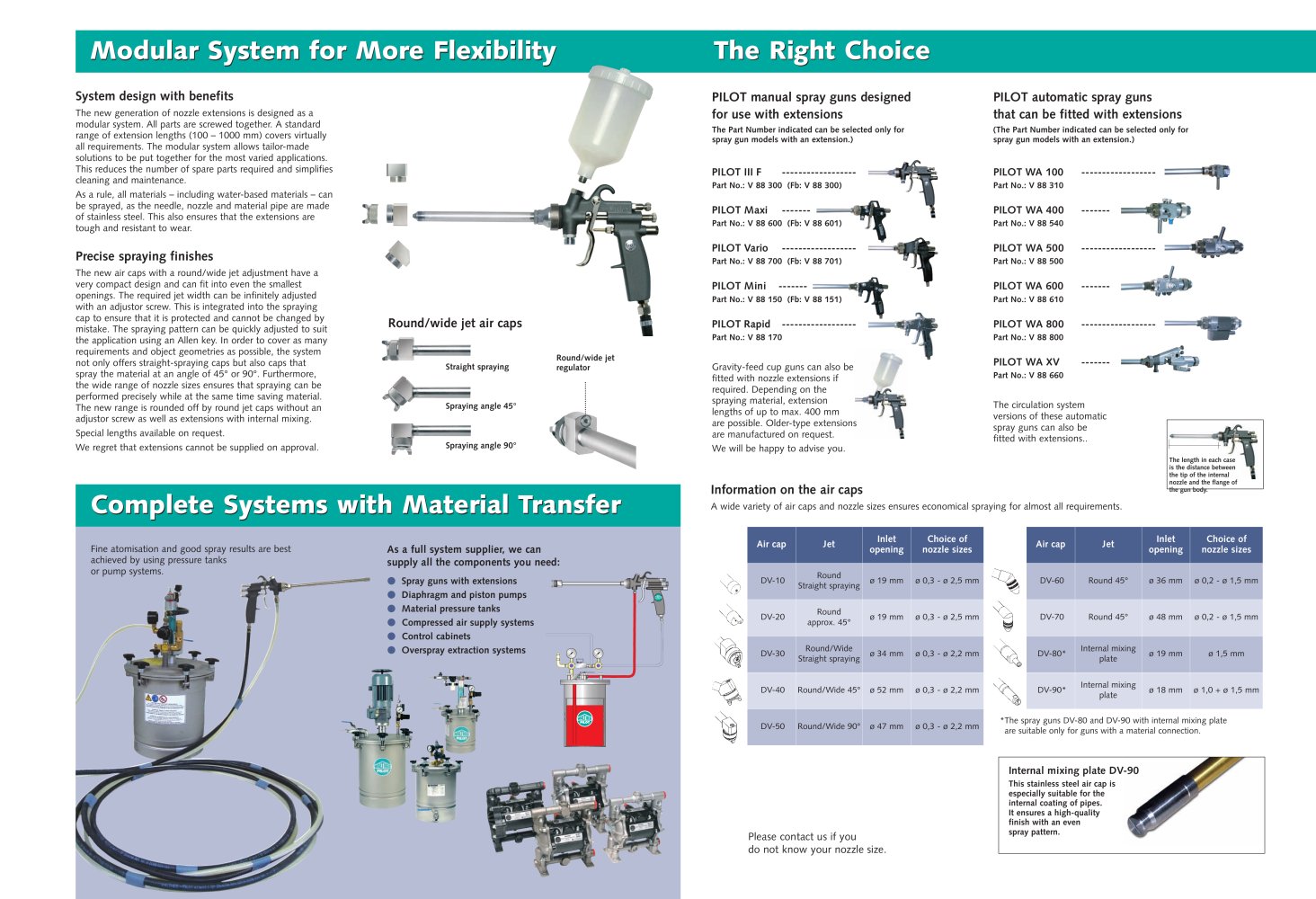

Nozzle Extensions
2Pages

Tt jiar Dr mor Flexibility System design with benefits The new gթnration of nozzle extensions is designed as a modular system. All parts are screwed together. A standard range of extension lengths (100 - 1000 mm) covers virtually all requirements. The modular system allows tailor-made solutions to be put together for the most varied applications. This reduces the number of spare parts required and simplifies cleaning and maintenance. As a rule, all materials - including water-based materials - can be sprayed, as the needle, nozzle and material pipe are made of stainless steel. This also ensures that the extensions are tough and resistant to wear. Precise spraying finishes The new air caps with a round/wide jet adjustment have a very compact design and can fit into even the smallest openings. The required jet width can be infinitely adjusted with an adjustor screw. This is integrated into the spraying cap to ensure that it is protected and cannot be changed by mistake. The spraying pattern can be quickly adjusted to suit the application using an Allen key. In order to cover as many requirements and object geometries as possible, the system not only offers straight-spraying caps but also caps that spray the material at an angle of 45° or 90°. Furthermore, the wide range of nozzle sizes ensures that spraying can be performed precisely while at the same time saving material. The new range is rounded off by round jet caps without an adjustor screw as well as extensions with internal mixing. Special lengths available on request. We regret that extensions cannot be supplied on approval. Round/wide jet air caps 3F* Straight spraying PILOT manual spray guns designed for use with extensions The Part Number indicated can be selected only for spray gun models with an extension.) PILOT automatic spray guns that can be fitted with extensions (The Part Number indicated can be selected only for spray gun models with an extension.) PILOT III F Part No.: V 88 300 (Fb: V 88 300) PILOT WA 100 Part No.: V 88 310 PILOT WA 400 Part No.: V 88 540 PILOT WA 500 Part No.: V 88 500 PILOT WA 600 Part No.: V 88 610 PILOT WA 800 Part No.: V 88 800 PILOT WA XV Part No.: V 88 660 PILOT Maxi Part No.: V 88 600 (Fb: V 88 601) PILOT Vario Part No.: V 88 700 (Fb: V 88 701) PILOT Mini Part No.: V 88 150 (Fb: V 88 151) Round/wide jet regulator PILOT Rapid Part No.: V 88 170 Gravity-feed cup guns can also be fitted with nozzle extensions if required. Depending on the spraying material, extension lengths of up to max. 400 mm Spraying angle 45° The circulation system versions of these automatic spray guns can also be fitted with extensions.. are possible. Older-type extension s Spraying angle 90° are manufactured on request. We will be happy to advise you. Information on the air caps A wide variety of air caps and nozzle sizes ensures economical spraying for almost all requirements. The length in each case is the distance between the tip of the internal nozzle and the flange of the gun body. Air cap Jet Inlet opening Choice of nozzle sizes Air cap Jet Inlet opening Choice of nozzle sizes DV-10 Round Straight spraying 0 19 mm 0 0,3 - 0 2,5 mm DV-60 Round 45° 0 36 mm 0 0,2 - 0 1,5 mm DV-20 Round approx. 45° 0 19 mm 0 0,3 - 0 2,5 mm DV-70 Round 45° 0 48 mm 0 0,2 - 0 1,5 mm DV-30 Round/Wide Straight spraying 0 34 mm 0 0,3 - 0 2,2 mm DV-80* Internal mixing plate 0 19 mm 0 1,5 mm DV-40 Round/Wide 45° 0 52 mm 0 0,3 - 0 2,2 mm DV-90* Internal mixing plate 0 18 mm 0 1,0 + 0 1,5 mm DV-50 Round/Wide 90° 0 47 mm 0 0,3 - 0 2,2 mm *The spray guns DV-80 and DV-90 with internal mixing plate are suitable only for guns with a material connection. Please contact us if you do not know your nozzle size. Internal mixing plate DV-90 This stainless steel air cap is especially suitable for the internal coating of pipes. It ensures a high-quality finish with an even spray pattern.

1TT 1 PILOT PILOT Spשcial Solutions Extensions with a small outer diameter Spcial extensions with an outer diameter of only 8 mm for coating surfaces that are particularly difficult to access can be made to your specifications. We will be happy to advise you on tailor-made solutions for your business The Pipe Crawler The "pipe crawler" is ideally suited for the internal coating of long pipes. The automatic spray gun has its air and material connections arranged axially, allowing it to be drawn through the pipe on a special carriage. WALTHER PILOT - the Systematic Product Range Nozzle...
