Catalog excerpts

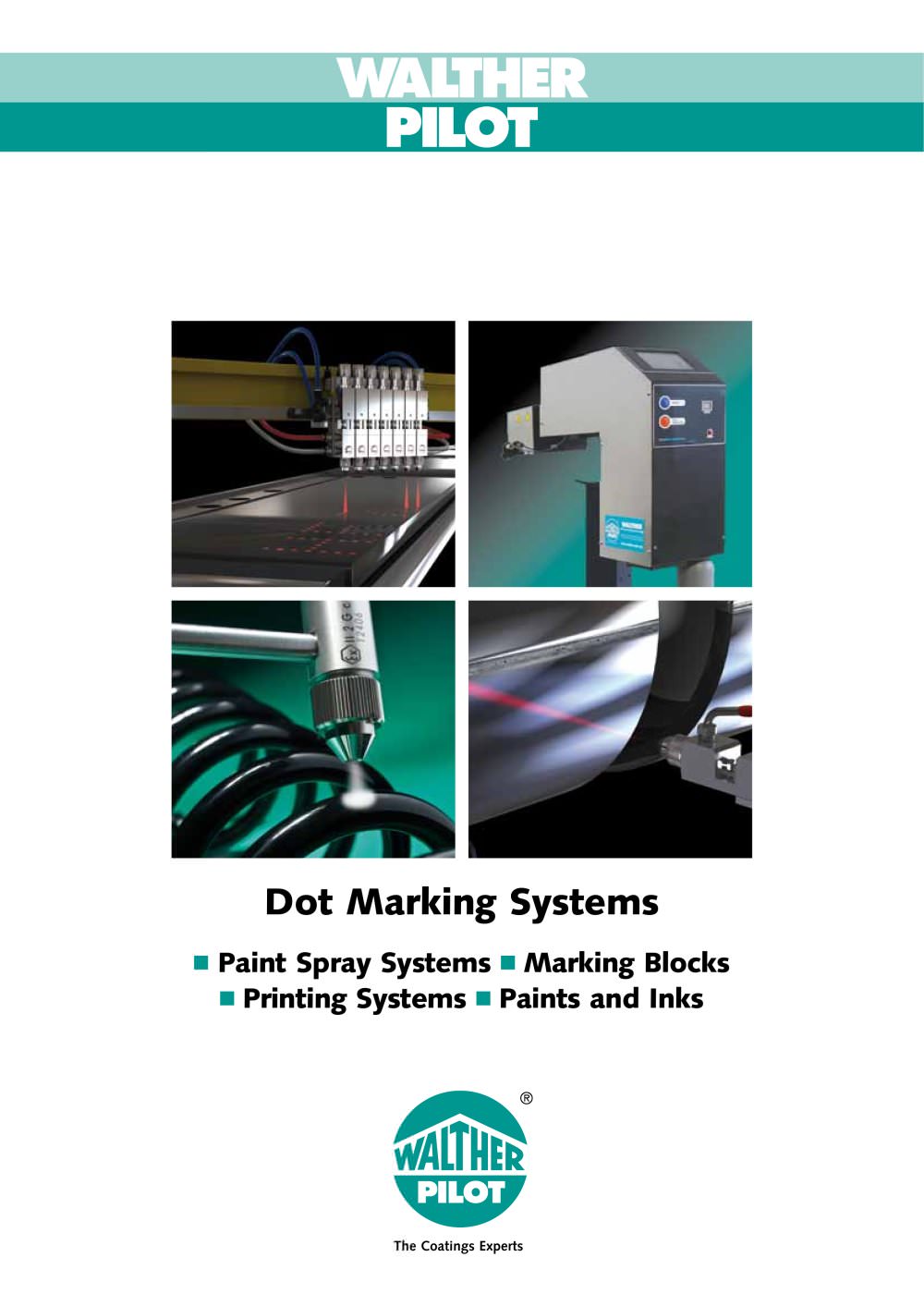

Dot Marking Systems - 1

T/il L J 1 M > LOT Dot Marking Systems ■ Paint Spray Systems ■ Marking Blocks ■ Printing Systems ■ Paints and Inks The Coatings Experts

Open the catalog to page 1
Dot Marking Systems - 2

Colored markings to indicate quality standards or for process control purposes are essential components in modern production systems. WALTHER PILOT uses tailor-made systems and high-qua-lity components to create exactly the conditions you expect, in the interest of future-proof marking technology. within the City of Wuppertal. Spray guns and marking blocks are manufactured here. Pressure tanks and spray booths are manufactured at the Neunkirchen-Struthtten plant in the Siegerland region. If you have questions, please contact: Holger Nickel: Technology +49 / 202 / 787-2279 Robby Ritter:...

Open the catalog to page 2
Dot Marking Systems - 3

A wealth of application options Marking ■ Marking to document inspections of weldments in sheet metal and pipe ■ Marking rejects ■ Marking complying parts ■ Marking following leak testing ■ Marking as an orientation aid (indicating the installation position) ■ Identifying similar-looking but differing models ■ Marking cutting and bending lines ■ Marking lines used for manufacturing purposes Substrates: metal, plastic, glass, paper, cellulose, cork, stone, ceramics, wood, cardboard, rubber, textiles Contents Dot and bar codes with paint spray technology Page 4 The applications for dot or bar...

Open the catalog to page 3
Dot Marking Systems - 4

Dot and bar codes with paint spray technology T Select 1 System / Model V 45 ■ Small spray system with miniature material pressure tanks, to apply about 3,500 dots (dots 5 mm in diameter) ■ Simple operation, low maintenance ■ For dots of from 3 to 30 mm in diameter ■ A solenoid valve is used to trigger the spray gun. WALTHER PILOT can also deliver the controls, upon request ■ We would be happy to provide planning and assembly services, right through to integrating the system into your assembly line. © 3= o Equipment O Marking spray gun, Model 20-360, with pull rod for manual activation...

Open the catalog to page 4
Dot Marking Systems - 5

Select 2 System / Model V 750 ■ Small spray system with pressure cup, to apply about 55,000 dots (dots 5 mm in diameter) or 3,300 meters of lines (5 mm wide) ■ Compact design for simple integration into the process ■ Simple operation, low maintenance ■ For dots of from 3 to 30 mm in diameter ■ A solenoid valve is used to trigger the spray gun. WALTHER PILOT can also deliver the controls, upon request ■ We would be happy to provide planning and assembly services, right through to integrating the system into your assembly line. Equipment O Marking spray gun, Model 20-360, with pull rod for...

Open the catalog to page 5
Dot Marking Systems - 6

Dot and bar codes with paint spray technology Select 3 System / Model V 1000 ■ Small spray system with miniature material pressure tanks, to apply about 70,000 dots (dots 5 mm in diameter) or 4,500 meters of lines (5 mm wide) ■ Compact design for simple integration into the process ■ Simple operation, low maintenance ■ For dots of from 3 to 30 mm in diameter ■ A solenoid valve is used to trigger the spray gun. WALTHER PILOT can also deliver the controls, upon request. ■ We would be happy to provide planning and assembly services, right through to integrating the system into your assembly...

Open the catalog to page 6
Dot Marking Systems - 7

Select 4 - recirculating / Model V 1000 Equipment O Marking spray gun, Model 20-365, with pull rod for manual activation (e.g. for spray trials), 1 1 1 ■ This system is preferred for use in particular with materials which will settle out or dry quickly. This is why these materials are kept in circulation. A dual dia-phragm pump is used for this purpose. ■ This is a small spray system with a material pressure tank, to apply about 70,000 dots (dots 5 mm in diameter) or 4,500 meters of lines (5 mm wide) ■ Simple operation, low maintenance ■ For dots of from 3 to 30 mm in diameter ■ A solenoid...

Open the catalog to page 7
Dot Marking Systems - 8

Dot and bar codes with paint spray technology Select 5 - flushable / Model V 3003 ■ Systems of this type are always used whenever the nozzle and air cap are exposed to extreme material build-up. This is why the system is fitted with an additional flushing valve. After the spray cycle a mix of air and cleaning agent is pressed into the circular gap between the nozzle and the air cap. ■ This is a small spray system with a material pressure tank, to apply about 210,000 dots (dots 5 mm in diameter) or 13,500 meters of lines (5 mm wide) o ■ Simple operation, low maintenance ■ For dots of from 3...

Open the catalog to page 8
Dot Marking Systems - 9

Select 6 - recirculating - flushable / Model V 8008 ■ This system is designed to process materials which will settle out or dry quickly. A dual diaphragm pump is used to keep these materials in circulation. A supplementary flushing feature prevents performance losses due to material build-up collecting at the nozzle and air head. ■ This is a spray system for larger quantities of materials, with a material pressure tank sufficient to apply about 37,000 meters of lines (5 mm wide) and an additional material pressure tank for the cleaning agent. ■ With flushing valve to clean the nozzle on the...

Open the catalog to page 9
Dot Marking Systems - 10

Dot and bar codes: system configuration to customer spcification We have the answers whenever complex system configurations are required. o (r Connection schematic for special-design marking system: O Electro-pneumatic control cabinet © Fill level measurement equipment © Material pressure tank with agitator Control cabinets and control technology We will design a configuration matched to your specific production requirements. ■ Pneumatic control cabinet ■ Electro-pneumatic control cabinet ■ Electrical control cabinet All the components required to integrate these control elements into the...

Open the catalog to page 10
Dot Marking Systems - 11

Application technology, material delivery, spray booths, function monitoring Our equipment and services: ■ Material delivery technology to suit spcifie require-ments: Pressure tank with agitator and fill level measurement sensors, diaphragm pumps for materials recirculation, and all the required hoses. ■ Cabinets for the materials delivery technology including, if indicated, controls for regulated exhaust of noxious gases or fumes that could be released when pressure tanks are opened; sumps for use when handling hazardous liquids. ■ Marking guns with flushing system to clean the outside of...

Open the catalog to page 11
