Portal Machining Centers - Gantry Design

PMC 4500 AG-M2
- Setup Dimensions: Width 3500 mm, Length 27000 mm
- Clearance: Width 4380 mm, Height 3865 mm
- Power: 80 kW
- Head Travel: 1500 mm
- Control System: SINUMERIK 840 D
- Year Built: 2000
20-10 GM 300 NC
- Setup Width: 3000 mm
- Clearance: Width 4200 mm, Height 3000 mm
- Power: 120 kW
- Control System: SINUMERIK 8MC
- Year Built: 1981

Portal Machining Centers - Table Design

17P-10 FP 250 NC
- Table Width: 2500 mm
- Setup Length: 7000 + 5000 mm
- Clearance: Width 3000 mm, Height 2500 mm
- Power: 75 kW
- Control System: SINUMERIK 8MC
- Year Built: 1985
17-10 FP 250 NC
- Table Width: 2500 mm
- Setup Length: 5000 + 7000 mm
- Clearance: Width 2850 mm, Height 2500 mm
- Power: 75 kW
- Control System: SINUMERIK 8MC
- Year Built: 1988

Horizontal Machining Centers

MultiTec 3000 HC
- Pallet Sizes: 1500x1500 mm, 1500x2500 mm
- Clearance Height: 3000 mm
- Power: 45 kW
- Control System: SINUMERIK 840 D
- Year Built: 1999
Bohle W2.140
- Pallet Size: 900x1250 mm
- Power: 30 kW
- Control System: SINUMERIK 850
- Year Built: 1989

Grinding Machine

30 SZ 4025 X
- Table Width: 2000 mm
- Double Table: 4500 + 4000 mm
- Clearance Width: 2500 mm
- Grinding Length: 9500 mm
- Grinding Height: 1250 mm
- Power: 22 kW
- Control System: SINUMERIK 850 M
- Year Built: 1988

Catalog excerpts

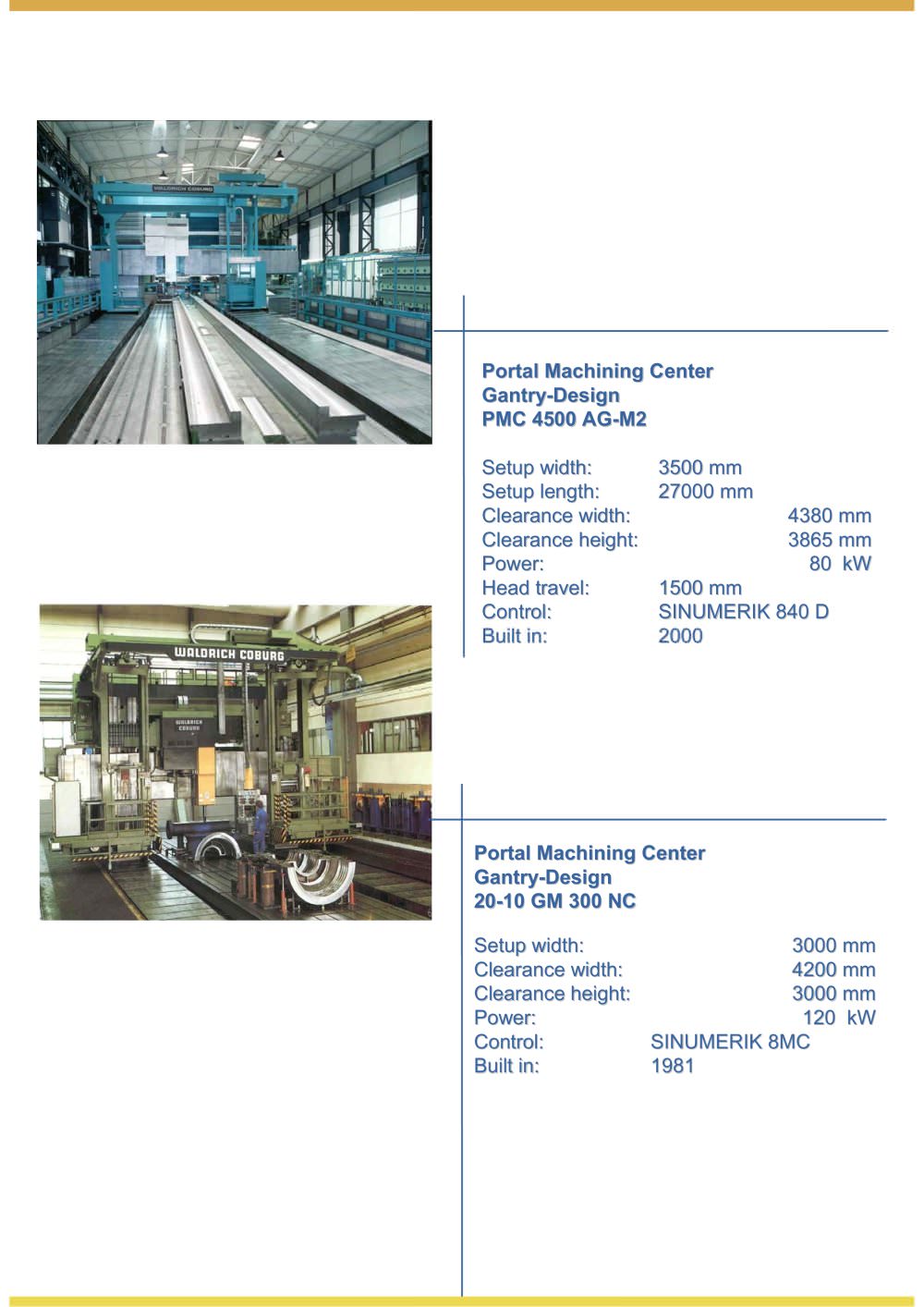

Portal Machining CenterPortal Machining CenterGantryGantry--DesignDesignPMC 4500 AGPMC 4500 AG--M2M2 Setup width:Setup width:3500 mm3500 mmSetup length:Setup length:27000 mm27000 mmClearance width:Clearance width:4380 mm4380 mmClearance height:Clearance height:3865 mm3865 mmPower:Power:80 kW80 kWHead travel:Head travel:1500 mm1500 mmControl:Control:SINUMERIK 840 DSINUMERIK 840 DBuilt in:Built in:20002000 Portal Machining CenterPortal Machining CenterGantryGantry--DesignDesign2020--10 GM 300 NC10 GM 300 NC Setup width:Setup width:30003000mmmmClearance width:Clearance width:4200 mm4200 mmClearance height:Clearance height:3000 mm3000 mmPower:Power:120 kW120 kWControl:Control:SINUMERIK 8MCSINUMERIK 8MCBuilt in:Built in:19811981 >
