WEC/WDEC410 | Electrodeless Conductivity Controllers
4Pages

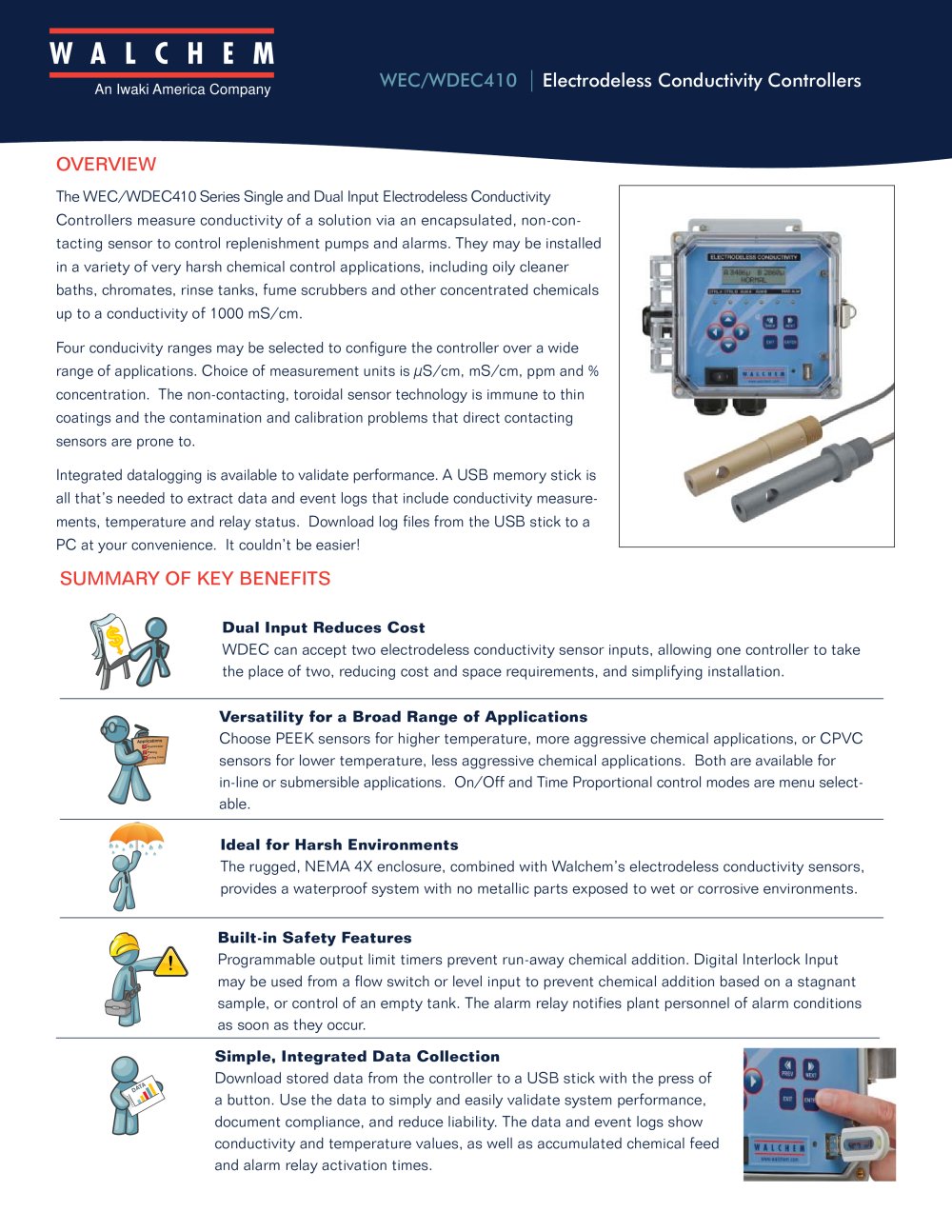

An Iwaki America Company WEC/WDEC410 | Electrodeless Conductivity Controllers OVERVIEW The WEC/WDEC410 Series Single and Dual Input Electrodeless Conductivity Controllers measure conductivity of a solution via an encapsulated, non-contacting sensor to control replenishment pumps and alarms. They may be installed in a variety of very harsh chemical control applications, including oily cleaner baths, chromates, rinse tanks, fume scrubbers and other concentrated chemicals up to a conductivity of 1000 mS/cm. Four conducivity ranges may be selected to configure the controller over a wide range of applications. Choice of measurement units is μS/cm, mS/cm, ppm and % concentration. The non-contacting, toroidal sensor technology is immune to thin coatings and the contamination and calibration problems that direct contacting sensors are prone to. Integrated datalogging is available to validate performance. A USB memory stick is all that’s needed to extract data and event logs that include conductivity measurements, temperature and relay status. Download log files from the USB stick to a PC at your convenience. It couldn’t be easier! SUMMARY OF KEY BENEFITS Dual Input Reduces Cost WDEC can accept two electrodeless conductivity sensor inputs, allowing one controller to take the place of two, reducing cost and space requirements, and simplifying installation. $ Applications Wastewater Plating Cooling Tower Versatility for a Broad Range of Applications Choose PEEK sensors for higher temperature, more aggressive chemical applications, or CPVC sensors for lower temperature, less aggressive chemical applications. Both are available for in-line or submersible applications. On/Off and Time Proportional control modes are menu selectable. Ideal for Harsh Environments The rugged, NEMA 4X enclosure, combined with Walchem’s electrodeless conductivity sensors, provides a waterproof system with no metallic parts exposed to wet or corrosive environments. Built-in Safety Features Programmable output limit timers prevent run-away chemical addition. Digital Interlock Input may be used from a flow switch or level input to prevent chemical addition based on a stagnant sample, or control of an empty tank. The alarm relay notifies plant personnel of alarm conditions as soon as they occur. TA DA Simple, Integrated Data Collection Download stored data from the controller to a USB stick with the press of a button. Use the data to simply and easily validate system performance, document compliance, and reduce liability. The data and event logs show conductivity and temperature values, as well as accumulated chemical feed and alarm relay activation times.

WEC/WDEC410 Series | Electrodeless Conductivity Controller 3-Stage Washer Typical Installation pH/ORP Controlle r Disinfection Controller Electrodeless Conductivity Controller WAL CHE M Single or Dual Input • One unit monitors two baths with control and alarm relay for each, resulting in considerable cost savings Self-diagnostics • Monitor performance without taking the unit off-line, permitting faster troubleshooting and less downtime Electrodeless sensor design • Measures accurately over a wide dynamic range can can be used in applications from 50 μS to 1000 mS USB Flashstick Support •...

Input Power Input Signals Temperature Compensation: Interlock (optional): Isolated, dry contact closure required (i.e. reed switch) AGENCY CERTIFICATIONS Note: For EN61000-4-6,-3 the controller met performance criteria B. *Class A equipment: Equipment suitable for use in establishments other than domestic, and those directly connected to a low voltage (1 00-240 VAC) power supply network which supplies buildings used Internally powered relays switching line voltage All relays are fused together in one group, total current for this group must not exceed 6A Internally powered Fully isolated...

ORDER INFORMATION voltage output sensor 1 USB voltage output sensor 1 sensor 2 USB 5 = Hardwired, cable glands SENSOR (SELECT 2 IN ALPHABETICAL ORDER FOR WDEC) A = Submersion PEEK sensor B = In-line PEEK sensor w/SS adapter C = Submersion CPVC sensor D = In-line CPVC sensor w/CPVC adapter E = Submersion PEEK sensor F = In-line PEEK sensor w/SS adapter G = Submersion CPVC sensor H = In-line CPVC sensor w/CPVC adapter I = Submersion PEEK sensor J = In-line PEEK sensor w/SS adapter K = Submersion CPVC sensor L = In-line CPVC sensor w/CPVC adapter M = Submersion PEEK sensor O = In-line PEEK...
