WDB/WDC400 | Dual Input Boiler Controllers/ Condensate Monitors
4Pages

{{requestButtons}}

Catalog excerpts

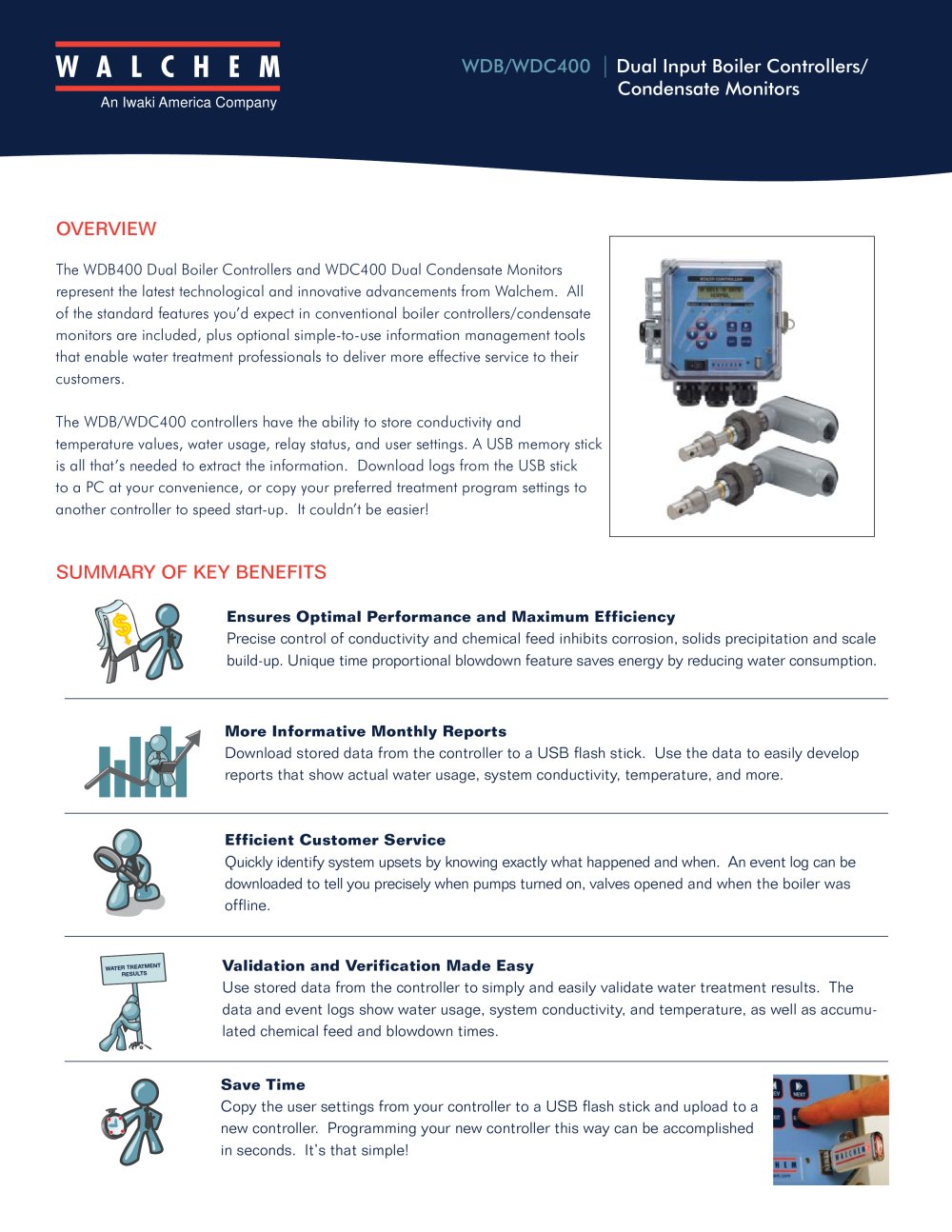

WDB/WDC400 | Dual Input Boiler Controllers/ Condensate Monitors - 1

An Iwaki America Company WDB/WDC400 | Dual Input Boiler Controllers/ Condensate Monitors OVERVIEW The WDB400 Dual Boiler Controllers and WDC400 Dual Condensate Monitors represent the latest technological and innovative advancements from Walchem. All of the standard features you’d expect in conventional boiler controllers/condensate monitors are included, plus optional simple-to-use information management tools that enable water treatment professionals to deliver more effective service to their customers. The WDB/WDC400 controllers have the ability to store conductivity and temperature values, water usage, relay status, and user settings. A USB memory stick is all that’s needed to extract the information. Download logs from the USB stick to a PC at your convenience, or copy your preferred treatment program settings to another controller to speed start-up. It couldn’t be easier! SUMMARY OF KEY BENEFITS Ensures Optimal Performance and Maximum Efficiency Precise control of conductivity and chemical feed inhibits corrosion, solids precipitation and scale build-up. Unique time proportional blowdown feature saves energy by reducing water consumption. $ More Informative Monthly Reports Download stored data from the controller to a USB flash stick. Use the data to easily develop reports that show actual water usage, system conductivity, temperature, and more. Efficient Customer Service Quickly identify system upsets by knowing exactly what happened and when. An event log can be downloaded to tell you precisely when pumps turned on, valves opened and when the boiler was offline. NT WATER TREATME RESULTS Validation and Verification Made Easy Use stored data from the controller to simply and easily validate water treatment results. The data and event logs show water usage, system conductivity, and temperature, as well as accumulated chemical feed and blowdown times. Save Time Copy the user settings from your controller to a USB flash stick and upload to a new controller. Programming your new controller this way can be accomplished in seconds. It’s that simple!

Open the catalog to page 1
WDB/WDC400 | Dual Input Boiler Controllers/ Condensate Monitors - 2

WDB/WDC Series | Dual Boiler Conductivity Controller / Boiler Condensate Monitor Choice of measurement units • To customize your control or complement your calibration procedures, conductivity may be displayed as μS or PPM; temperature as °F or °C. Four chemical feed options • Feed & blowdown simultaneously, with or without feed lockout timer • Feed after blowdown has finished, as a percentage of blowdown time • Feed as a percentage of time elapsed • Feed as a percentage of make-up water Choices of blowdown modes for timed samples • In intermittent sampling, the blowdown valve is open until...

Open the catalog to page 2
WDB/WDC400 | Dual Input Boiler Controllers/ Condensate Monitors - 3

Typical Installation for Intermittent Sampling Skimmer Blowdown Line Manual Blowdown (Normally Closed) Motorized Flow Ball Control Valve Orifice Union Manual Clean-out FEED LOCATION Cond Electrode: Flow Meter (optional): Flow Switch (optional): relay, reed switch) reed switch) Mechanical Relays Five powered relays All relays are fused together as one group, total current for this group must not exceed 6A Internally powered Fully isolated Measurement Performance Conductivity Range Temperature Range NEMA Rating Ambient Temperature Storage Temperature Shipping weight Electrode Mounting...

Open the catalog to page 3
WDB/WDC400 | Dual Input Boiler Controllers/ Condensate Monitors - 4

ORDER INFORMATION voltage output sensor USB N = Software upgrade capability only U = Integrated datalogging, event/reset logging, and configuration file import/export AGENCY CERTIFICATIONS WebMasterONE is the most advanced online cooling tower and boiler controller in the water treatment industry. The flexible multi-l/O platform allows you to control multiple cooling towers, boilers, closed loops, and condensate lines with just one controller. An extensive assortment of integrated communications and data handling features are included that enable water treatment professionals to provide...

Open the catalog to page 4
