WCT400/410 | Cooling Tower Controllers
4Pages

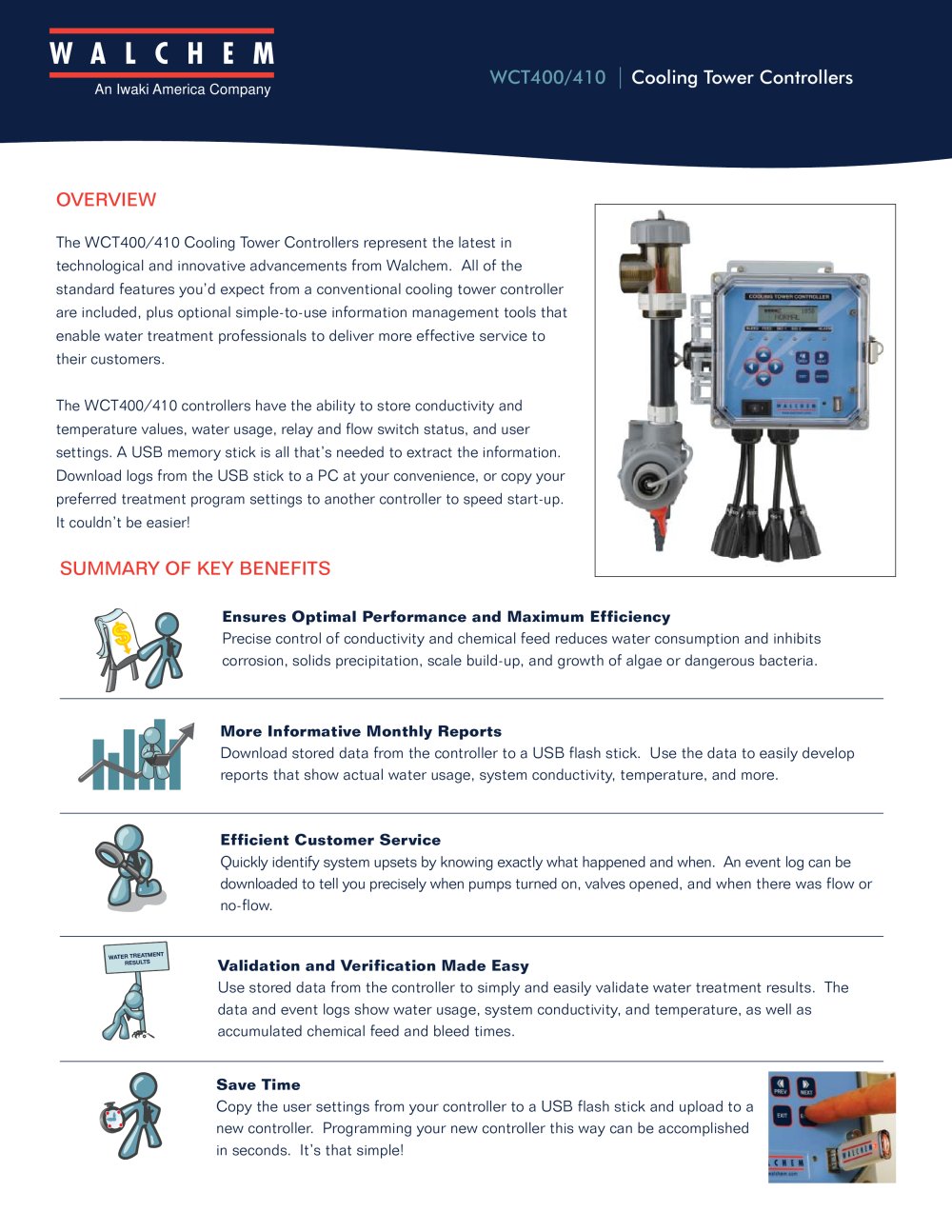

An Iwaki America Company WCT400/410 | Cooling Tower Controllers OVERVIEW The WCT400/410 Cooling Tower Controllers represent the latest in technological and innovative advancements from Walchem. All of the standard features you’d expect from a conventional cooling tower controller are included, plus optional simple-to-use information management tools that enable water treatment professionals to deliver more effective service to their customers. The WCT400/410 controllers have the ability to store conductivity and temperature values, water usage, relay and flow switch status, and user settings. A USB memory stick is all that’s needed to extract the information. Download logs from the USB stick to a PC at your convenience, or copy your preferred treatment program settings to another controller to speed start-up. It couldn’t be easier! SUMMARY OF KEY BENEFITS $ Ensures Optimal Performance and Maximum Efficiency Precise control of conductivity and chemical feed reduces water consumption and inhibits corrosion, solids precipitation, scale build-up, and growth of algae or dangerous bacteria. More Informative Monthly Reports Download stored data from the controller to a USB flash stick. Use the data to easily develop reports that show actual water usage, system conductivity, temperature, and more. Efficient Customer Service Quickly identify system upsets by knowing exactly what happened and when. An event log can be downloaded to tell you precisely when pumps turned on, valves opened, and when there was flow or no-flow. NT WATER TREATME RESULTS Validation and Verification Made Easy Use stored data from the controller to simply and easily validate water treatment results. The data and event logs show water usage, system conductivity, and temperature, as well as accumulated chemical feed and bleed times. Save Time Copy the user settings from your controller to a USB flash stick and upload to a new controller. Programming your new controller this way can be accomplished in seconds. It’s that simple!

WCT400 Series | Feed and Bleed Cooling Tower Controller Four chemical feed options 1 Feed & bleed, with or without feed lockout timer 1 Feed after bleed has finished, as a 1 Feed as a percentage of time elapsed 1 Feed as a percentage of make-up water ' Software, electronics, and sensor are constantly monitored without having to take controller offline. Conductivity Electrodes ' Graphite or stainless steel 1 Low pressure or high pressure ' Optional isolated 4-20mA output proportional Flow Switch Manifolds • Optional integrated flow switch manifold may be panel mounted for quick, professional...

SPECIFICATIONS TYPICAL INSTALLATION 10.0" (254 mm) COOLING TOWER FLOW SWITCH SOLENOID VALVE Cooling Tower Controller WATER METER 3/4” NPT FLOW PREV METERING PUMPS NEXT ENTER EXIT W A L C H E M www.walchem.com HEAT EXCHANGER FLOW 17" (432 mm) WCT ELECTRODE SAMPLE VALVE CIRCULATING PUMP 1/4” POLYPRO PANEL Inputs Outputs Power 100-240 VAC, 50/60 Hz, 8A Fuse: 1.0 ampere, 5 x 20 mm Signals Cond Electrode: Flow Meter (optional): Flow Switch (optional): 1.0 cell factor, 10K thermistor Isolated, dry contact closure required (i.e. relay, reed switch) Isolated, dry contact closure required (i.e. reed...

ORDER INFORMATION voltage output sensor USB 5 = 100-240 VAC, hardwired, cable glands WebMasterONE is the most advanced online cooling tower and boiler controller in the water treatment industry. The flexible multi-l/O platform allows you to control multiple cooling towers, boilers, closed loops, and condensate lines with just one controller. An extensive assortment of integrated communications and data handling features are included that enable water treatment professionals to provide more effective water management services to their customers. Metering Pumps The E-Class is the most...
