Catalog excerpts
![Interesting Applications: Scalable Telecontrol - 1](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_1m.jpg)

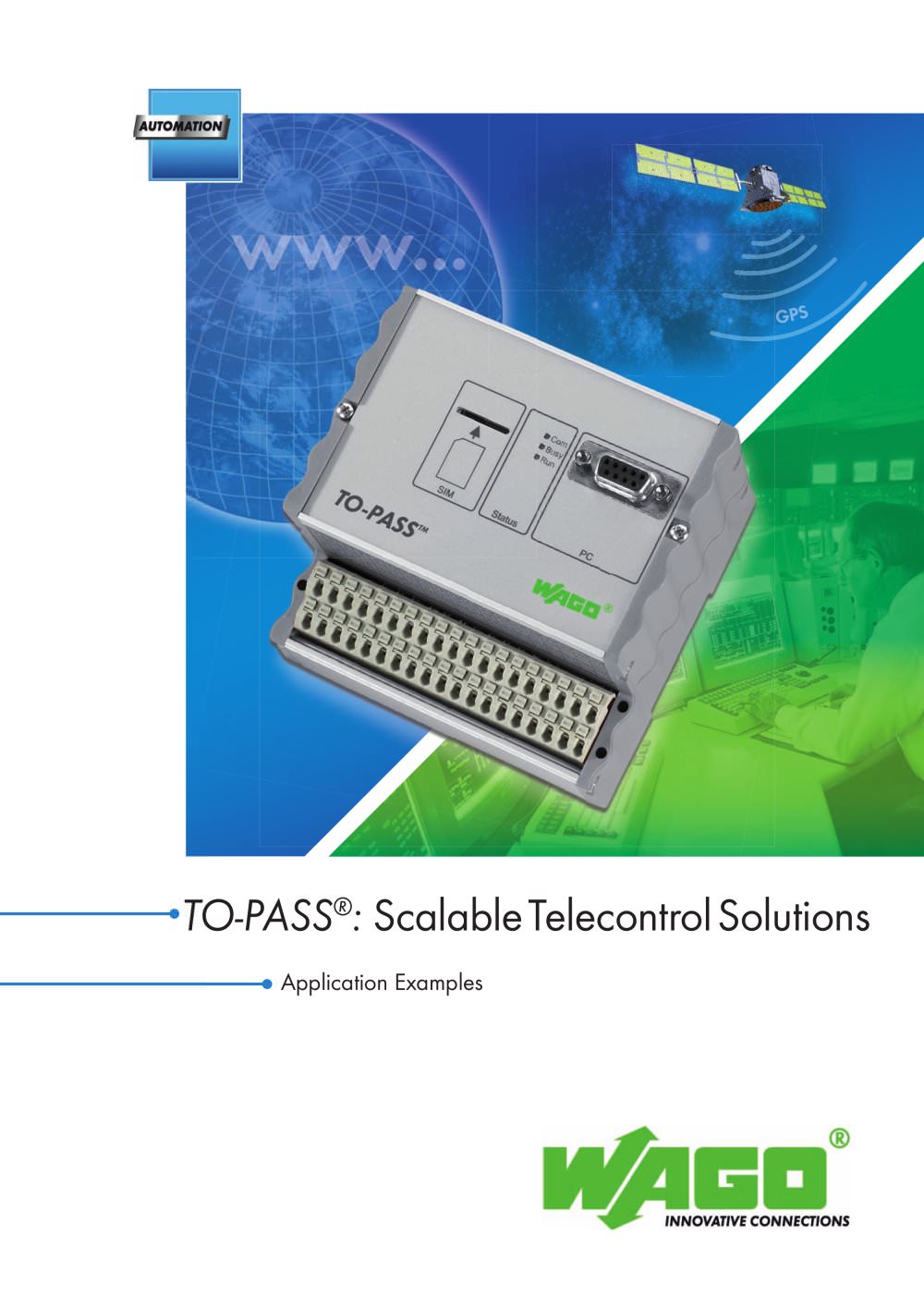

www... TO-PASS®: Scalable Telecontrol Solutions Application Examples
Open the catalog to page 1![Interesting Applications: Scalable Telecontrol - 3](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_3m.jpg)
3 TO-PASS® 4 6 Monitoring of pump stations 6 Level measuring and flood control measures 7 Building monitoring and networking 8 Switch the street lighting per SMS 9 TO-PASS® connecting to water works 10 Weir regulation 11 Bio-gas plant inspection 12 Stable monitoring 13 Tank farm networking 14 District heating network monitoring 15 Networking of silos 16 Server monitoring 17 TO-PASS® Mobile — conforms to the new EC Directive for transporting goods 18 TO-PASS® provides you with the solution from one hand. System overview Application examples
Open the catalog to page 3![Interesting Applications: Scalable Telecontrol - 4](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_4m.jpg)
www... 4 Visualization available everywhere via Inter- SAP logistic connection, or similar net (password protected), including current value representation and line recorder for history of measured values TO-PASS® S Telecontrol Module - Convenient, compact solution with integrated GSM modem and I/Os - 4 digital inputs - 2 analog inputs - 4 digital outputs TO-PASS® M Telecontrol Module - 8 digital inputs - 8 analog inputs - 4 digital outputs - 4 analog outputs TO-PASS® Outdoor Telecontrol Module - IP66 housing for outdoor installation - Battery provides protection from mains failure -...
Open the catalog to page 4![Interesting Applications: Scalable Telecontrol - 5](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_5m.jpg)
GPS www... 5 TO-PASS® Mobile Telecontrol Module - Compact module with integrated GPS receiver, GSM modem and I/Os, for direct mounting. - Monitoring of measured values and position IP66 housing for outdoor installation on vehicles. 750-872 Telecontroller - Process data transmission in acc. to IEC608705-5-101/-104 - Telecontrol substation - Optional programming via CoDeSys (PLC functionality) - Easy parameterization in CoDeSys - Comprehensive range of 750 and 753 Series I/O modules Fault Detector to Intelligent Telecontrol PLC Control station/control system Transmission based on the...
Open the catalog to page 5![Interesting Applications: Scalable Telecontrol - 6](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_6m.jpg)
+ 1/2 Uv from 8 to 36 VDC Digital input Vcc 250 Ohm Analogue input Analogue output Digital output - + - - - 6 Monitoring of pump stations using TO-PASS® Task The checking and maintaining of the pump stations must be carried out with much less eff ort. The stations should report by themselves so that only targeted check visits are necessary. A service that is considerably reduced through pre-calculated maintenance intervals should additionally make a more eff ective maintenance possible. Solution All measurement values and error messages are connected to a central server via the TO-PASS®...
Open the catalog to page 6![Interesting Applications: Scalable Telecontrol - 7](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_7m.jpg)
7 Level measuring and fl ood control measures using TO-PASS® Task For controlling the fi lling level of waterways, channels and dams, there should be a possibility to view the water level quickly and without delay independent of the location. Water associations, municipalities, cities and local authorities, all of these require information for the water levels as soon as possible, especially during periods where there is a risk of high water. A reliable and immediate alarm system that is carried out from a standalone system without additional wiring is the objective. Another advantage would...
Open the catalog to page 7![Interesting Applications: Scalable Telecontrol - 8](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_8m.jpg)
8 Building monitoring and networking using TO-PASS® Task All public buildings in the municipalities must be monitored as well as controlled in a cost effi cient and eff ective manner. It must also be possible to control systems such as the heaters. Malfunctions should be detected as fast as possible without each of the buildings having to be check on-location. It should also be possible to automatically read off the meters for heat, electric and water in all buildings. Solution TO-PASS® enables the municipalities to permanently monitor all buildings as well as to switch and regulate the...
Open the catalog to page 8![Interesting Applications: Scalable Telecontrol - 9](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_9m.jpg)
9 Switch the street lighting per SMS with TO-PASS® If you need light... ... we have the technology for it! - Use the advantages of the industrial approved TO-PASS® modules. - We are the market leader for GSM technologies in the fi eld of telecontrol technologies. - Our system enables the eff ective and cost effi cient implementation of street lighting that can be switched per SMS. - The TO-PASS® is mounted direct without any additional expenditure and is taken into operation via GSM. TO-PASS® ...and you won´t be alone in the dark any more.
Open the catalog to page 9![Interesting Applications: Scalable Telecontrol - 10](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_10m.jpg)
10 TO-PASS® connecting to water works Task Water works must be un up and down and controlled periodically by the operating staff . This should be carried out in much less time. The stations should report themselves individually for maintenance or in case of malfunction. The fl ow rate of fresh water should be monitored permanently. The maintenance should be able to be calculated up front so that these intervals become more eff ective. Solution The TO-PASS® Module records all data of the water works and transfers these wireless to a central server in internet, which can be accessed via any...
Open the catalog to page 10![Interesting Applications: Scalable Telecontrol - 11](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_11m.jpg)
11 Weir control using TO-PASS® Task The weir of a local authority regulates the fl ow from a village pond to a stream that leads through the village. The weir should be monitored permanently and the level of the stream is read-out in a data storage via a main computer each week. Solution TO-PASS® is applied because it off ers several functions in one unit: - Error messages via SMS, fax, e-mail, and over the phone - Data logger - Telecontrol readings via data calls made comfortably from the offi ce The users were especially convinced as to how the measurement value was displayed on the...
Open the catalog to page 11![Interesting Applications: Scalable Telecontrol - 12](https://img.directindustry.com/pdf/repository_di/1012/interesting-applications-scalable-telecontrol-127025_12m.jpg)
+ 1/2 - 12 Bio-gas plant inspection using TO-PASS® Task For the optimal planning of the plant, it is necessary to monitor and check the stocking of the materials on a regular basis and, these should especially be automatically linked with the disposition. Next to the standard control system, it is also important to integrate an additional costeff ective and safe system for monitoring the limit values that triggers the alarm in case of malfunction. By doing this, the plant maintenance and the respective eff orts for service are reduced considerably. Solution The wireless GPRS network of the...
