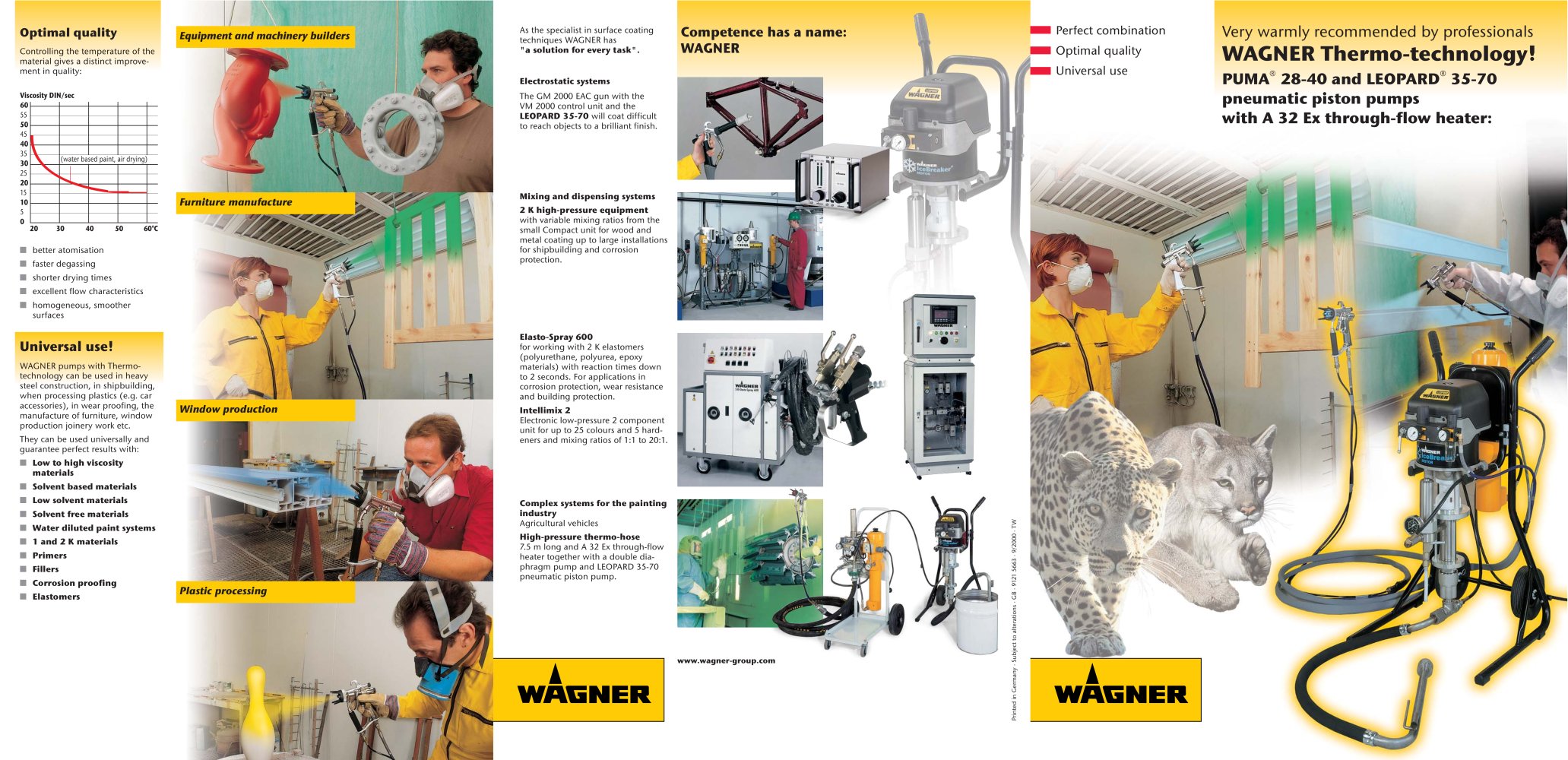

20 30 40 50 60°C Viscosity DIN/sec 60 55 50 45 40 35 30 25 20 15 10 5 0 (water based paint, air drying) Very warmly recommended by professionals WAGNER Thermo-technology! PUMA® 28-40 and LEOPARD® 35-70 pneumatic piston pumps with A 32 Ex through-flow heater: Perfect combination Optimal quality Universal use Electrostatic systems The GM 2000 EAC gun with the VM 2000 control unit and the LEOPARD 35-70 will coat difficult to reach objects to a brilliant finish. Elasto-Spray 600 for working with 2 K elastomers (polyurethane, polyurea, epoxy materials) with reaction times down to 2 seconds. For applications in corrosion protection, wear resistance and building protection. Intellimix 2 Electronic low-pressure 2 component unit for up to 25 colours and 5 hardeners and mixing ratios of 1:1 to 20:1. As the specialist in surface coating techniques WAGNER has "a solution for every task". Complex systems for the painting industry Agricultural vehicles High-pressure thermo-hose 7.5 m long and A 32 Ex through-flow heater together with a double diaphragm pump and LEOPARD 35-70 pneumatic piston pump. Mixing and dispensing systems 2 K high-pressure equipment with variable mixing ratios from the small Compact unit for wood and metal coating up to large installations for shipbuilding and corrosion protection. Printed in Germany · Subject to alterations · GB · 9121 5663 · 9/2000 · TW Competence has a name: WAGNER Universal use! WAGNER pumps with Thermotechnology can be used in heavy steel construction, in shipbuilding, when processing plastics (e.g. car accessories), in wear proofing, the manufacture of furniture, window production joinery work etc. They can be used universally and guarantee perfect results with: ¡ Low to high viscosity materials ¡ Solvent based materials ¡ Low solvent materials ¡ Solvent free materials ¡ Water diluted paint systems ¡ 1 and 2 K materials ¡ Primers ¡ Fillers ¡ Corrosion proofing ¡ Elastomers Equipment and machinery builders Furniture manufacture Plastic processing Window production Optimal quality Controlling the temperature of the material gives a distinct improvement in quality: ¡ better atomisation ¡ faster degassing ¡ shorter drying times ¡ excellent flow characteristics ¡ homogeneous, smoother surfaces www.wagner-group.com

A B D F E I H G L L K C N M Technical Data PUMA 28-40 LEOPARD 35-70 Transmission ratio 28:1 35:1 Volumetric flow per double stroke 40 cc 70 cc Max. working pressure 224 bar 250 bar Max. stroke rate 50 double 50 double strokes/min. strokes/min. Max. air inlet pressure 8 bar 7.1 bar Air consumption at 6 bar per double stroke 6.8 NL 15.9 NL Sound pressure level at 8 bar 78 dBA 79 dBA Max. nozzle size in continuous operation at 150 bar 1x 0.019" 1x 0.027" A 32 Ex through-flow heater Electrical rating 3.2 kW Max. operating temperature 80°C Max. outlet temperature 65°C Max. throughput at 80°C 0.7 l/min...
