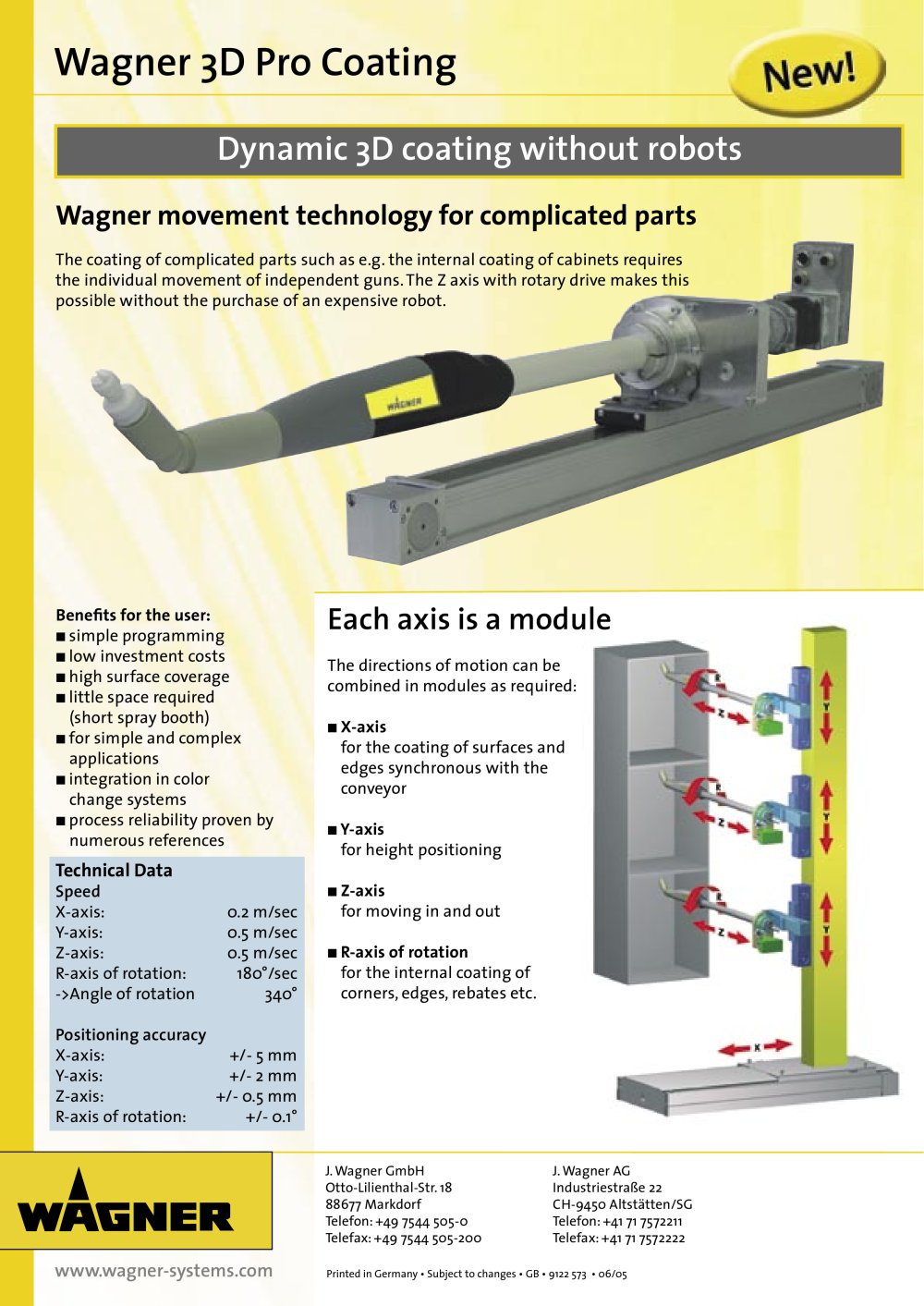

Wagner 3D Pro Coating Dynamic 3D coating without robots The coating of complicated parts such as e.g. the internal coating of cabinets requires the individual movement of independent guns. The Z axis with rotary drive makes this possible without the purchase of an expensive robot. Wagner movement technology for complicated parts Benefi ts for the user: ¡ simple programming ¡ low investment costs ¡ high surface coverage ¡ little space required (short spray booth) ¡ for simple and complex applications ¡ integration in color change systems ¡ process reliability proven by numerous references Technical Data Speed X-axis: 0.2 m/sec Y-axis: 0.5 m/sec Z-axis: 0.5 m/sec R-axis of rotation: 180°/sec ->Angle of rotation 340° Positioning accuracy X-axis: +/- 5 mm Y-axis: +/- 2 mm Z-axis: +/- 0.5 mm R-axis of rotation: +/- 0.1° The directions of motion can be combined in modules as required: ¡ X-axis for the coating of surfaces and edges synchronous with the conveyor ¡ Y-axis for height positioning ¡ Z-axis for moving in and out ¡ R-axis of rotation for the internal coating of corners, edges, rebates etc. Each axis is a module J. Wagner GmbH Otto-Lilienthal-Str. 18 88677 Markdorf Telefon: +49 7544 505-0 Telefax: +49 7544 505-200 www.wagner-systems.com J. Wagner AG Industriestraße 22 CH-9450 Altstätten/SG Telefon: +41 71 7572211 Telefax: +41 71 7572222 Printed in Germany • Subject to changes • GB • 9122 573 • 06/05
