Unica 4-270

Unica 4-270

Product catalog summary

Overview
The Unica 4-270 is a medium pressure double diaphragm pump designed as an effective alternative to piston pumps. It offers superior performance, high reliability, and innovative solutions for industrial applications.

Key Features

High Reliability: The pump features a special air-motor design with no internal friction and long-life diaphragms, reducing maintenance costs and minimizing downtime.
Excellent Finishing: Low pulsation output ensures high-quality finishing and a consistent spray pattern.
Sturdy Construction: Developed to meet high-quality standards with robust mechanical components.
Low Shear Effect: Ideal for circulating paint lines with minimal material degradation.

Exclusive Technology
The Unica 4-270 is equipped with a patented hydraulic circuit that minimizes diaphragm deformation and stress, ensuring long diaphragm life even under severe conditions. It operates with a 4.5:1 pressure ratio and a maximum working pressure of 27 bar.

Performance Benefits

Superior Power: Offers 50% higher working pressure than other pneumatic double diaphragm pumps.
Higher Performance: Reduced pressure drops along the stroke for stable material flow and higher working pressure.

Technical Specifications

Length: 412 mm / 16.2 inch
Height: 417 mm / 16.4 inch
Weight: 45 kg / 99.2 lb
Pressure Ratio: 4.5:1
Max. Working Pressure: 27 bar / 2.7 MPa / 392 psi
Max. Air Inlet Pressure: 6 bar / 0.6 MPa / 87 psi
Max. Flow Rate: 120 l/min / 31.7 gpm
Recommended Flow Rate for Continuous Operation: 8.2 l/min / 2.2 gpm
Wetted Parts: Stainless steel, PTFE

Application Areas

Main paint circulation systems
Boothside/satellite paint circulation systems
Medium to low viscosity adhesive supply
Pumping of shear-sensitive paints
Supply of paint and hardener for 2K proportioning systems

Processable Materials

Water-borne and solvent-borne paints
Friction-sensitive materials
Moisture-sensitive materials
Shear-sensitive water-borne coatings
UV-cure materials
Acrylics, glues, abrasives

Additional Information
WAGNER also offers a range of air-operated diaphragm pumps suitable for low pressure applications, characterized by high delivery rates and reliability. The Cobra 40-10 is another high-pressure double diaphragm pump suitable for Airless and AirCoat applications up to 250 bar.

Catalog excerpts

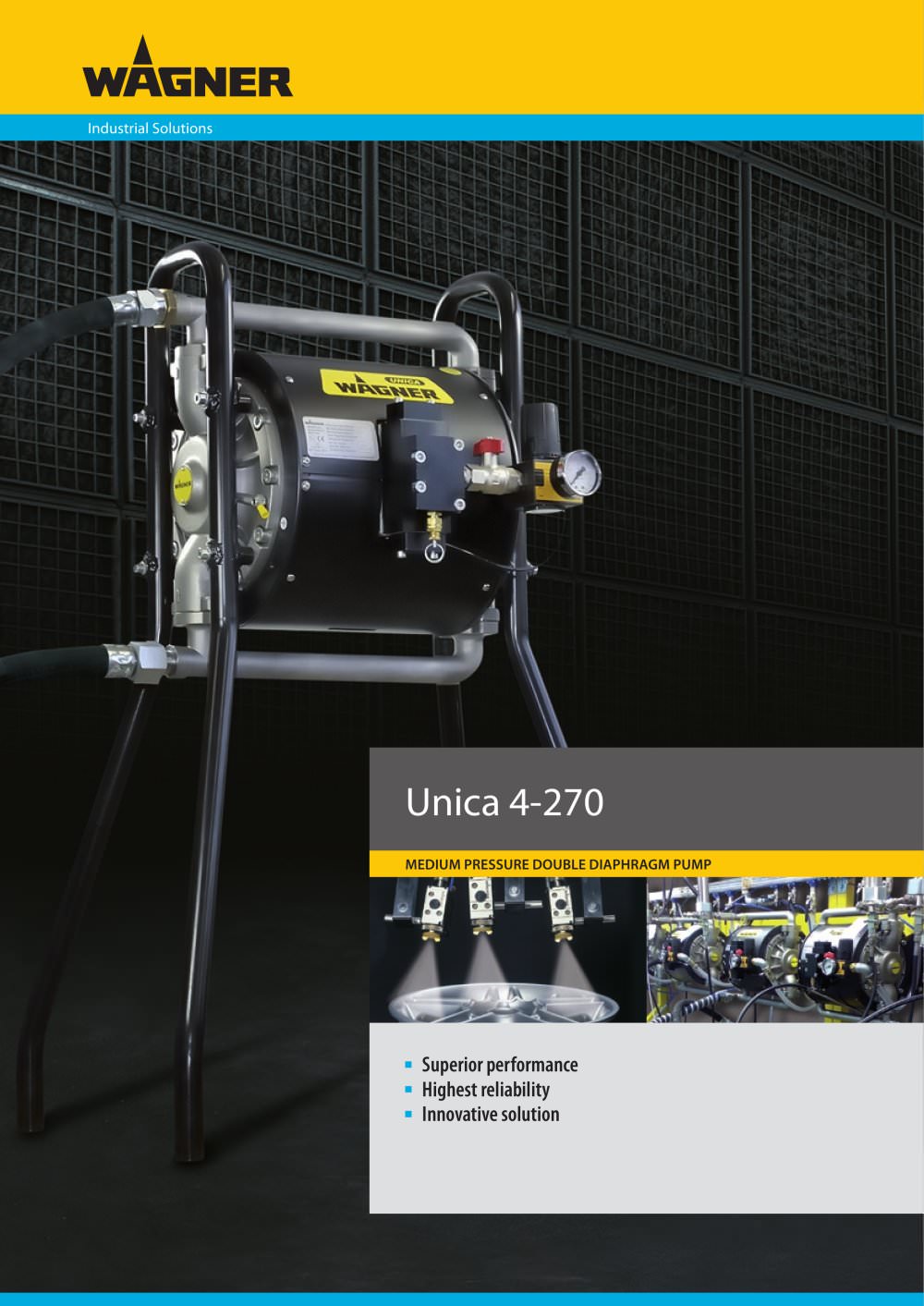

Superior performance Highest reliability Innovative solution Unica 4-270 MEDIUM PRESSURE DOUBLE DIAPHRAGM PUMP Industrial Solutions

Open the catalog to page 1

Unica 4-270 an effective alternative to piston pumps HIGH RELIABILITY A special air-motor design, no friction inside the pump, and long-life diaphragms keep maintenance costs low and minimize plant downtime risks. EXCELLENT FINISHING Low pulsation output allows high quality finishing and a constant spray pattern. STURDY CONSTRUCTION The technical solution and mechanical components were specifically developed to satisfy the highest quality standards. LOW SHEAR EFFECT The pumping mechanism with minimal material degradation makes Unica ideal for feeding circulating paint lines. Exclusive technology...

Open the catalog to page 2

Reduced pressure drop for higher performance Double diaphragm pump Technical data Unica 4-270 Length 412 mm / 16.2 inch Height 417 mm / 16.4 inch Weight (bare pump) 45 kg / 99.2 lb Pressure ratio 4,5:1 Max. working pressure 27 bar / 2.7 MPa / 392 psi Max. air inlet pressure 6 bar / 0.6 MPa / 87 psi Volumetric flow per double stroke 270 cm3 / 16.5 cin Max. flow rate 120 l/min / 31.7 gpm Max. recommended flow rate for continuous operation 8.2 l/min / 2.2 gpm (30 DS/min) Fluid outlet-inlet port G 3/4“ Air motor inlet G 1/2“ Wetted parts Stainless steel, PTFE 27 bar max. pressure Reduced pressure...

Open the catalog to page 3

Printed in Germany · Subject to alterations · AME · 9124141 · 04/2008 Expertise in diaphragms Besides Unica, WAGNER produces a wide range of air-operated diaphragm pumps (Zip line). The WAGNER diaphragm pumps are suitable for low pressure applications and characterized by a high delivery rate and maximum reliability. Feeding pumps for experts WAGNER offers a broad selection of low pressure pumps for fluid transfer. WAGNER IceBreaker technology delivers constant power with minimal icing. Easily serviceability of the fluid section keeps downtime and cleaning requirements low. Even water-based material...

Open the catalog to page 4
