WAGNER
SupraCoat

SupraCoat

Product catalog summary

Overview of WAGNER SupraCoat System

The WAGNER SupraCoat system is an advanced coating technology based on HVLP (High Volume Low Pressure) technology, offering significant advantages over conventional air guns and HVLP plug-in systems. It is designed for high application efficiency, low operating costs, and quick amortization.

Key Features and Benefits

Excellent Coating Results: The system provides a differentiated spray jet with minimal overspray, achieving an excellent surface finish even with high viscosity paints.
High Application Efficiency: SupraCoat guns can achieve up to 85% application efficiency.
Economical Operation: The system offers up to 60% paint savings, low maintenance costs, and eliminates the need for compressed air, making it extremely economical.
Matured Technology: Combines several economical components, including the GA 3000 SupraCoat gun and SupraCoat AirCenter, which generates high volumes of warmed, oil, and water-free atomizing air.
Flexibility: The modular build allows for tailor-made solutions and easy extensions or retrofits.

Technical Specifications

HVLP Technology: Operates with high air volume (700/24.6 l/cfm) and low air pressure (max. 0.7/10 bar/psi).
Safety Standards: Suitable for explosion-protected areas and complies with ATEX Guideline 95 and California standard 1151.

Applications

Suitable for a wide range of materials, including water-based, solvent-based, metallic, high solids, and high viscosity paints.
Applicable in various industries such as plastics, commercial vehicles, wheel rims, engines, transmissions, lorry cabs, micro-corrosion proofing, leather, steel, wood, and glass.

System Components

SupraCoat Guns: Offer excellent atomization, homogeneous distribution, and high film thicknesses. Features include internal or remote fan-control, a range of air caps, nozzles, and accessories.
SupraCoat Piping System: Modular, adaptable, and corrosion-resistant, allowing for easy assembly and extension.
SupraCoat Controller: Allows for easy adjustment of output pressure and is compact for close positioning to the gun.
SupraCoat AirCenter: Provides a constant high volume of clean, pulsation-free, warmed atomizing air, reducing maintenance and operating costs.

Environmental and Maintenance Benefits

Long service life, low material consumption, minimal overspray, and reduced VOC emissions contribute to environmental friendliness.
Simple service and cleaning with easily removable gun body and external nozzle adjustments.

Catalog excerpts

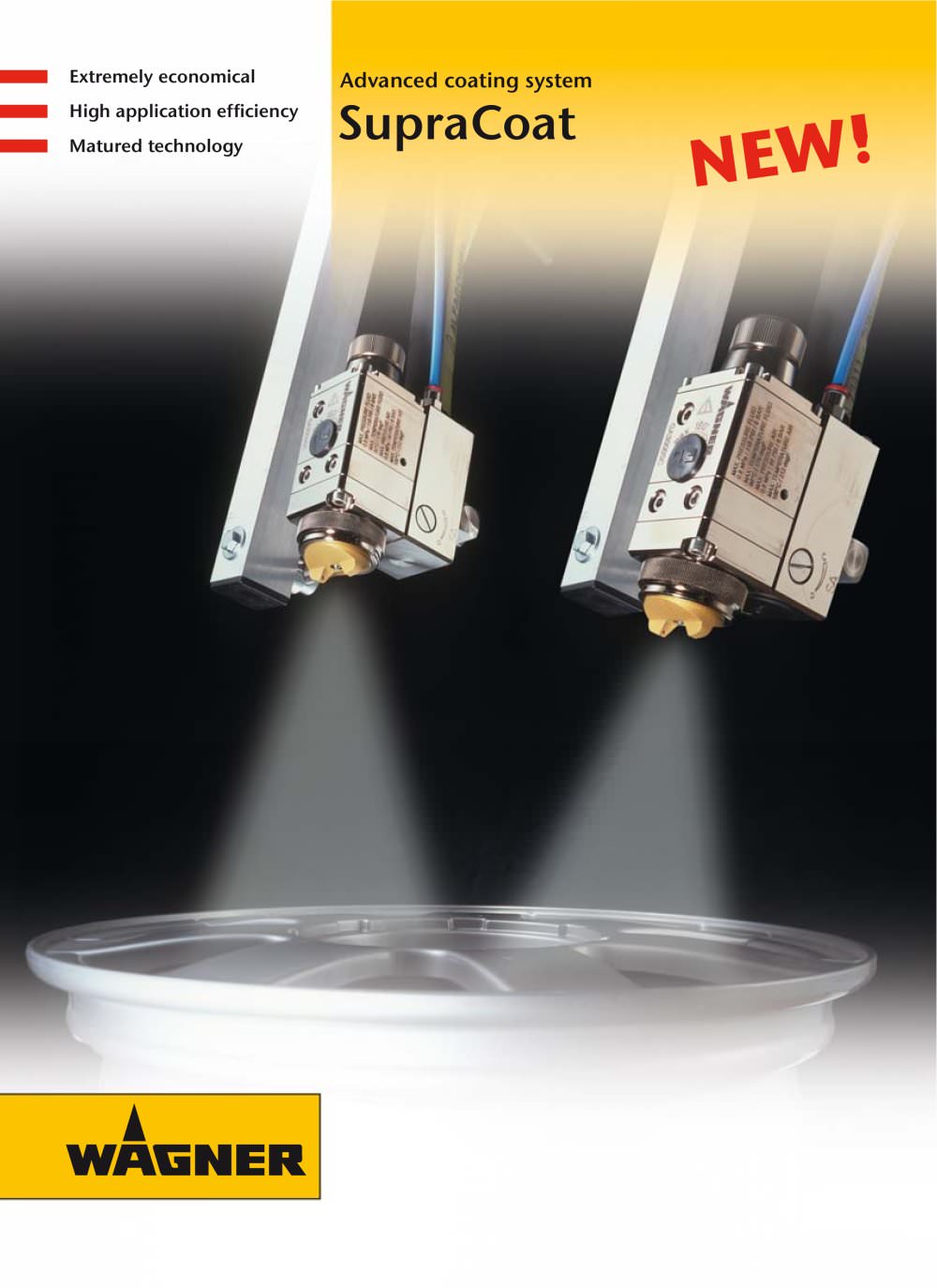

Extremely economical High application efficiency Matured technology Advanced coating system SupraCoat NEW!

Open the catalog to page 1

Needle travel limiter Gun body Nozzle needle Nozzle Tubing nut Air cap Packing adjustment Connections Inspection opening Base plate WAGNER SupraCoat is based on HVLP technology1 and in comparison to so-called HVLP plug-in systems2 and conventional air guns offers decisive advantages from all points of view. Excellent coating results The low kinetic energy of the paint particles provides a very differentiated spray jet with little over spray or turbulence. Due to the optimised design of the SupraCoat gun, an excellent surface finish is achieved and paints with higher viscosities can also be applied....

Open the catalog to page 2

¡ High safety standard – Suitable for explosion protected areas in accordance with the ATEX Guideline 95 – Compliance with the strict standard 1151, in force in California since 1991 ¡ Versatile in use The SupraCoat guns allow the application of a wide spectrum of materials and thus extremely flexible production. – 1 & 2 component water based and solvent based paints – Metallic paints – High solids paints – High viscosity paints – Release agents The WAGNER SupraCoat system has been found satisfactory in many areas of industry: – Coating plastics – Painting commercial vehicles – Coating wheel...

Open the catalog to page 3

SupraCoat system Compact and complete! SupraCoat AirCenter 3400 www.wagner-group.com SupraCoat piping system The WAGNER SupraCoat piping system is a product proven in practical use. It is of modular construction, individually adaptable and can be extended at any time – its convincing features are its superb material properties, its low weight and its corrosion resistance. Different pipe diameters and an extensive range of accessories complete the system. The SupraCoat piping system will win you over, not only with its quality but also due to its simple, quick and thus inexpensive assembly. SupraCoat...

Open the catalog to page 4
