Product catalog summary

Overview
The document provides technical specifications and features of the WAGNER RoboCoat, a versatile robot technology solution designed for precision and efficiency in industrial painting applications.

Technical Specifications

Working Range and Speed: The robot features six axes with varying degrees and speeds, with Axis 1 at 195° (103°/s) and Axis 6 at +540° (666°/s).
Repeatability: The robot offers a repeatability accuracy of +0.5 mm.
Load Capacity: It can carry a maximum load of 7.5 kg (16.5 lbs) at a 300 mm offset.
Weight and Speed: The robot weighs 500 kg (1100 lbs) and has a maximum working speed of 1500 mm/s.
Installation: Designed for floor mounting.
Energy Consumption: Air consumption is less than 1 scfm, and electrical consumption is less than 1 kW on average.

Features and Accessories

Mechanism: Includes an extended arm, integral color change valves, braked axes, and integral metering pumps with a variable mixing ratio.
Software: Features line tracking, automatic paint change, analogue parameter control, and integral 2-K metering technology.

Benefits

Repeatable Precision: Comprehensive movement software ensures constant speeds, improved quality, and uniform coating thicknesses.
Reduced Production Costs: Easy maintenance, reduced cycle times, and increased quality lead to lower wage and material costs.
Versatility: Suitable for water and solvent-based paints, applicable in automotive and aircraft industries, and features a sealed wrist to reduce environmental contamination.

Conclusion
The WAGNER RoboCoat is a reliable solution for industrial painting, offering precision, cost efficiency, and versatility across various applications.

Catalog excerpts

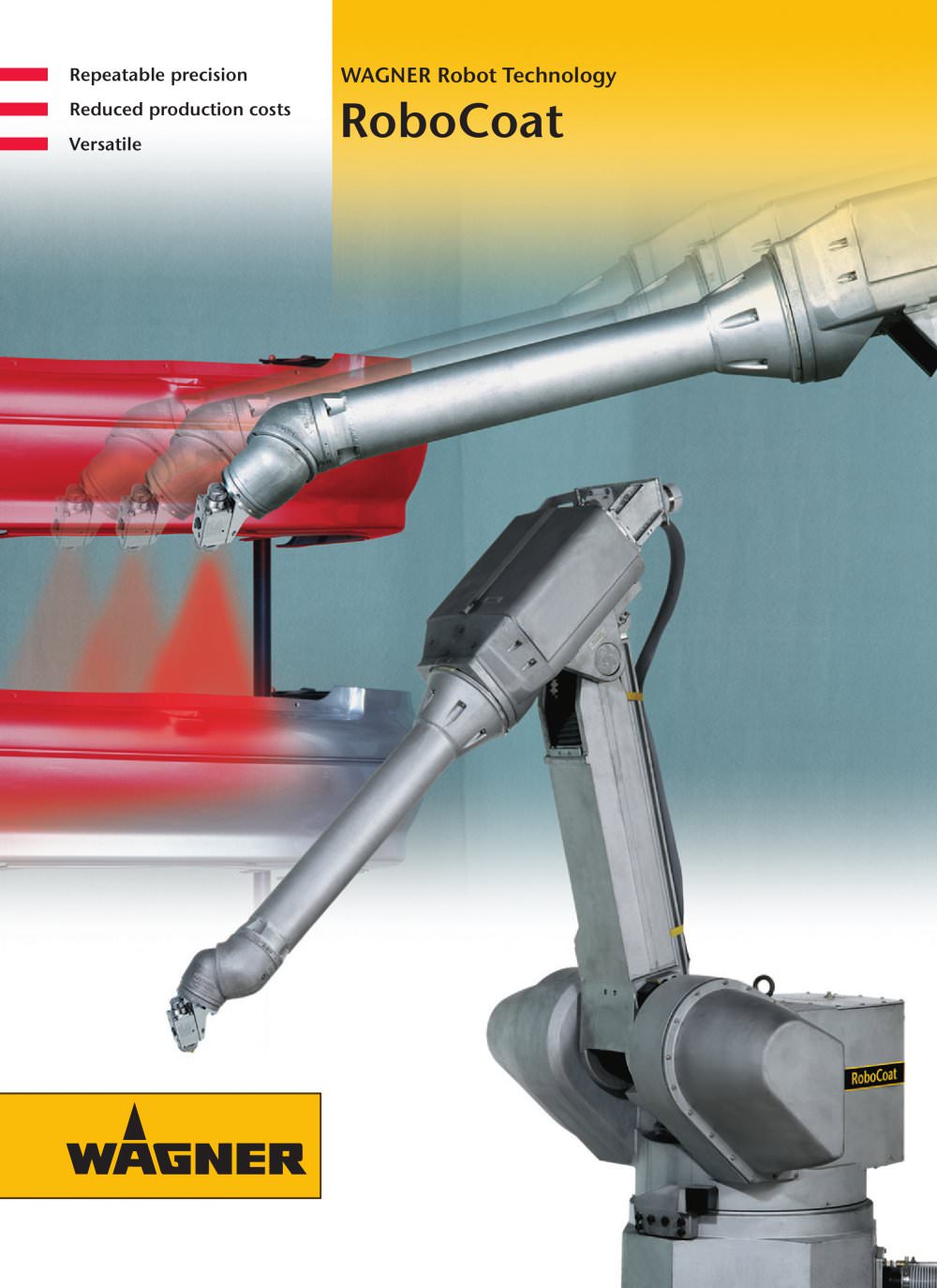

Repeatable precision Reduced production costs Versatile WAGNER Robot Technology RoboCoat

Open the catalog to page 1

Robot Technology, the reliable solution RoboCoat Technical data Working range (max. speed) Axis 1 195° (103°/s) Axis 2 140° (140°/s) Axis 3 130° (125°/s) Axis 4 + 540° (395°/s) Axis 5 + 540° (545°/s) Axis 6 + 540° (666°/s) Repeatability accuracy + 0,5 mm Max. carried load 7,5 kg (16,5 lbs) @ 300 mm offset Mechanical brake J2, J3 Weight 500 kg (1100 lbs) Max. working speed 1500 mm/s Installation type Floor mounted Energy consumption Air < 1 scfm Electrical < 1 kw (on average) Accessories Mechanism ¡ Extended arm (+ 1,450 mm) ¡ Integral colour change valves to reduce the colour changing times and...
