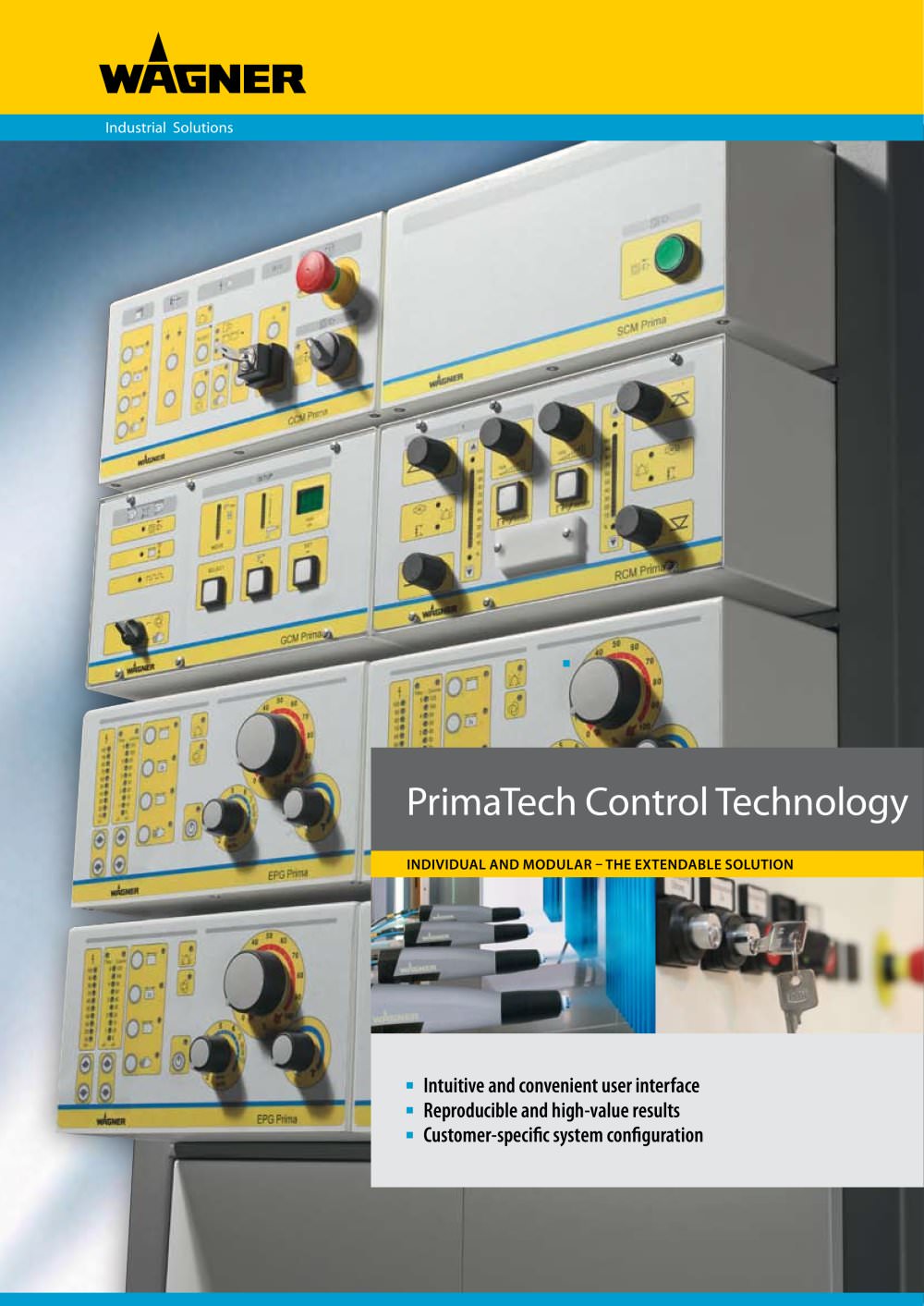

Overview
PrimaTech Control Technology offers a modular and extendable solution for powder coating systems, emphasizing user-friendliness and adaptability to customer-specific configurations. The system is designed for industrial applications, providing intuitive interfaces and reproducible results.

Central Control Unit: CCM PRIMA
The CCM PRIMA serves as the central control and operating unit, integrating individual control modules. Key features include:

• Locking of up to 8 gun controls
• Central emergency switch
• Inputs for conveyor and cabinet release signals
• Failure indicator on the conveyor system

The system supports both Tribo and Corona guns and offers numerous extension options, ensuring flexibility for future requirements.

User Interface and Operation
The system boasts a high degree of user-friendliness with easy operation, quick assembly, and commissioning. It includes LED display instruments for optimal control and ensures optimal coating quality by locking all gun controls and providing easy-to-read values for high voltage and power capacity.

Gun Control: EPG PRIMA
The EPG PRIMA controls all WAGNER powder guns, automatically selecting the correct operating type. It features AFB Technology for consistent powder cloud control and offers four recipes for optimal high voltage and current limiter settings.

Automation and Touch Control: PrimaTech Touch
PrimaTech Touch provides a central control unit with a touchscreen, using graphic symbols for easy operation. It includes:

• Recipe memory for replicable results
• Three operating levels with password protection
• Remote maintenance capabilities

The system is suitable for both novices and experts, offering a convenient solution for complex automation tasks.

Reciprocator Control Module: RCM PRIMA
Designed for two reciprocators, this module allows independent control with adjustable turnabout points and directional indicators displayed on an LED screen.

Extension Module: SCM PRIMA
The SCM PRIMA allows control of an additional 8 spray guns, enhancing system capacity.

Gap Control: GCM PRIMA
This feature deactivates powder feed between coating gaps, leading to significant savings in the powder cycle.

Technical Specifications
The document provides detailed technical data for each module, including dimensions, weight, electrical connections, input power, EMI filter standards, protection class, air inlet pressure, operating temperature, and item numbers.

Conclusion
WAGNER Control Technology offers reliable and precise solutions for modern automation in powder coating, with a focus on modularity and efficiency. The PrimaTech system is positioned as an ideal start for efficient automation, adaptable to various industrial requirements.
