Inline pump IP5000
Inline pump IP5000
- Dimensions: Width 385 mm (15.6 inch), Height 760 mm (29.92 inch), Depth 202 mm (8 inch), Weight approx. 20.5 kg (45.2 lb).
- Electrical: Network 24 VDC ± 20%, Input power 40 W, Protection class IP 54 / IP 55, Ex-zone Ex II 3D T85° C.
- Pneumatic: Supply air pressure 0.6-0.8 MPa (6-8 bar; 97-116 psi), Air consumption 10-24 m³/h (353-874 cf), Required compressed air quality according to ISO 8573-1 Class 2.
- Pump quantity: Up to 5 kg/min depending on operating type and recipe.
- Constant pump output throughout the entire usage period.
- Capable of transporting large quantities over distances up to 50 meters.
- Powder quantity can be set in two levels with programmable pump time for level control.
- Simple operation with few keystrokes and automatic cleaning program for intake and feed direction.
- Programmable rinse function and active service interval display with time remaining indicator.
- Extensive range of accessories available.
- Rapid color change and remote control mode.
- Less air required and high feeding performance.
Catalog excerpts

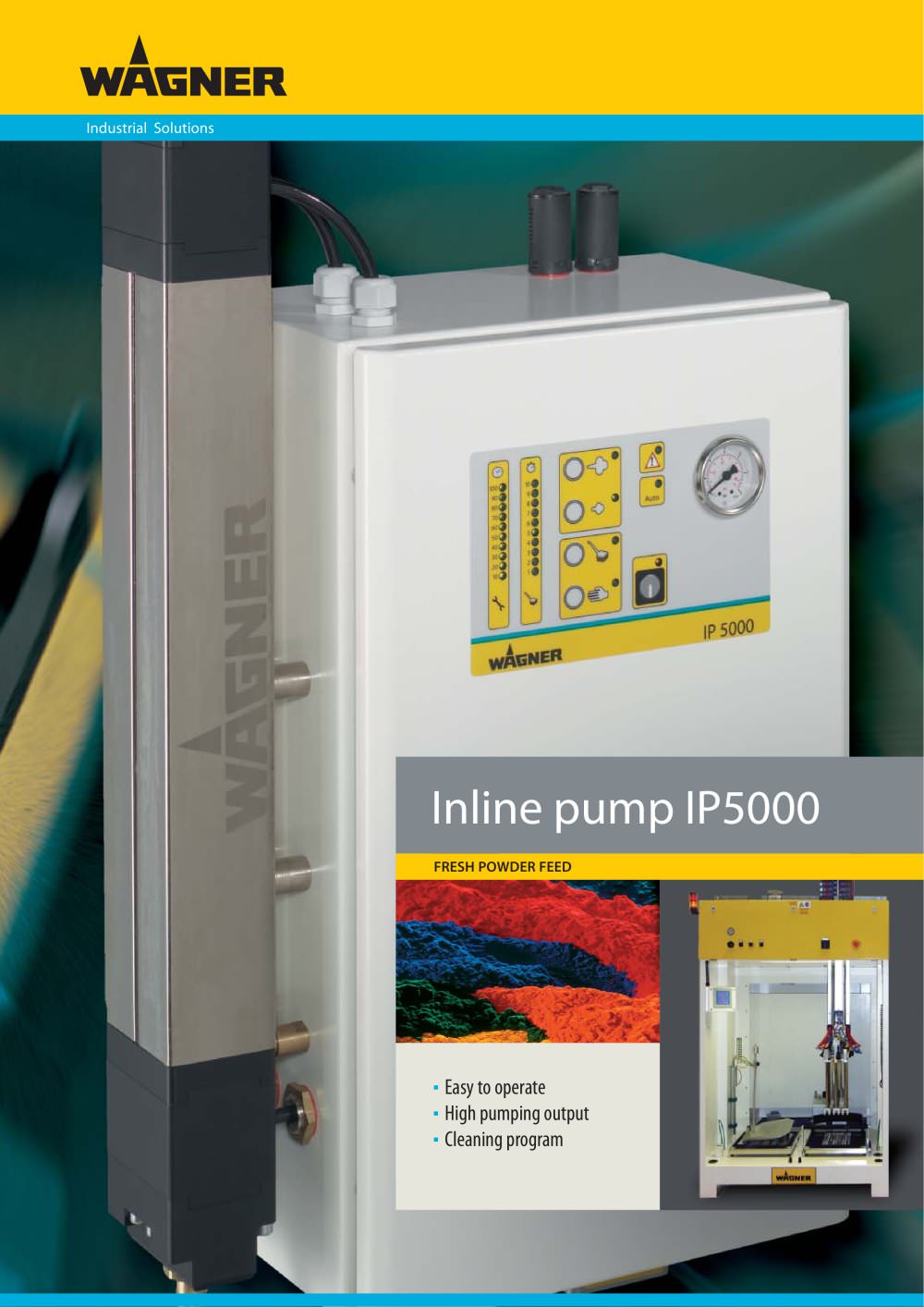

¡ Easy to operate ¡ High pumping output ¡ Cleaning program Inline pump IP5000 Industrial Solutions FRESH POWDER FEED
Open the catalog to page 1
www.wagner-group.com Printed in Germany · subject to changes · eng · 9122577 · 03/2008 n+j J. Wagner AG Industrial Solutions 9450 Altstätten/SG Switzerland Tel. +41 (0) 71/7 57 22 11 Fax +41 (0) 71/7 57 23 23 J. Wagner GmbH Industrial Solutions 88677 Markdorf Germany Tel. +49 (0) 75 44/5 05-0 Fax +49 (0) 75 44/5 05-200 High performance and flexibility The new IP5000 is suitable for all of your bulk powder pumping needs. The IP5000 can be used with any application package, regardless of size. Just feed in straight from the box, the 200 litre barrel or a BigBag. The IP5000 can be easily integrated...
