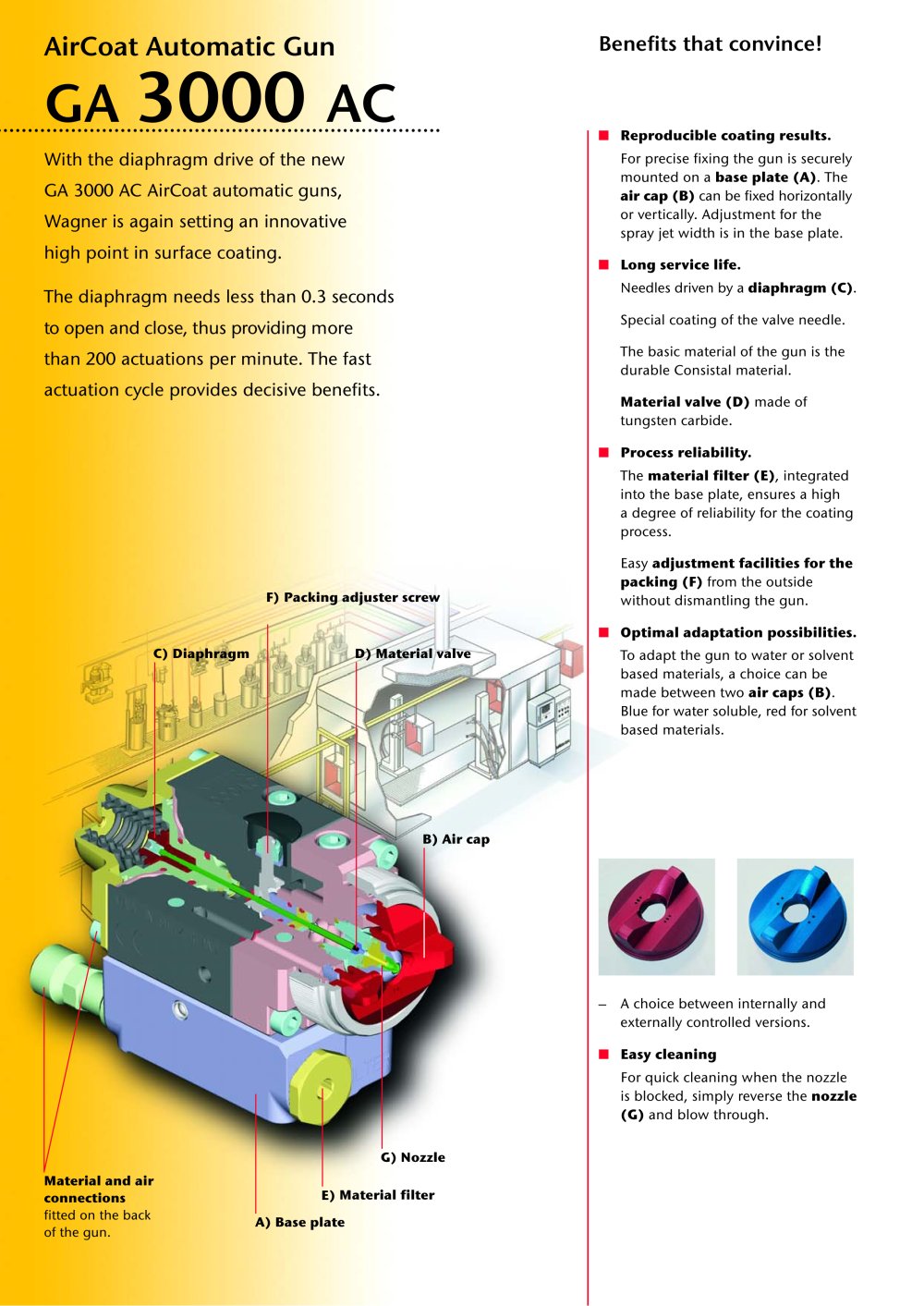

Benefits that convince! With the diaphragm drive of the new GA 3000 AC AirCoat automatic guns, Wagner is again setting an innovative high point in surface coating. The diaphragm needs less than 0.3 seconds to open and close, thus providing more than 200 actuations per minute. The fast actuation cycle provides decisive benefits. A) Base plate E) Material filter G) Nozzle Material and air connections fitted on the back of the gun. B) Air cap C) Diaphragm F) Packing adjuster screw AirCoat Automatic Gun GA 3000 AC D) Material valve ¡ Reproducible coating results. For precise fixing the gun is securely mounted on a base plate (A). The air cap (B) can be fixed horizontally or vertically. Adjustment for the spray jet width is in the base plate. ¡ Long service life. Needles driven by a diaphragm (C). Special coating of the valve needle. The basic material of the gun is the durable Consistal material. Material valve (D) made of tungsten carbide. ¡ Process reliability. The material filter (E), integrated into the base plate, ensures a high a degree of reliability for the coating process. Easy adjustment facilities for the packing (F) from the outside without dismantling the gun. ¡ Optimal adaptation possibilities. To adapt the gun to water or solvent based materials, a choice can be made between two air caps (B). Blue for water soluble, red for solvent based materials. – A choice between internally and externally controlled versions. ¡ Easy cleaning For quick cleaning when the nozzle is blocked, simply reverse the nozzle (G) and blow through.

Open the catalog to page 1

GA 3000 AC IC Internal control Base plate connection details Base plate connection details Base plate connection details GA 3000 AC EC External control GA 3000 AC EC Robot Dimensions dimensions GA 3000 AC IC GA 3000 AC EC GA 3000 AC EC in mm Internal control External control Robot Height H 82 82 8 Length L 134 122 135 Width B 50 50 50 A 123.5 / 183.5 123.5 / 183.5 Ø 110 C 62,5 62,5 10 D 59 59 69 E 55 55 25 F Ø 16 Ø 16 59.8 ± 0.1 G 103 103 117 I 18 ± 0.1 18 ± 0.1 38 K 18 ± 0.1 18 ± 0.1 Ø 100 ± 0.2 Technical data Material pressure max 160 bar 160 bar 160 bar Air pressure max 6 bar 6 bar 6 bar...

Open the catalog to page 2

www.wagner-group.com Printed in Germany · Subject to modification · GB · 9122 162 · 09/2002 DHM Selection aid/ Accessories Controller variants 0380 019 0380 010 0380 001 GA 3000 AC EC GA 3000 AC EC GA 3000 AC IC Robot External control Internal control Fitting variants Direct connection See dimension table 120 mm support rod 0380 940 180 mm support rod 0380 941 Operating variants Material circulation without sealing pin œ œ œ No circulation; sealing pin 0380 923 0380 923 0380 923 Filter variants No filter, operation possible œ œ œ 60 mesh 0380 930 0380 930 0380 930 100 mesh 0380 931 0380 931...
