Evobell

Product catalog summary

Introduction
The Evobell high-speed rotary atomisers, developed by WAGNER, represent a new generation of technology designed to meet increasing demands for surface finish quality across various industries. The Evobell 3000 and 3500 models set new standards in surface finish, paint saving, reliability, safety, and ease of servicing.

Innovative Technology
The atomiser bell is divided into a bell and distributor, allowing quick and cost-effective adaptation to different materials. The unique distributor design facilitates optimal cleaning and flushing.

Economical Efficiency
The Evobell offers high application efficiency, exceeding 90%. It features an integral bell flushing system, a quick-change system for easy atomiser replacement, and valve blocks with no dead spaces for precise colour changes. The double valve block allows rapid colour changes, reducing downtime and costs.

Surface Finish Quality
The Evobell ensures fine atomisation and uniform paint application, with a speed range up to 70,000 rpm for optimal droplet size adjustment. This adaptability meets diverse customer requirements.

Versatility
Suitable for both solvent and water-based materials, the Evobell offers three bell sizes and various distributor variants. Its modular construction and comprehensive accessories allow customization for a wide range of applications.

Applications
The Evobell is applicable in industries such as plastics, electronics, automotive, machine tools, glass, wood, metal, toys, paper, household goods, agriculture, and more.

Technical Specifications

Evobell 3000: Ball bearing, max speed 40,000 rpm, weight 4.7 kg.
Evobell 3500: Air bearing, max speed 70,000 rpm, weight 4.9 kg.

Both models have a bell diameter range of 36-70 mm and a spray jet diameter of 70-800 mm.

Components and Accessories
Includes bells, distributors, air guides, adjustment tools, and valve blocks. The WAGNER control technology offers intelligent, modular solutions for enhancing coating system efficiency.

Conclusion
The Evobell high-speed rotary atomisers by WAGNER provide advanced, adaptable, and efficient solutions for high-quality surface finishes across a wide range of industrial applications.

Catalog excerpts

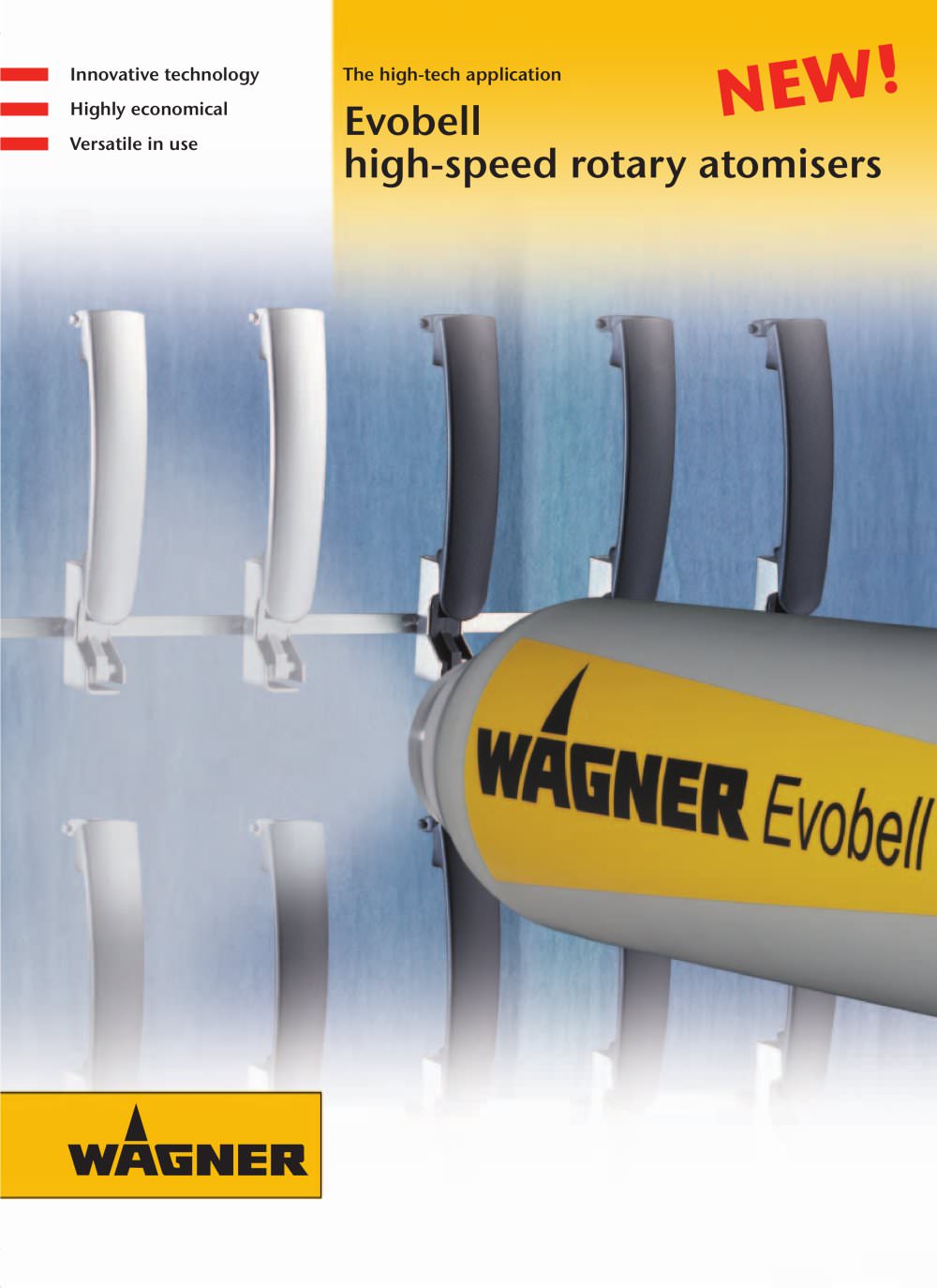

The high-tech application Evobell high-speed rotary atomisers Innovative technology Highly economical Versatile in use NEW!

Open the catalog to page 1

Evobell high-speed rotary atomiser: Evolution has a name! The demands for surface finish quality are continually increasing in many parts of industry. With the Evobell 3000 and 3500, WAGNER has developed a new generation of high-speed rotary atomisers which set new standards in the areas of surface finish, paint saving, reliability, safety and ease of servicing. With this product, which has been developed using the latest technological knowledge, you will be well-equipped for the future. WAGNER Evobell: convincing benefits! Innovative technology ¡ The atomiser bell, broken down into bell and...

Open the catalog to page 2

Excellent surface finish ¡ The Evobell is convincing thanks to its fine atomisation and uniform application of paint. ¡ The atomiser bell, designed for high quality surface finishes, provides a homogeneous film thickness with the finest atomisation. ¡ The large speed range of up to 70,000 rpm in continuous operation allows an optimal setting of the droplet size from fine to very fine. This means that the Evobell can be ideally adapted to the customer's requirements. Versatile in use ¡ For solvent and water-based materials. ¡ Three bell sizes with different distributor variants guarantee a wide...

Open the catalog to page 3

Evobell components and accessories Printed in Germany · Subject to modifications · GB · 0387801 · 6/2005 · TW Air guide Bell Distributor System controller Evobell control panel Standard valve block Double valve block Material tube Adjustment and assembly tool www.wagner-group.com Bells Available in three different diameters: 36, 50 and 70 mm (1.4, 2.0, 2.8 in.). Distributors For low to high viscosity materials, available in different versions for all bell sizes. Air guides Suitable for all bell sizes. Adjustment and assembly tools For assembly and disassembly of the bells and distributors and...

Open the catalog to page 4
