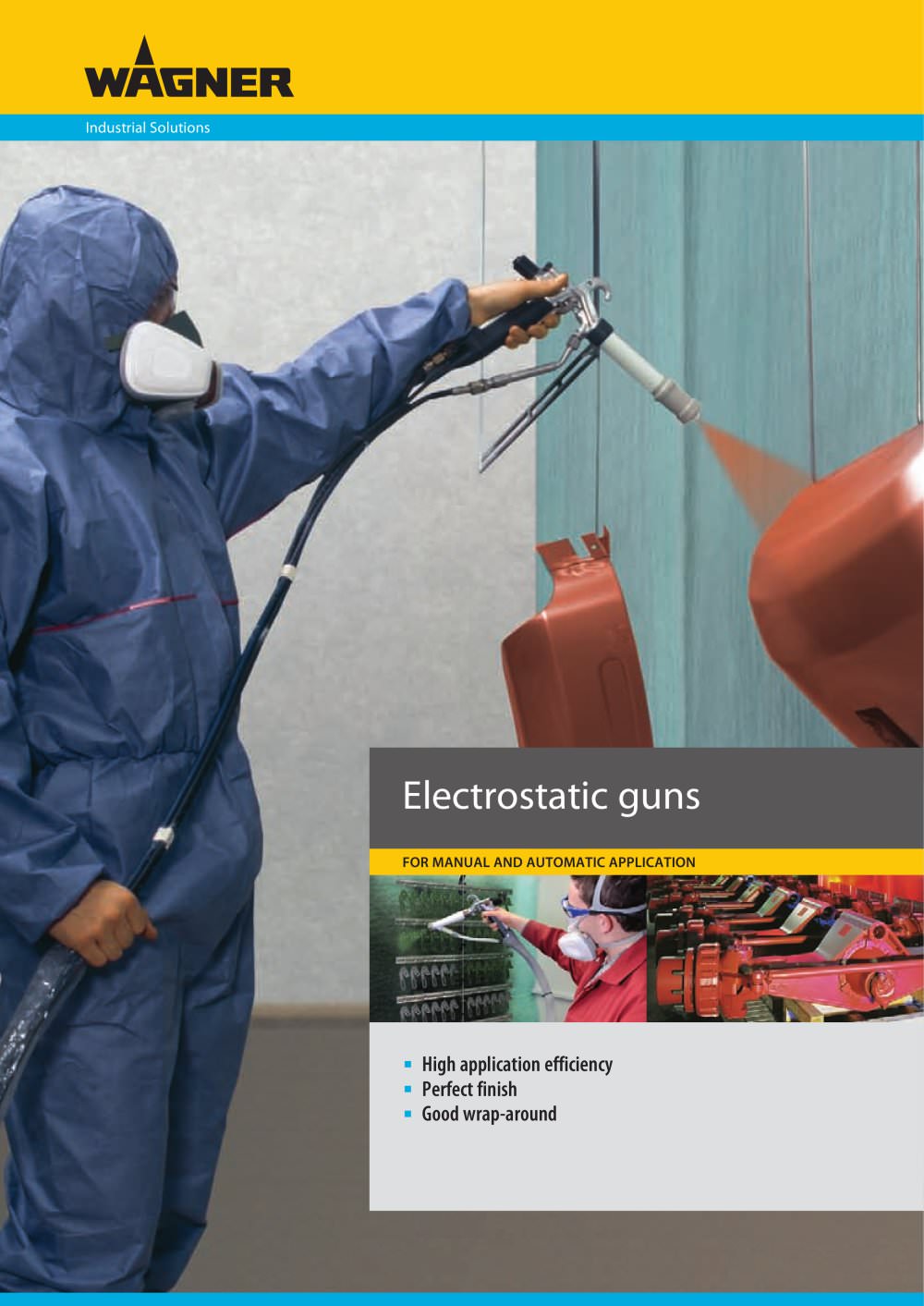

Industrial Solutions Electrostatic guns For manual and automatic application High application efficiency Perfect finish Good wrap-around

Open the catalog to page 1

Electrostatic liquid application WAGNER’s electrostatic atomization processes are highly economical coating systems, offering decisive advantages over conventional application techniques in many areas of industry. Technology for any application Whether it’s a “manual operation” or a process controlled automatic application – WAGNER offers the right electrostatic gun for every material and every application. High surface quality Due to the electrostatic charge (max. 80 kV), the paint particles repel each other to produce an extremely fine atomization. The uniform spray jet generates a very...

Open the catalog to page 2

AirCoat atomization: Better performance – less environmental pollution Typical for the AirCoat process is its distinctly lower paint pressure compared to the Airless process, and the particularly soft and homogeneous spray jet due to the feed of additional atomizing air. This is provided by the central air feed (air cap) located immediately adjacent to the nozzle hole and that surrounds the sprayed medium like a sheath. Additional advantages are its high coating speed and low overspray. Benefits at a glance: Excellent surface finish High coating speed Reduction in overspray Uniform...

Open the catalog to page 3

Gm 2800Ea Gm 2000Eac Gm 2900EaW* Gm 2900EacW* W W W Suitable for all solvent-based paints (even low resistance types, e.g. metallics) with a specific paint resistance of more than 50 kOhm (on the WAGNER scale). The unit is equipped with a detachable nozzle system and offers more protection against backspraying. Controller VM 200 or VM 2000 Universal manual air atomizing gun for water-based paints (primers, top coats, lacquers). Use in combination with AquaCoat or isolated system * Units marked with a “W” may only be used with non-flammable spraying materials to VDE 0745 part 200 (EN 50059)....

Open the catalog to page 4

W W WAGNER electrostatic automatic guns have been developed especially for automated, efficient and economical electrostatic coating in industry. All electrostatic guns for automatic application of solventbased paints are explosion protected in accordance with the ATEX guideline. II 2 G Benefits at a glance Perfect surface finish Simple maintenance and cleaning Matched control units for high process reliability and ease of operation Extensive range of nozzles (round and flat jet nozzles) Ga 2800Ea/Ga 2805Ea Suitable for all solvent-based paints (even low resistance types, e.g. metallics)...

Open the catalog to page 5

Comply more easily with the VOC guideline by switching to more environmentally friendly water-based paints. With the new AquaCoat® system, WAGNER has developed a system, which with its sophisticated technology and extensive combination of safety precautions offers optimal protection for the user. High level of safety The central control unit regulates and controls all functions of the AquaCoat® system. During application, access to the interior of the device is blocked mechanically. The most important safety systems are present in duplicate, thus eliminating a source of danger to the user....

Open the catalog to page 6

Individually tailored to meet customer needs in the processing of water-based paints If you need large paint volumes, e.g. from 200 l vats, if you need to use several colors simultaneously or if you need a mixing and dosing system for processing 2K or 3K paints, then a system can be planned to meet your specific requirements. As a system partner of industry in surface technology, even larger systems can be implemented easily with the AquaCoat® technology. When implementing customized solutions, we focus on safety and process reliability, ease of operation and maintenance, and the optimal...

Open the catalog to page 7

www.wagner-group.com Printed in Germany · Subject to modifications · AME · 9122343 · 04/2010 EpG 3000 Vm 200 Vm 2000 Controllers for manual applications VM 200 for solvent-based paints Protection class IP 54 VM 2000 for solvent-based paints Separate displays for High voltage kV (set point, adjustable) Spraying current ìA (actual value when spaying) Spraying current limit: max. 100 ìA Grounding check Fault displays Adjustable voltage Gun cable length up to 40 m without power loss Protection class IP 54 VM 2900W for water-based paints As above, but three air pressure regulators and pressure...
