Cobra® 40-10

Cobra® 40-10
8Pages

Catalog excerpts

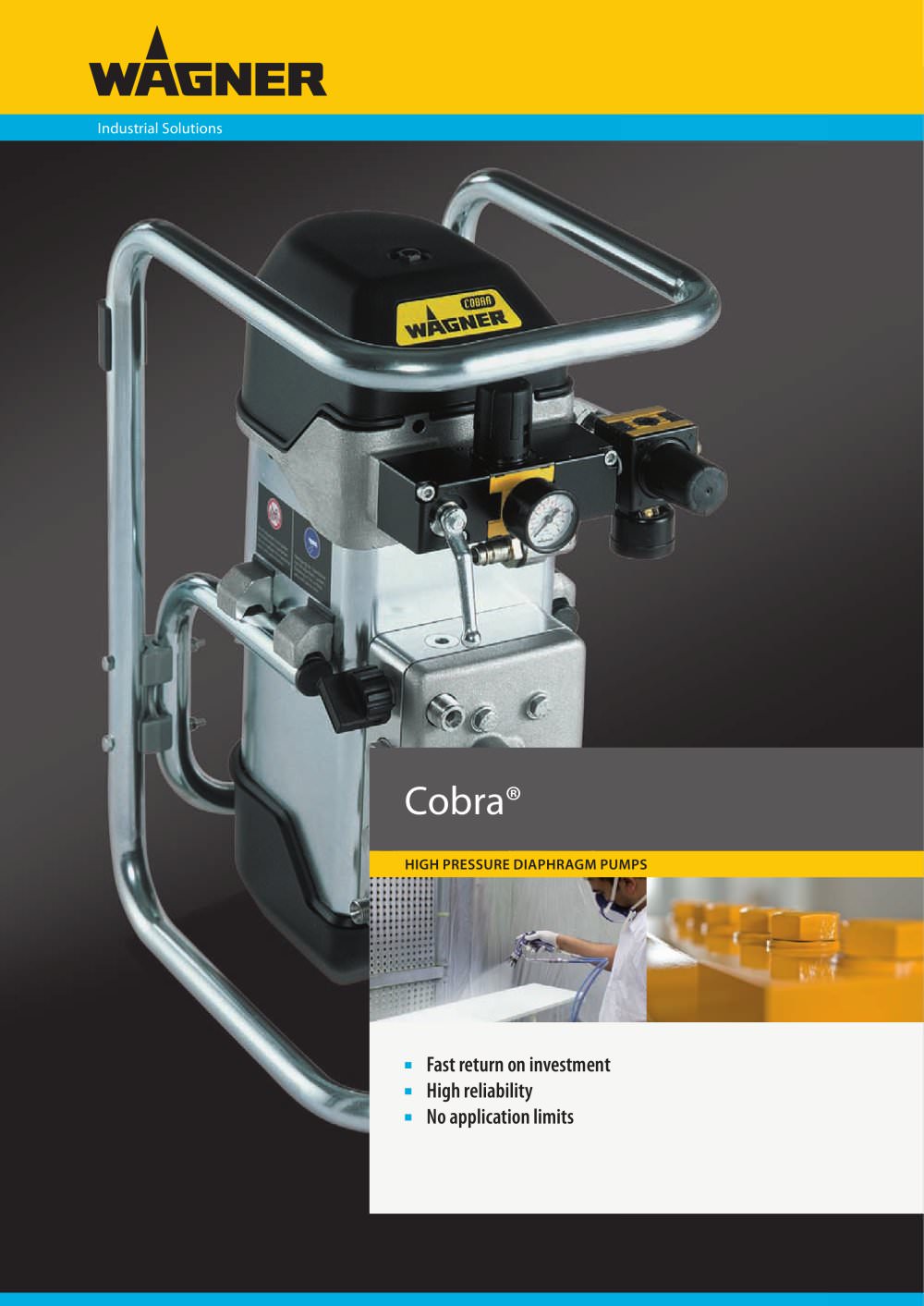

Industrial Solutions ¡¡ Fast return on investment ¡¡ High reliability ¡¡ No application limits High pressure diaphragm pumps Cobra®

Open the catalog to page 1

1 2 3 4 6 5 Great benefits WAGNER Cobra® Cobra® is an exclusive high pressure double diaphragm pump suitable for Airless and AirCoat applications up to 250 bar. Cobra® is the first high pressure pneumatic pump without packing. The lack of contact between the material and the external atmosphere (the pump is completely sealed), the absence of friction in the fluid section and the minimum shear make it perfect for any kind of material including the most critical ones such as reactive paints (UV paints, isocyanates, acrylics) or highly abrasive materials. The pump works with extremely low...

Open the catalog to page 2

Cobra® Applications Cobra® 2K Cobra® 2K is the perfect solution for highly reactive 2K materials such as polyester (primer or finishing, short and long pot-life) and is ideal for applications on old-style furniture, coffins, musical instruments, and boat and yacht interiors. Cobra® 40-10 Cobra® 40-10 is the ideal solution for working with small quantities and frequent color changes – recommended for single-gun up to three-gun applications in the wood and furniture industry, small carpentry shops and joineries, and the general metal industry. Cobra® 40-10 is also ideal for feeding base or...

Open the catalog to page 3

Minimized solvent consumption. Environmentally friendly! WAGNER Cobra®: Innovative technology WAGNER Cobra® is the only high pressure pneumatic diaphragm pump on the market. The pump was specifically designed to ensure the highest reliability and the best performance. 1 A drastic reduction in solvent consumption during flushing operations thanks to its smaller displacement volume and the easy-to-clean design. 2 High reliability and low maintenance costs: special long-life diaphragms and tungsten carbide inlet valves. 3 Better finishing results: very low pulsation for consistent fluid...

Open the catalog to page 4

1 They generate a certain amount of friction heat. This limits their usage for reactive and abrasive materials. Cobra® is friction-free and can handle all critical materials. 2 They produce a high shearing effect and are therefore are not recommended for shear-sensitive materials. The shearing effect is minimized in the Cobra®. 3 They produce deep pulsations during the switch-over phase. This affects the stability of the paint flow and finishing quality. The reduced pulsation of the Cobra® ensures a constant paint flow and better finishing. 4 They achieve high delivery rates. This requires...

Open the catalog to page 5

Technical Data Cobra® Cobra® 40-10 Cobra® 40-25 Pressure ratio 40 : 1 40 : 1 Max. fluid pressure 250 bar 250 bar Volume per DS 10 cc 25 cc Max. pump speed 200 DS/min 200 DS/min Max. flow rate 2.0 l/min 5.0 l/min Weight 19 kg 32 kg Fluid outlet 3/8” NPS 3/8” NPS Cobra® 40-10 Cobra® 40-10 is the ideal solution for working with small quantities and frequent color changes – recommended for single-gun up to three-gun applications in the wood and furniture industry, small carpentry shops and joineries, and the general metal industry. Cobra® 40-10 is also ideal for feeding base or hardener for 2K...

Open the catalog to page 6

C B A B A C A Cobra 2K C B A B A C A Cobra 2K Cobra® 2K: Perfect for mixing and applying polyester Cobra® 2K is the perfect solution for highly reactive 2K materials such as polyester (primer or finishing, short and long pot-life) and is ideal for applications on old-style furniture, coffins, musical instruments, and boat and yacht interiors. In fact, due to the packing-free and no-friction construction, Cobra® 2K solves the typical problems of the traditional 2K bellows pumps, reducing drastically the maintenance costs and solvent consumption. Cobra® 2K is available on a base frame, wall...

Open the catalog to page 7

Printed in Germany · Subject to alterations · AME · 322801 · 04/2010 Expertise in application The WAGNER spray-gun program optimally combines economical coating with high surface quality. We offer manual and automatic guns for the Airless, AirCoat and air atomization processes, with or without electrostatic support or high speed rotary atomizers. WAGNER – the 2K specialist WAGNER offers a wide range of advanced mixing and dosing systems. Besides the innovative TwinControl 2K units, the FlexControl family offers additional features such as automatic color change, recipe storage, peripheral...
