C4 HiCoat

C4 HiCoat

Product catalog summary

Introduction
The document introduces the new generation of C4 HiCoat guns by Wagner, emphasizing efficiency, flexibility, and safety. These guns feature an integral high voltage cascade with a power rating of up to 100 kV, ensuring low servicing costs and extended service life.

Nozzle Types and Features

Nozzle F1: Soft cloud with a wide flat jet for flat parts, increasing the transfer rate and improving powder charging.
Nozzle F2: Dense cloud with a narrow flat jet for partial or fast coating, ensuring efficient powder application.
Nozzle F3: Fast cloud with a targeted flat jet to reduce edge build-up.
Flex-Nozzle: Variable flat jet nozzle system for uniform surface application and high transfer rate.

Gun Types

Manual Guns: Lightweight and handy, available with remote control and suitable for small quantities.
Automatic Guns: Suitable for universal use, high throughput, and robot applications, especially in plastic booths and for fast color changes.

Technological Advancements
The guns feature new safety technology to prevent high voltage breakthroughs and blowbacks, certified for Zone 21 internal coating. The high voltage cascade ensures excellent powder charging and application efficiency.

Accessories and Compatibility
Accessories include round jet nozzles for large areas, nozzle extensions for deep workpieces, and flat jet nozzles for various applications. The Corona-Star accessory reduces the orange peel effect and improves operation with high film thickness. All accessories are compatible with earlier C2 and C3 models.

Conclusion
The C4 HiCoat guns by Wagner offer advanced features for efficient and safe coating applications, with a focus on high-quality results and ease of use.

Catalog excerpts

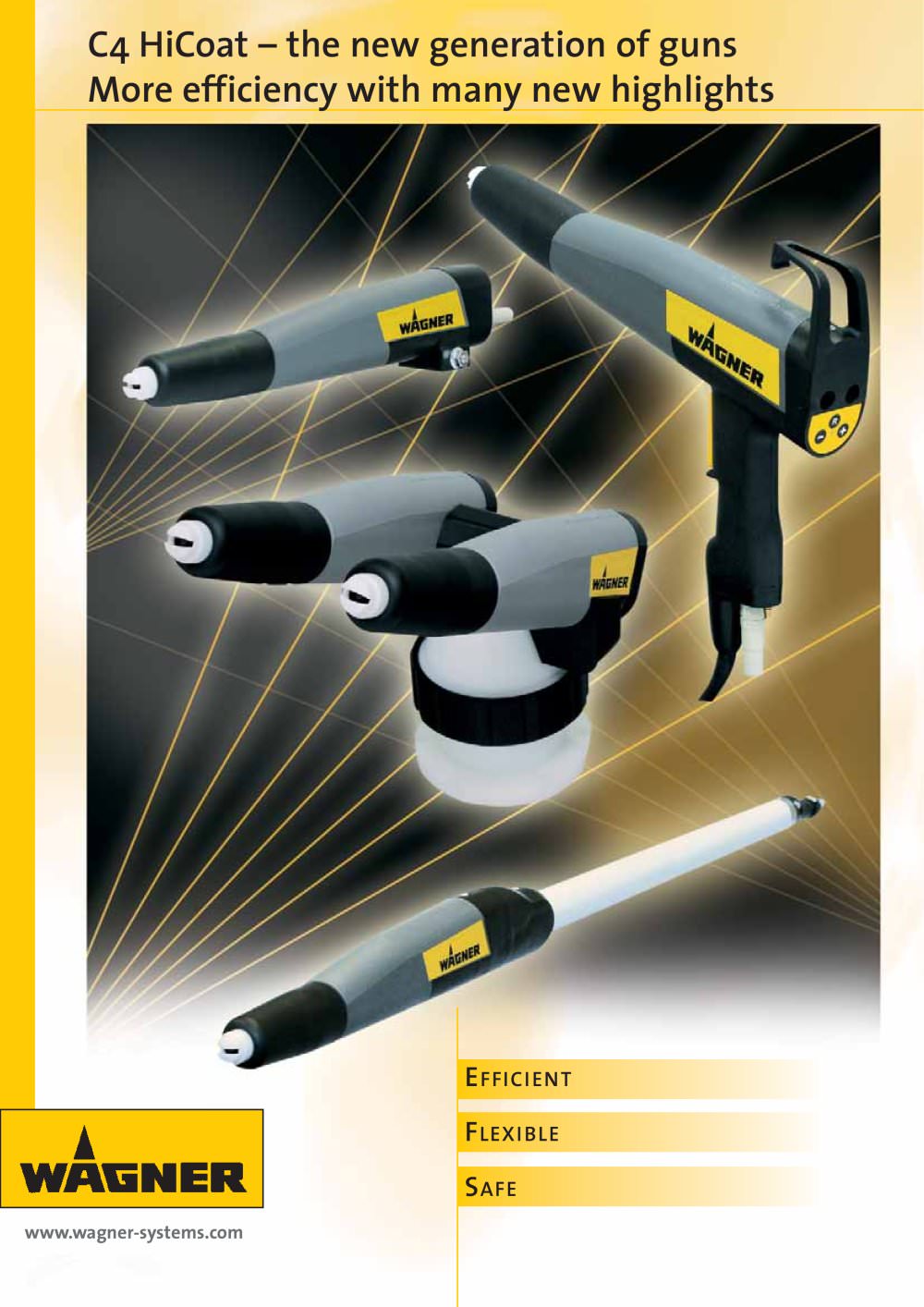

EFFICIENT FLEXIBLE SAFE C4 HiCoat – the new generation of guns More efficiency with many new highlights www.wagner-systems.com

Open the catalog to page 1

The new C4 generation of guns – the most important new items at a glance The new generation of guns from Wagner for even more efficiency and perfection. The integral high voltage cascade with a power rating of up to 100 kV works perfectly and safely. All electronic components are integrated in the robust plastic body of the gun. This means low servicing costs and a much longer service life. Nozzle F1 soft cloud with wide flat jet for flat parts Distinct increase in the transfer rate! better charging of the powder soft powder cloud atomisation selected to suit the work piece Nozzle F3 fast cloud...

Open the catalog to page 2

Best equipped for all coating tasks Super-light and handy – the electrostatic manual gun Electrostatic manual gun with remote control Powder cup gun for very small quantities Automatic gun for universal use Twin automatic gun. High efficiency with high throughput. Especially suitable for robot applications Automatic gun – particularly suitable for plastic booths and fast colour changes Electronic angle gun for special coating tasks The new C4 HiCoat manual guns The new C4 HiCoat automatic guns PEM-C4 PEM-C4 R PEM-CG4 PEA-C4 PEA-C4 XL PEA-C4 Twin PEA-C4 A The highest quality with metallic, special...

Open the catalog to page 3

J.Wagner GmbH Otto-Lilienthal-Str. 18 D-88677 Markdorf Tel. +49 (0) 7544 505-0 Fax +49 (0) 7544 505-200 J.Wagner AG Industriestraße 22 CH-9450 Altstätten/SG Tel. +41 (0) 71 7572211 Fax +41 (0) 71 7572222 www.wagner-systems.com Printed in Germany • Subject to changes • GB • 9122 703 • 10/05 Corona gun accessories Round jet nozzles R20, R28, R38 for large areas and uniform film thickness distribution Nozzle extension 300/150 mm best suited for coating deep work pieces Flat jet nozzles F1, F2, F3 for various areas of application Conversion made easy Our new accessories fit on all earlier models...

Open the catalog to page 4
