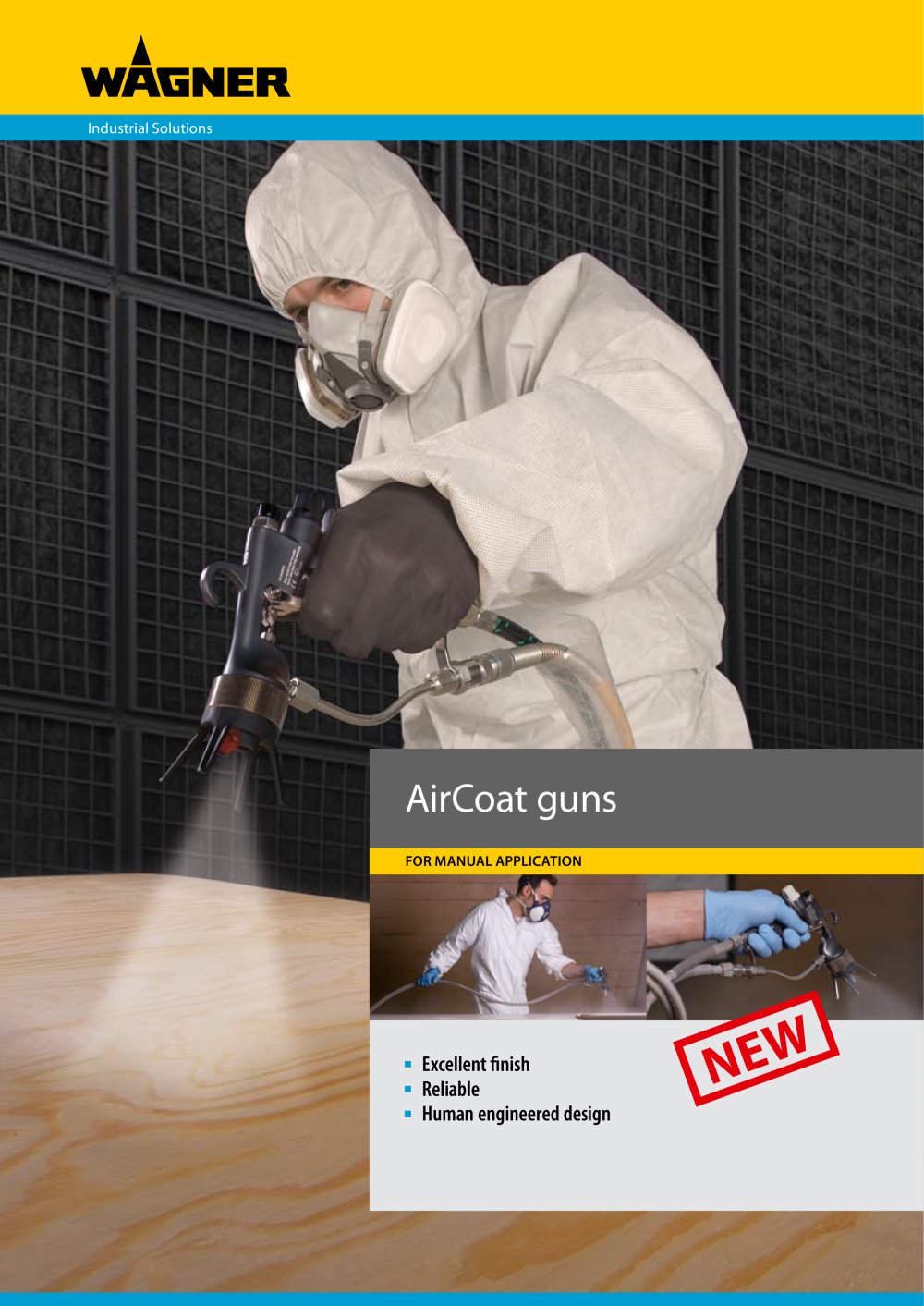

Industrial Solutions NEW Excellent finish Reliable Human engineered design AirCoat guns FOR MANUAL APPLICATION

Processable materials Stains Solvent- and water-based paints Clear coats and lacquers Epoxy primers and paints 2K materials High solid materials UV paints Application areas Wood and furniture industry Corrosion protection Steel industry Agricultural machinery Commercial vehicles AirCoat technology for premium surfaces RELIABLE GUN OPERATION FOR THE SMOOTHEST WORKFLOW With a forged aluminum gun body and a robust component design, the new AirCoat guns are made to last even under the roughest of production conditions. A NEW DIMENSION OF FINISH EXCELLENCE The new WAGNER air guidance system with...

Open the catalog to page 2

Human Engineered Design for perfect handling Perfect handling was the objective in developing this unique gun line with two different gun sizes. Both AirCoat guns were designed with the comfort of the operator in mind. Ergonomic interaction is enhanced because the gun is lighter and requires less trigger and holding force, thus reducing operator fatigue considerably. Ultra light gun GM 4100AC Technical data GM 4100AC Height 206 mm / 8.1 inch Length 173 mm / 6.8 inch Weight 437 g / 15.4 oz Max. air inlet pressure 8 bar / 0.8 MPa / 120 psi Max. material pressure 160 bar / 16 MPa / 2320 psi...

Open the catalog to page 3

Add-ons and accessories WAGNER offers a multitude of different accessories to adapt its products to customer requirements. A perfect add-on: FlexControl plus is an electronic mixing and dosing system with a broad range of applications. It is very easy to use and allows the incorporation of peripheral equipment. Printed in Germany · Subject to alterations · AME · 9124131 · 05/2008 Further information and a wide selection of accessories such as air caps, nozzles and hoses can be found in the Complete WAGNER Catalog. www.wagner-group.com High quality Spraypacks WAGNER offers a large selection...

Open the catalog to page 4
