TSE 1.0 Tube Squaring Machine

TSE 1.0 Tube Squaring Machine

Product catalog summary

Overview of TSE 1.0 Tube Squaring Machine
The TSE 1.0 Tube Squaring Machine is designed for precise machining of tubes, offering features that ensure accuracy and ease of use. It is ideal for contractors, fabricators, and maintenance departments involved with high purity tubing work.

Special Features

Micrometer Index Gauge for precise length machining.
Stainless steel collets that grip tubes firmly without deformation.
Cutter Window for clear visibility during operation.
Exclusive tooling design that channels chips away from the cut.

Operation and Setup

Hand tensioning system for automatic centering and squaring of tubes.
Linear feed design for smooth in-feed and excellent control.
Trigger-activated, variable speed electric motor for convenience.
Quick release of collet tension for immediate tube removal.

Machining Specifications

Capacity: Tubes from 1/8" (3.175 mm) to 1" (25.4 mm) O.D.
Materials: Suitable for all materials.
Wall Thickness: .010" (.25 mm) to .120".
Tool RPM: 0 to 600 RPM, variable.
Weight: 8 lbs (3.62 kg).
Dimensions: 15" long, 7" high, 3" wide.

Tooling and Accessories

Standard and optional tool bits for various materials including stainless steel, titanium, and Inconel.
Optional bench mount system for converting to a bench-mounted machine.
17 collet sizes available, clearly marked for easy identification.

Additional Information

Contact: The Wachs Companies, Wheeling, Illinois.
Website: www.wachsco.com

Catalog excerpts

"Micrometer Index Gauge" for precisemachining to exact lengths. ? "Stainless steel collets" grip the tubefirmly without causing tube deformation. ? "Cutter Window" provides a clear view ofthe cut during operation. > Օ "Exclusive ToolingDesign" channelschips away from cut. ? Hand tensioning system centers and squares thetube automatically in seconds. ? Linear feed design provides the user with smoothin-feed and excellent control. ? Trigger activated, variable speed electric motor,for operator convenience. ? Once the prep is completed, the lock nut quicklyreleases collet tension for immediate tube removal. > ** MEASUREMENT PERTAINS TO 1" TUBE. VALUE CHANGES WITH TUBE SIZES size="-2">

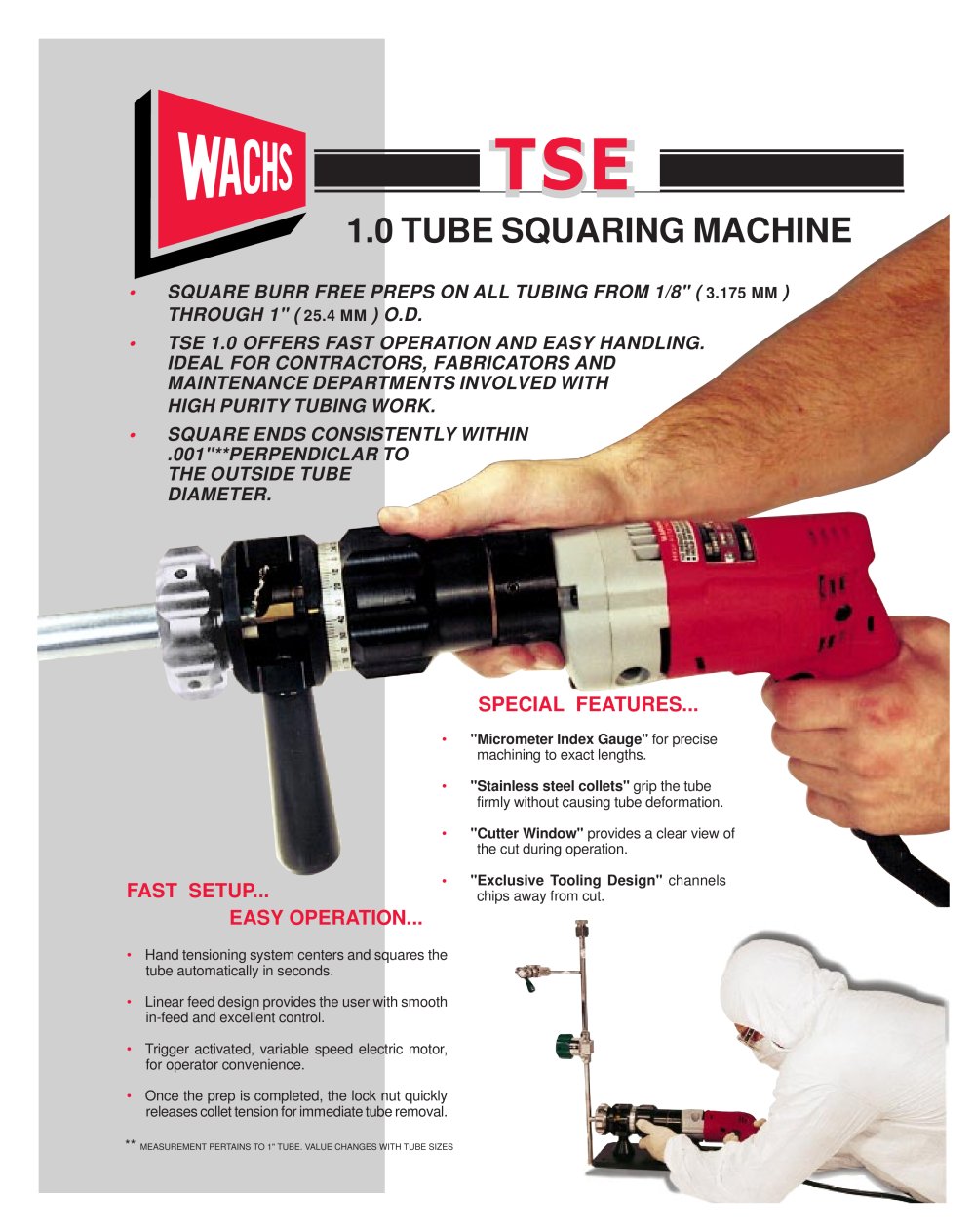

Open the catalog to page 1

MACHININGFUNCTION: SQUARE, BURR-FREE, FACING MACHINING CAPACITY: 1/8" ( 3.175 mm ) THROUGH 1" ( 25.4 mm ) O.D. TUBE MACHININGMATERIALS: ALL WALL THICKNESS: .010" ( .25 mm ) THROUGH .120" ( mm ) CLAMPINGSYSTEM: STAINLESS STEEL COLLETS WITH STAINLESS STEEL HAND RETRACT-ABLE LOCKING NUT CLEARANCERADIUS: 1-1/2" ( 38.1 mm ) FROM CENTERLINE TOOLADVANCE: HAND ADVANCEABLE & RETRACTABLE SPINDLE WITH INDEX GAUGE.245" ( 6.22 mm ) per rev. MOTOR: ELECTRIC 110 OR 220 VOLT CONTROLS: ON - OFF VARIABLE SPEED TRIGGER SWITCH TOOLING: COATED AND UNCOATED FORM TOOLS TOOL RPM: 0 TO 600 RPM, VARIABLE AXIAL FEED: .400"...

Open the catalog to page 2
