WACHS
Trav-L-Vac 300

Trav-L-Vac 300

Product catalog summary

Overview: The VAC-300 is a cost-effective vacuum system designed for water utility valve box maintenance. It is suitable for use in tight spaces, high traffic areas, and can be operated from smaller vehicles. The system is available in skid mount for pickup trucks or as a compact trailer system.

Standard Features:

Strong lifting capability with the largest capacity holding tank in its class.
2” debris inlet for quick cleanout of valve boxes and industrial spills.
Vacuum water at 100 GPM with a 5’ head and lift solids up to 25 lbs.
Integrated suction tube and hose storage, easy maintenance filtration system, and one-man operation.

Optional Features:

Trailer package with steel suction tubes of various sizes.
Light package with flashing yellow caution light and 12-volt accessory outlet.
Custom machine color options.

Specifications:

Power Source: 20 HP gasoline engine.
Blower & Air Flow: Belt drive, positive displacement rotary lobe impeller with 345 CFM at 3,600 RPM.
3 Stage Filtration: Washable filters including a 10-micron polyester cartridge.
Holding Tank: 12 cu. ft. capacity with a 2” drain plug and high liquid level shut off switch.
Dimensions: 40” wide x 60” long x 55” high, weighing 950 lbs.

Contact Information: E. H. Wachs Company, Wheeling, IL. Phone: 847-537-8800, Fax: 847-520-1147, Website: www.wachsco.com

Catalog excerpts

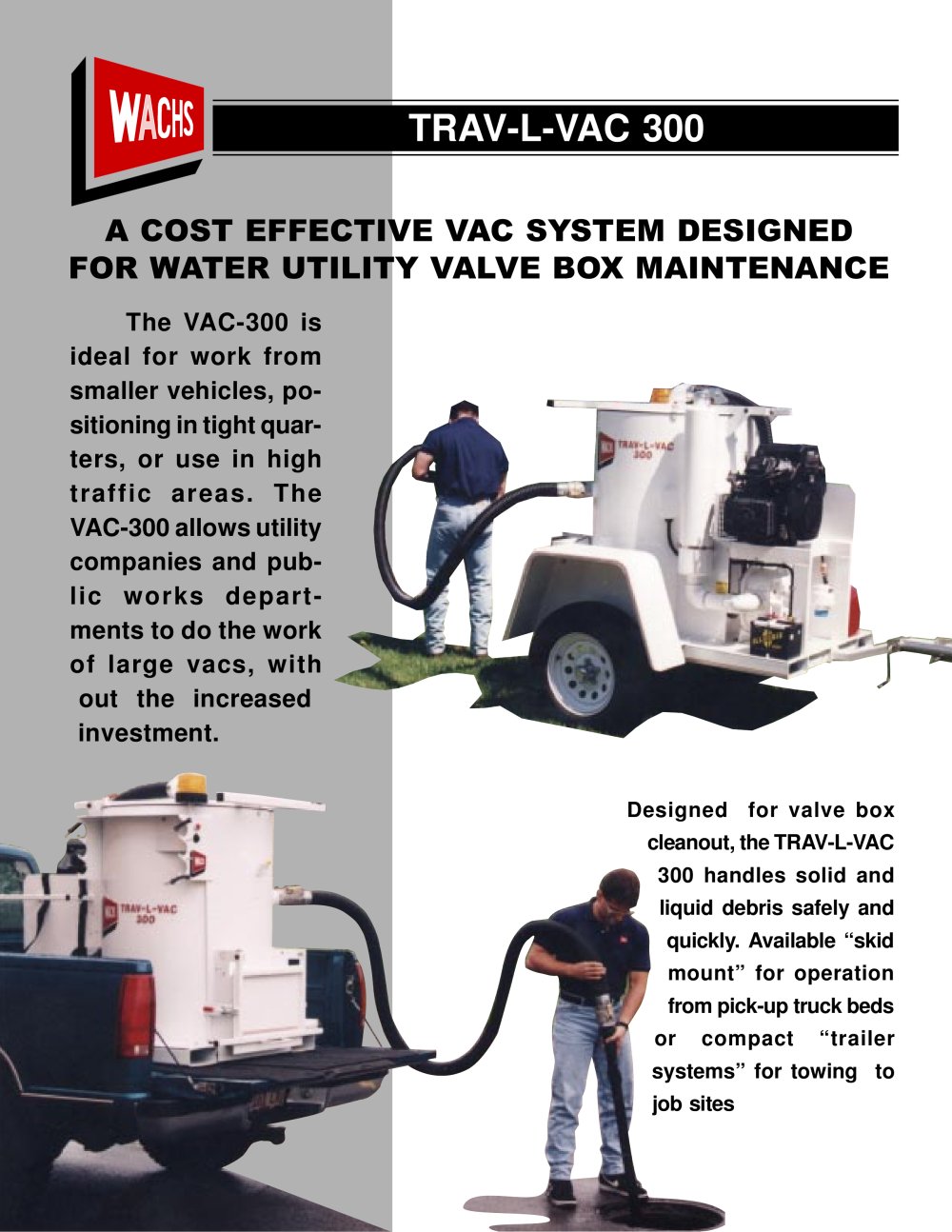

Designed for valve boxcleanout, the TRAV-L-VAC300 handles solid andliquid debris safely andquickly. Available skidmountӔ for operation from pick-up truck bedsor compact trailersystemsӔ for towing tojob sites >

Open the catalog to page 1
