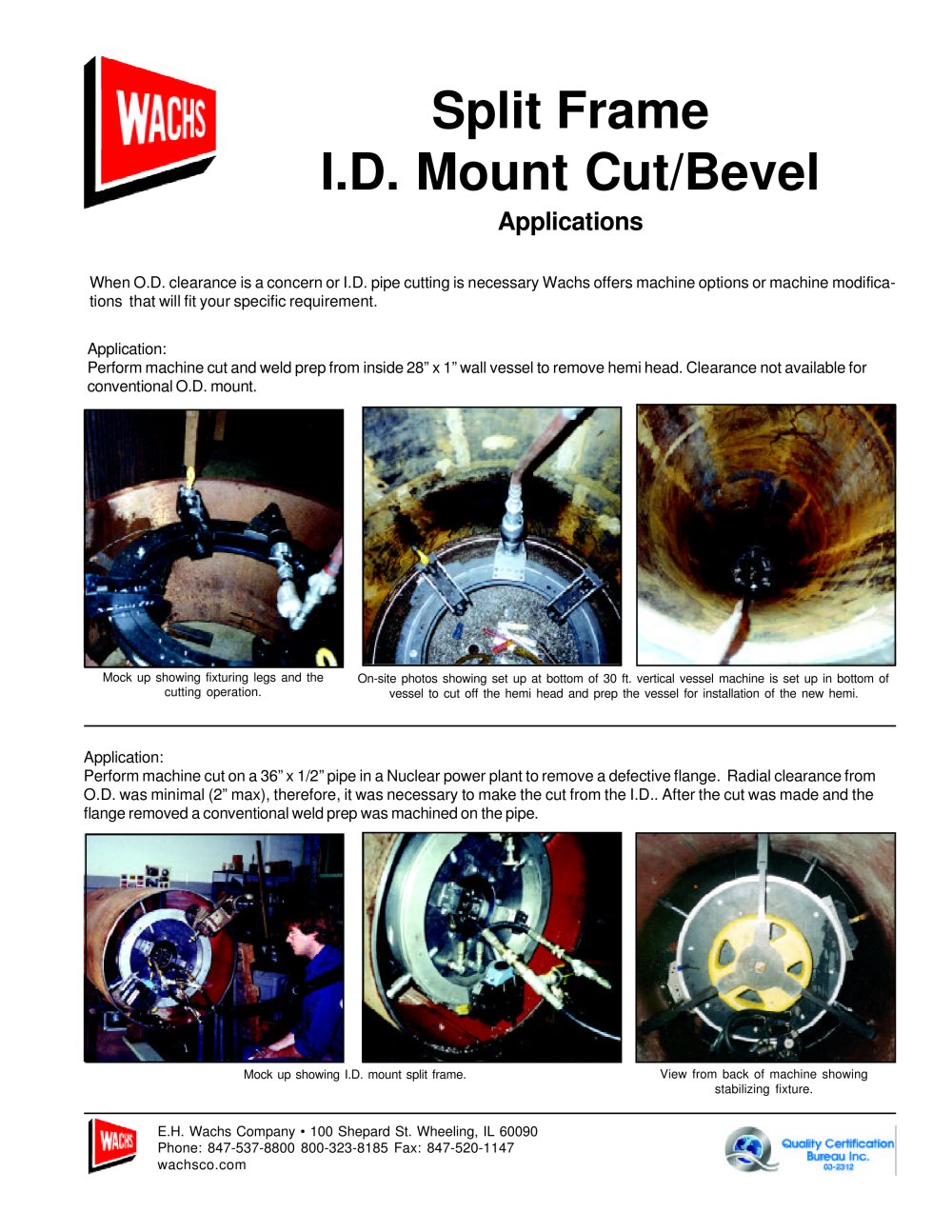

When O.D. clearance is a concern or I.D. pipe cutting is necessary Wachs offers machine options or machine modifica-tions that will fit your specific requirement. Application: Perform machine cut and weld prep from inside 28 x 1Ԕ wall vessel to remove hemi head. Clearance not available for conventional O.D. mount. Application:Perform machine cut on a 36 x 1/2Ԕ pipe in a Nuclear power plant to remove a defective flange. Radial clearance from O.D. was minimal (2 max), therefore, it was necessary to make the cut from the I.D.. After the cut was made and theflange removed a conventional weld prep was machined on the pipe. > Mock up showing fixturing legs and thecutting operation.On-site photos showing set up at bottom of 30 ft. vertical vessel machine is set up in bottom ofvessel to cut off the hemi head and prep the vessel for installation of the new hemi. Mock up showing I.D. mount split frame.View from back of machine showingstabilizing fixture. E.H. Wachs Company ? 100 Shepard St. Wheeling, IL 60090Phone: 847-537-8800 800-323-8185 Fax: 847-520-1147 wachsco.com size="-1">
