Flange Facing Model FF 313

Flange Facing Model FF 313

Product catalog summary

Overview: The document describes a fitting squaring machine designed for precise end finishing on fittings and tubes, ideal for high purity tube fabrication where automatic welding is used. It highlights the machine's features, specifications, and optional equipment.

Key Features:

Micrometer Index Gauge: Ensures precise machining to exact lengths with lathe-like accuracy.
180˚ Cutter Window: Provides a clear view of the cut during operation.
Exclusive Tooling Design: Channels chips away from the electropolished tube interior.
Bench Mount System: Quickly removable for in-line applications, suitable for congested tube racks.

Specifications:

Machining Capacity: 1/8" (3.18 mm) to 1" (25.4 mm) O.D. tube.
Machining Function: Burr-free squaring and facing.
Wall Thickness: .010" (.25 mm) to .250" (6.35 mm).
Clamping System: Features two clamp shoes with a hand retractable locking knob.
Tool RPM: 0 to 600 variable.
Weight: 8 lbs. (3.62 kg).
Dimensions: Length 15" (381 mm), Height 7" (177.8 mm), Width 3" (76.2 mm).

Standard and Optional Equipment:

Standard: Electric FSE machine with stand, operating tools, and manual.
Optional: Various clamp shoes, tool bits, storage case, cordless rechargeable electric drive motor, right angle adaptor.

Tooling: Standard tool bits are available for a range of tubing materials, including stainless steel, titanium, and Inconel. Tool bit adjustment is quick and easy, ensuring long life and smooth, burr-free cuts.

Clamping System: Features a quick lock down and release system, ideal for volume applications. The O.D. mount prevents contact damage to the electropolished tube interior.

Micrometer Index Gauge: Allows for fast, precise machining to exact cut lengths. The index gauge provides precise control when maintaining exact tube length dimensions.

Contact Information: The Wachs Companies, 100 Shepard St., Wheeling, Illinois 60090. Phone: (847) 537-8800, Fax: (847) 520-1147, Website: www.wachsco.com

Catalog excerpts

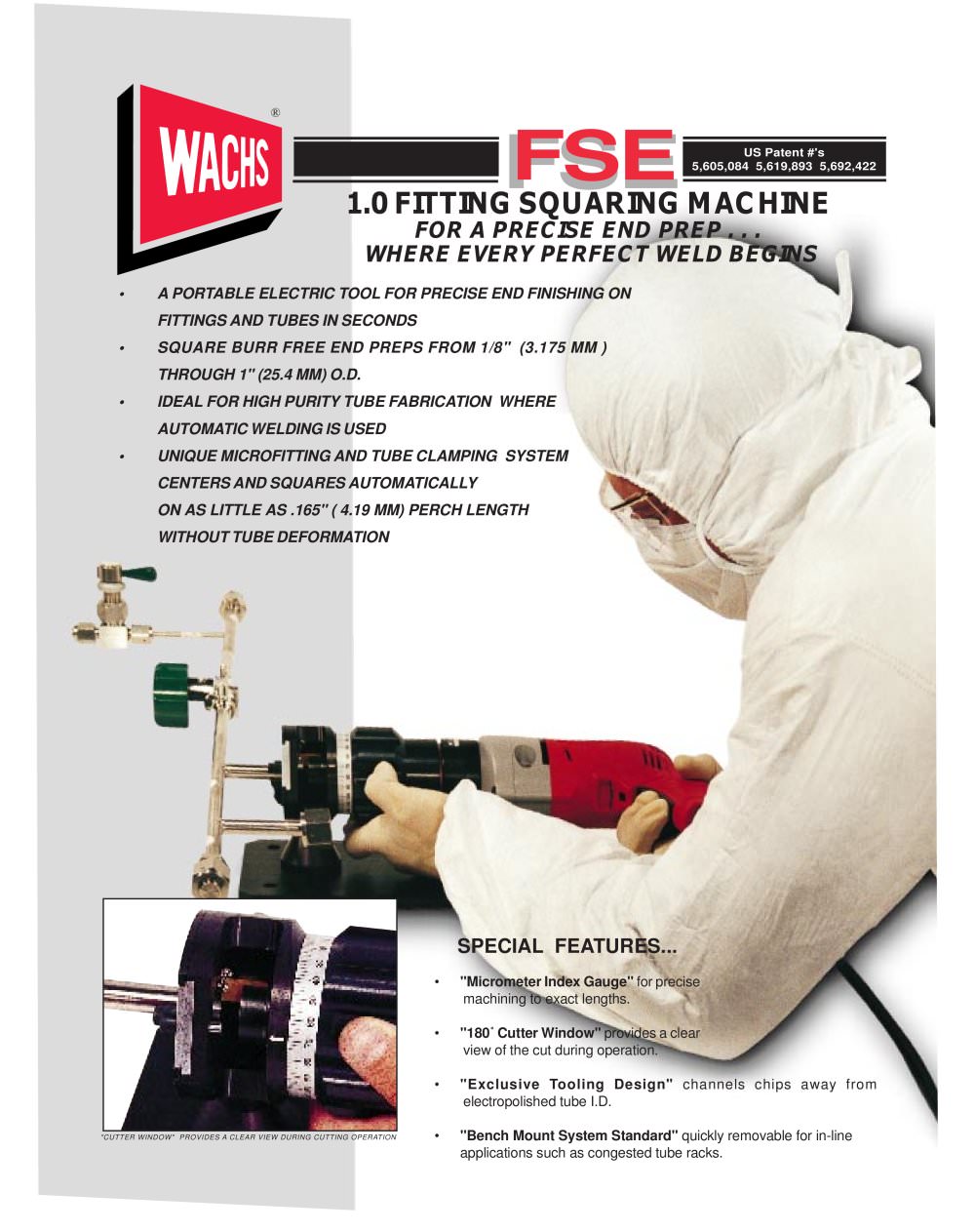

Օ "Micrometer Index Gauge" for precisemachining to exact lengths.? "180˚ Cutter Window" provides a clearview of the cut during operation.? "Exclusive ToolingDesign" channels chips away fromelectropolished tube I.D.? > "CUTTER WINDOW" PROVIDES A CLEAR VIEW DURING CUTTING OPERATION "Bench Mount System Standard" quickly removable for in-lineapplications such as congested tube racks. >
