Sine-Cosine Encoder ■ Shaft Bore Diameter from 30 to 45 mm [1 1/4” - 1 3/4”] Supply Voltage Vcc Current Consumption (no load) Output Circuit Pulse Frequency Short Circuit Protection Reverse Polarity Protection per Channel Output Signals 5 VDC, 8 to 30 VDC Max. 40 mA Analog Line Driver Max. 100 kHz 100 % Material Body & Cover Material Shaft Max. Speed Mass Moment of Inertia Starting Torque (at 25°C) Max. Loading on Shaft Shock Resistance (6ms) Vibration Resistance (55-2000 Hz) Protection Class (DIN EN Operating Temperature Aluminum Steel Stainless 6000 RPM 350 ■ 10-6 kgm2 (Optional: Special Option SHT0) All information without guarantee, errors and changes reserved / REV001. Stand 10/2025

Sine-Cosine Encoder Geometry Dimension in mm (drawing available as: dxf-,iges-, step-,sld-file) Different Bore Diameters (D) Available—see ordering code All information without guarantee, errors and changes reserved / REV001. Stand 10/2025

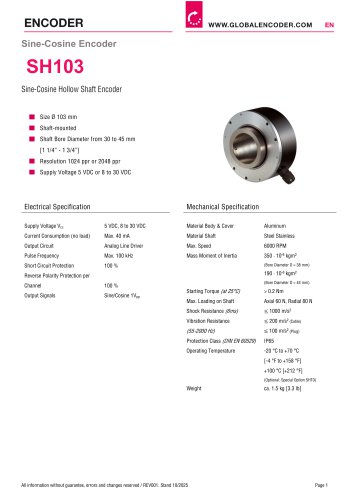

Sine-Cosine Encoder SH103 Sine-Cosine Hollow Shaft Encoder Ordering Code a. = Group Function SH = Sine-Cosine Hollow Shaft Encoder d. = Mechanical Option 0 = None 1 = Stainless Steel P = Tether/Clip Mounted to Front Side 9 O’clock R = Tether/Clip Mounted to Front Side 12 O’clock S = Tether/Clip Mounted to Front Side 3 O’clock g. = Output Signals I = A + B + Z (Sin/Cos, 1 VPP) C = A + B+ Z + A\ + B\ + Z\ (Sin/Cos, 1 VPP) b. = Basic Series Number 103 e. = Connection Type 0 = 2 m Cable [6`] 6 = 9 Pin D-Sub Plug 7 = 12 Pin M23 Plug 9 = 10 Pin MIL Plug (3102) h. = Output, Supply Voltage 1 = 5 VDC...

Sine-Cosine Encoder SH103 Sine-Cosine Hollow Shaft Encoder Accessories SH103 Mounting Clip and Pin Mating Connector/Female Plug KD-12-M23 – Mating Connector/Female Plug 12 Pin M23 KD-9-DSub – Mating Connector/Female Plug 9 Pin D-Sub KD-10-MIL – Mating Connector/Female Plug 10 Pin MIL All information without guarantee, errors and changes reserved / REV001. Stand 10/202
