W+S Meßsysteme GmbH
Datasheet RH965 (EN)

Datasheet RH965 (EN)

Product catalog summary

Overview: The RH965 is a redundant/dual incremental hollow shaft encoder designed for industrial applications. It features a US size industry standard of 96.5mm (3.8") and is shaft-mounted with a bore diameter ranging from 12.7 to 25.4 mm (½” to 1”). The encoder is equipped with an electrically isolated redundant reading system and offers resolutions from 1 to 2500 pulses per revolution (ppr).

Electrical Specifications: The encoder operates with a supply voltage of 5VDC, 4.75-30 VDC, or 8-30 VDC input with a 5 VDC output. It has a maximum current consumption of 40 mA (no load) and supports output circuits such as Push-Pull, TTL, and RS422A compatible. The pulse frequency can reach up to 300 kHz, with signal levels of Vcc – 0.7 V (high) and a maximum of 0.3 V (low). It includes short circuit and reverse polarity protection, with ESD and burst protection levels of 8 kV and 2 kV respectively.

Mechanical Specifications: The encoder's body and cover are made of aluminum, while the shaft is stainless steel. It supports a maximum speed of 6000 RPM and has a mass moment of inertia of 96 · 10^-6 kgm² for a bore size of 25mm. The starting torque at 25°C is greater than 0.04 Nm, with axial and radial shaft loading capacities of 120N and 100N respectively. It is designed to withstand shock resistance up to 1000 m/s² and vibration resistance up to 100 m/s². The protection class is IP65, with an operating temperature range of -20° to +70°C (-4° to +158°F), and an optional special high-temperature option up to +100°C (+212°F). The encoder weighs approximately 0.75 kg (1.65 lb).

Output Signals: The encoder provides various output signal configurations, including A + B + Z and A + B + Z + A\ + B\ + Z\.

Ordering Code: The ordering code includes options for group function, basic series number, shaft size, mechanical options, connection type, connector location, output signals, supply voltage, and resolution. Special functions and designs are designated by a code (Sxxx).

Connection and Pinout: The encoder uses an 8 Pin M12 A-code or 5 Pin M12 A-code for connections, with specific pin functions and cable color codes provided.

Accessories: Available accessories include isolation bushings and a tether kit, with various sizes to accommodate different shaft diameters.

Catalog excerpts

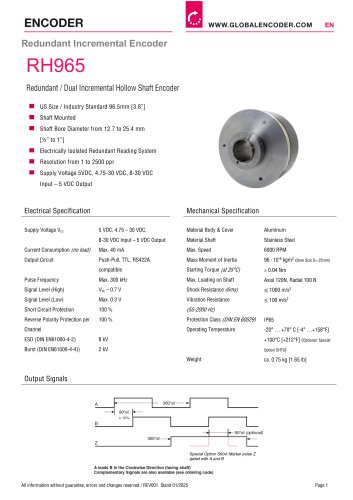

Redundant Incremental Encoder ■ US Size / industry Standard 96.5mm [3.8”] ■ Shaft Bore Diameter from 12.7 to 25.4 mm [%” to 1”] ■ Electrically isolated Redundant Reading System ■ Supply Voltage 5VDC, 4.75-30 VDC, 8-30 VDC input - 5 VDC Output Current Consumption (no load) Output Circuit Pulse Frequency Signal Level (High) Short Circuit Protection Reverse Polarity Protection per Channel Material Body & Cover Material Shaft Max. Speed Mass Moment of inertia Starting Torque (at 25°C) Max. Loading on Shaft Shock Resistance (6ms) Vibration Resistance (55-2000 Hz) Protection Class (DIN EN 60529) Operating Temperature Aluminum Stainless Steel 6000 RPM +100°C [+212°F] (Optional: Special Option SHT0) All information without guarantee, errors and changes reserved / REV001. Stand 01/2025

Open the catalog to page 1

Redundant Incremental Encoder RH965 Redundant / Dual Incremental Hollow Shaft Encoder Geometry Dimension in mm (drawing avialable as: dxf-,iges-,step-,sld-file) Bore Size Diameter D see ordering code Ordering Code a. = Group Function RH = Redundant Incremental Encoder b. = Basic Series Number 965 c. = Shaft Size Selectable from 12.7 to 25.4 mm [½“ to 1“] AC = ½“ AG = ¾“ AL = 1“ d. = Mechanical Option 0 = none 1 = Stainless Steel (V4A/IP67) e. = Connection Type 0 = 2 m Cable [6`] B = 5 m Cable [16.5`] P = 5 Pin M12 A-code Q = 8 Pin M12 A-code h. = Output, Supply Voltage 1 = TTL, 5 VDC 3 = Push-Pull,...

Open the catalog to page 2

Redundant Incremental Encoder RH965 Redundant / Dual Incremental Hollow Shaft Encoder Connection Function Cable Color Code white brown green yellow grey pink blue red Accessories RH 965 Isolation Bushing IB965-25.4/12 – Isolation Bushing Series 965 from 25.4 mm [1”] All information without guarantee, errors and changes reserved / REV001. St

Open the catalog to page 3
