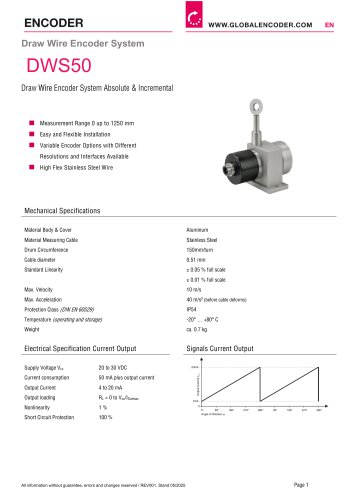

Draw Wire Encoder System ■ Easy and Flexible Installation ■ Variable Encoder Options with Different Resolutions and Interfaces Available ■ High Flex Stainless Steel Wire Material Body & Cover Material Measuring Cable Drum Circumference Cable diameter Standard Linearity Temperature (operating and storage) Aluminum Stainless Steel 150mm/turn 0.51 mm ± 0.05 % full scale ± 0.01 % full scale 10 m/s 40 m/s2 (before cable deforms) IP54 Signals Current Output Supply Voltage Vcc Current consumption Output Current Output loading Nonlinearity Short Circuit Protection 20 to 30 VDC 50 mA plus output current All information without guarantee, errors and changes reserved / REV001. Stand 05/2025 Page 1

Draw Wire Encoder System Electrical Specification Voltage Output Short Circuit Protection 100 % Electrical Specification Incremental Output Signals Voltage Output Signals Incremental Output Supply Voltage Vcc Current consumption (no load) Output Circuit Pulse Frequency Signal Level (high) Short Circuit Protection ESD (DIN EN61000-4-2) All information without guarantee, errors and changes reserved / REV001. Stand 05/2025 Page 2

Draw Wire Encoder System DWS50 Draw Wire Encoder System Absolute & Incremental Connections Function Current Output Cable Color Code white brown green Function Voltage Output Cable Color Code white brown green Function Incremental Output Cable Color Code white brown green yellow grey pink blue red All information without guarantee, errors and changes reserved / REV001. Stand 05/2025

Draw Wire Encoder System DWS50 Draw Wire Encoder System Absolute & Incremental Geometry Dimension in mm (drawing available as: dxf-,iges-,step-,sld-file) All information without guarantee, errors and changes reserved / REV001. Stand 05/2025

Draw Wire Encoder System Ordering Code a b c d a. = Group Function DWS = Draw Wire System I = Incremental C = Analog Current Output V = Analog Voltage Output Sxxx b. = Basic Series Number 3 = 5 Pin M16 Plug P = 5 Pin M12 Plug (A-code) Q = 8 Pin M12 Plug (A-code) 8 = 8 Pin M16 Plug i. = Output Circuit Type 3 = Push-Pull 4.75 to 30 VDC 5 = Push-Pull 8 to 30 VDC P = Analog Output 20 to 30 VDC Incremental: 1 to 5000 ppr available 00001 = 1 ppr, 5000 = 5000 ppr Current Output & Voltage Output: 0 = ± 0.01% full scale (standard) H = 4 - 20 mA Analog Current Output I = 0 - 10 V Analog Voltage Output...
