Datasheet CH360 (EN)

Product catalog summary

Mechanical Specifications:

The device is a shaft-mounted, compact construction encoder designed for 3-phase commutation signals in DC motors.
It operates at a maximum frequency of 200 kHz and supports a maximum speed of 6000 RPM.
The encoder features a hollow shaft with sizes available in 06 mm, 08 mm, and 10 mm.
It is constructed with an aluminum body and a stainless steel shaft, weighing 130 g (0.27 lb).
Protection is rated at IP 65, with operational temperatures ranging from -20°C to +70°C, and an optional maximum of +100°C.

Electrical Specifications:

The encoder operates with a supply voltage of 5 - 28 VDC and a current consumption of 100 mA max.
Output signals are provided in Push-Pull, RS 422A format, with a maximum impulse frequency of 300 kHz.
Signal levels are Vcc - 0.7 Volt for high and 0.25 Volt max for low, with 100% short circuit protection.

Ordering Code:

The ordering code is structured as CH - a b c d e f g h, where each letter represents specific options such as shaft size, connection type, and output signals.
Special functions and designs are indicated by a 4-digit code at the end of the part number.

Connections:

The encoder uses a color-coded cable system for connections, with specific colors assigned to functions such as 0 Volt, + Volt, and commutation signals U, V, W.

Catalog excerpts

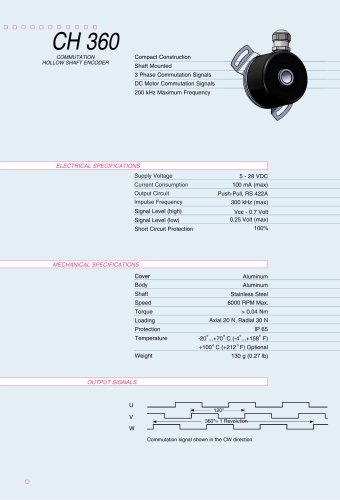

COMMUTATION HOLLOW SHAFT ENCODER Commutation signal shown in the CW directio

Open the catalog to page 1

ORDERING CODE Special functions and designs will be designated by a 4 digit code at the end of the part number. Consult factory for further details Function Cable Colour Code

Open the catalog to page 2
