W+S Meßsysteme GmbH
Datasheet AP700 (EN)

Datasheet AP700 (EN)

Product catalog summary

Overview: The document provides technical specifications for the AP 700 Absolute Encoder, designed for heavy-duty applications with CENELEC & IEC approvals. It features a robust construction with IP66/IP67 protection, suitable for harsh environments.

Specifications:

Resolution: Up to 12 Bits (4096)
Supply Voltage: 5 Volt TTL or 8 to 30 VDC
Current Consumption: 100 mA (max)
Output Circuit: Push-Pull, RS 422A
Impulse Frequency: 200 kHz (max)
Logic Levels: High - Vcc - 0.7 Volt, Low - 0.25 Volt (max)
Short Circuit Protection: 100%
Material: 316 Stainless Steel for cover, body, and shaft
Speed: 6000 RPM (max)
Torque: > 0.4 Nm
Loading: Axial 60 N, Radial 50 N
Temperature Range: -20˚...+70˚C (-4˚...+158˚F)
Weight: 1300 g (2.866 lb)

Mechanical Specifications: The encoder is designed with a shaft diameter that can be specified in the ordering code, with options for mechanical and connector configurations.

Electrical Specifications: The encoder supports Gray Code and Binary Code output signals, with a push-pull output circuit type.

Approvals/Certifications: The encoder complies with EN 50014 1197 E incl. A1+A2 and EN 50018 2000 E standards.

Output Signals: The encoder provides options for Gray Code and Binary Code outputs.

Ordering Code: The ordering code allows customization of the encoder based on shaft size, mechanical options, connector type and location, output signals, and circuit type. Special functions and designs are available upon request.

Connection Details: The document includes a color-coded cable connection guide for various functions.

Catalog excerpts

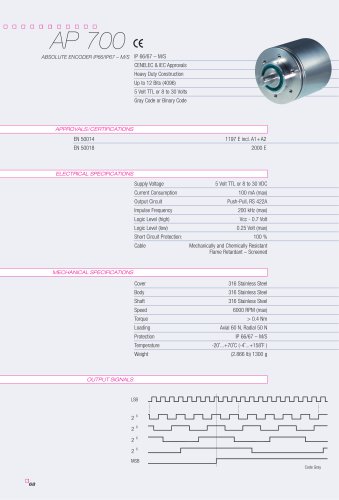

Heavy Duty Construction Up to 12 Bits (4096) 5 Volt TTL or 8 to 30 Volts Gray Code or Binary Code

Open the catalog to page 1

Drawing available as: dxf, iges, step, sld file 120° D=Shaft Diameter see ordering code ORDERING CODE Group Function AP=Absolute Encoder IP66/IP67 Connector Type 0=2 mtr. (6 ft) Cable Basic Series Number 700 Connector Location A=Axial Output Signals E=Binary <-> F=Gray <-> Output Circuit Type 1=TTL (5 VDC) 5=Push Pull 8 to 30 VDC Note: Special functions and designs will be designated by a 4 digit code at the end of the part number. Consult factory for further details Cable Colour Code Cable Colour Code
