Introduction
LeeBoy has been a leader in designing and manufacturing asphalt paving and grading products since 1964, known for quality and innovative design. Their equipment is dependable, low maintenance, and offers high resale value.

Contact Information
VT LeeBoy, Inc., 500 Lincoln County Pkwy. Ext., Lincolnton, North Carolina 28092. Website: www.leeboy.com, Phone: (704) 966-3300.

Product Overview: 1200S Asphalt Maintainer/Patcher
The 1200S is a versatile, multi-purpose road maintenance unit designed for paving professionals. It combines a rotary grinder, paving screed, shoulder building attachment, and tack tank in one unit, making it ideal for utility cut and pothole repair, roadway shoulder building, paving, road profiling, and widening.

Specifications

Engine: 74-HP Hatz Tier 3 Silent Pack Diesel Engine.
Weight: 10,400 lbs (4,717 kg).
Dimensions: Length: 12’ 10” (3.91 m), Width: 8’ 6” (2.59 m), Height: 8’ 6” (2.59 m).
Hopper Capacity: 2.5 Ton (2,268 kg).
Transmission: Variable Hydrostatic, Front-Wheel Drive.
Grinder: 24” wide, hydraulically adjustable, pivots up to 15 degrees.
Screed: Telescopes from 38” to 62”, propane heated.
Tack Tank: 100 Gal. capacity, propane burners, hydraulic driven pump.
Tires: Front: 5.70 x 8.00 (8 ply), Rear: 9.00 x 14.5 (12 ply).
Capacities: Fuel: 20 Gal., Hydraulic Reservoir: 39 Gal.

Features and Options

Adjustable, heavy-duty hydraulic towing tongue for speeds up to 45 mph.
Shoulder build-up attachment for spreading materials from 28” to 40”.
On-board tack/emulsified liquid asphalt distributor system with a 40’ hose and hand-held spray wand.
Optional features include a telescoping screed kit, light package, and traditional paving screed.

Conclusion
The 1200S Asphalt Maintainer/Patcher is designed with the paving professional in mind, offering a cost-effective solution for a wide range of roadway repairs with its durable and versatile design.

Catalog excerpts

Receiving Hopper Rotary Grinder Hydrostatic Drive Discharge Conveyor Belt Width Tack Tank Hand Wand Hydraulic Reservoir ^ili^ A company of VT Systems LeeBoy has designed and manufactured superior asphalt paving and grading products since 1964. The LeeBoy brand is well-known for its quality and innovative design, this standard of quality provides contractors with dependable, low maintenance equipment with a high re-sale value. Hatz Tier 3 Silent Pack Diesel Engine 115" (2.92 m) hopper wings open Variable Hydrostatic Front-Wheel Drive LeeBoy makes continuous We reserve the right to change specifications without notice. contain standard and optional Other Members of the LeeBoy Family of Products. 3000 Force Feed Loader Contact your LeeBoy dealer: "LeeBoy is dedicated to providing top quality parts and service support on every unit sold." VT LeeBoy, Inc. • 500 Lincoln County Pkwy. Ext. • Lincolnton, North Carolina 28092 • www.leeboy.com • (704) 966-3300 ^ill^ A company of VT Systems Asphalt Maintainer/Patcher Featured with: • 74-HP Hatz Tier 3 Silent Pack Engine • Heavy-Duty Hydraulic Towing Tongue • 100-Gallon Tack Distribution System Designed with the Paving Professional in Mind.

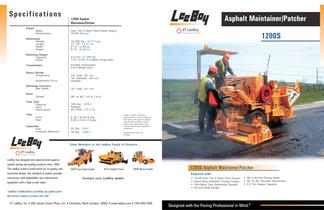

Open the catalog to page 1

Road Maintenance Versatility The 1200S Asphalt Maintainer/Patcher is a versatile, multi-purpose road maintenance unit. It features a rotary grinder, paving screed, shoulder building attachment and tack tank, all in one easy to operate unit. The 1200S Asphalt Maintainer/Patcher is a cost-effective unit that efficiently utilizes labor and makes a broad range of roadway repairs possible. Its durable design makes it ideal for utility cut and pothole repair, roadway shoulder building, paving, road profiling and road widening. heavy-duty, hydraulic tongue for tow- connected and disconnected, making...

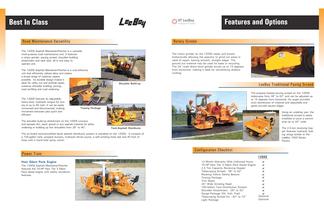

Open the catalog to page 2
